Installation

BRAKE CONTROL: SKID CONTROL ECU (for 1UR-FSE): INSTALLATION

1. INSTALL SKID CONTROL ECU ASSEMBLY

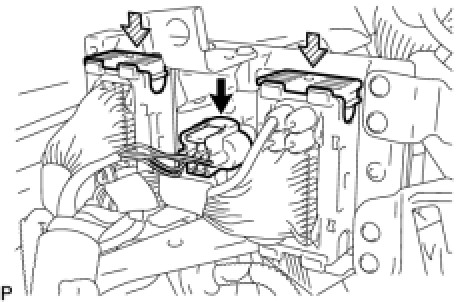

(a) Connect the 3 connectors and press the lock levers down to lock the connectors.





NOTICE:
Make sure that the lock levers securely lock the connectors.

(b) Install the skid control ECU assembly with the 3 bolts.





Torque : 17 Nm (173 kgf-cm, 12 ft-lbf)

(c) Connect the connector.

2. INSTALL ENGINE ROOM SIDE COVER LH Installation

3. CONNECT BATTERY CABLE TO BATTERY NEGATIVE TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. CHECK AND CLEAR DTC

Electronically Controlled Brake System
