1UR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P060D: Internal Control Module Accelerator Pedal Position Performance
P060D - Internal Control Module Accelerator Pedal Position Performance

MONITOR DESCRIPTION

The ECM monitors the input signals of the Accelerator Pedal Position (APP) sensor No. 1. When the input signals and control signals are deviated, the DTC is output.





MONITOR STRATEGY

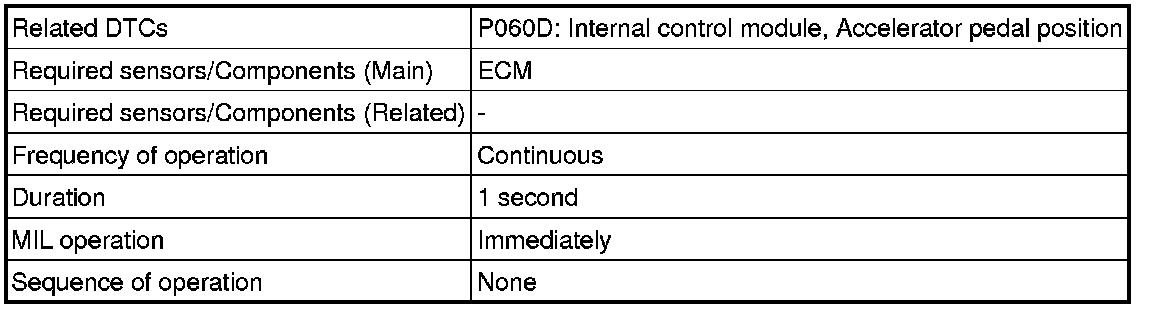

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the engine switch off and wait for 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on [A].

6. Wait 16 seconds or more.

7. Enter the following menus: Powertrain / Engine / Trouble Codes.

8. Read the DTC [B].

HINT
- If a DTC is output, the system is malfunctioning.
- If a DTC is not output, perform the following procedure.

9. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

10. Input the DTC: P060D.

11. Check the DTC judgment result.





HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result sows INCOMPLETE or UNKNOWN, perform step [A] again.

12. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

13. Check the DTC judgment result.

HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.

14. If the test result is INCOMPLETE or UNKNOWN and no DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

INSPECTION PROCEDURE

PROCEDURE

1. READ OUTPUT DTC (DTC P060D)

(a) Connect Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear DTC Reading and Clearing Diagnostic Trouble Codes.

(e) Turn the engine switch off and turn the Techstream off.

(f) Disconnect the Techstream.

(g) Disconnect the cable from the battery negative (-) terminal and wait for 1 minute.

(h) Connect the cable to the battery negative (-) terminal.

(i) Connect the Techstream to the DLC3.

(j) Turn the engine switch on (IG).

(k) Wait 16 seconds or more.

(l) Turn the Techstream on.

(m) Select the following menu items: Powertrain / Engine / Trouble Codes.

(n) Read DTCs.

Result:





B -- REPLACE ECM Components

A -- CHECK FOR INTERMITTENT PROBLEMS Check For Intermittent Problems
