P0102

1UR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0102, P0103: Mass Air Flow Circuit Low

DESCRIPTION

The Mass Air Flow (MAF) meter is a sensor that measures the amount of air flowing through the valve.

The ECM uses this information to determine the fuel injection time and to provide appropriate air-fuel ratio.

Inside the MAF meter, there is a heated platinum wire which is exposed to the flow of intake air.

By applying a specific electrical current to the wire, the ECM heats it to a given temperature. The flow of incoming air cools both the wire and an internal thermistor, affecting their resistance. To maintain a constant current value, the ECM varies the voltage applied to these components in the MAF meter. The voltage level is proportional to the airflow through the sensor, and the ECM uses it to calculate the intake air volume.

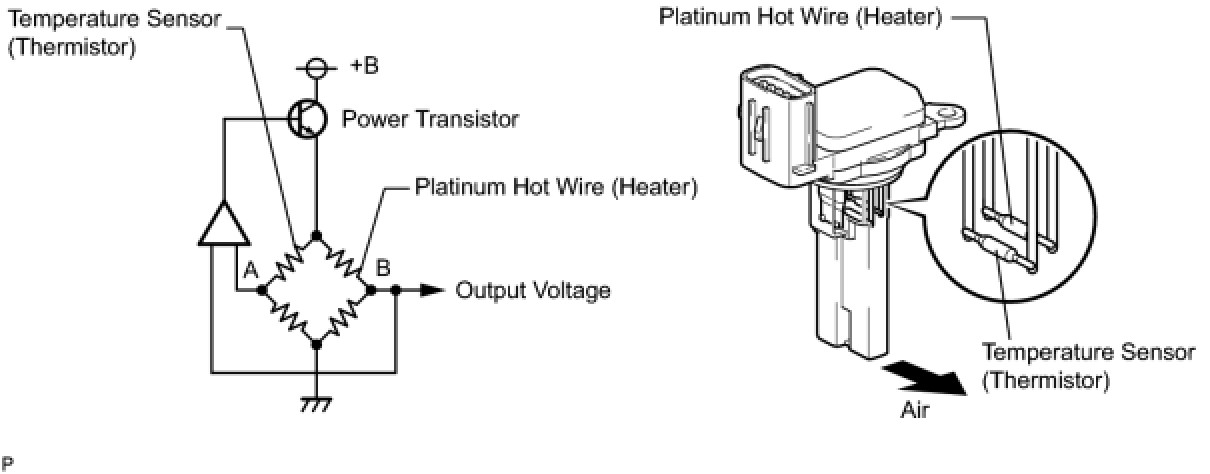

The circuit is constructed so that the platinum hot wire and the temperature sensor provide a bridge circuit, and the power transistor is controlled so that the potentials of A and B remain equal to maintain the predetermined temperature.

HINT
When any of these DTCs are set, the ECM enters fail-safe mode. During fail-safe mode, the ignition timing is calculated by the ECM, according to the engine RPM and throttle valve position. Fail-safe mode continues until a pass condition is detected.









HINT
When any of these DTCs are set, check the air-flow rate by entering the following menus: Powertrain / Engine / Data List / MAF.





MONITOR DESCRIPTION

If there is a defect in the MAF meter or an open or short circuit, the voltage level deviates from the normal operating range. The ECM interprets this deviation as a malfunction in the MAF meter and sets a DTC.

Example:

When the sensor output voltage remains less than 0.2 V, or more than 4.9 V, for 3 seconds, the ECM sets a DTC.

If the malfunction is not repaired successfully, a DTC is set 3 seconds after the engine is next started.

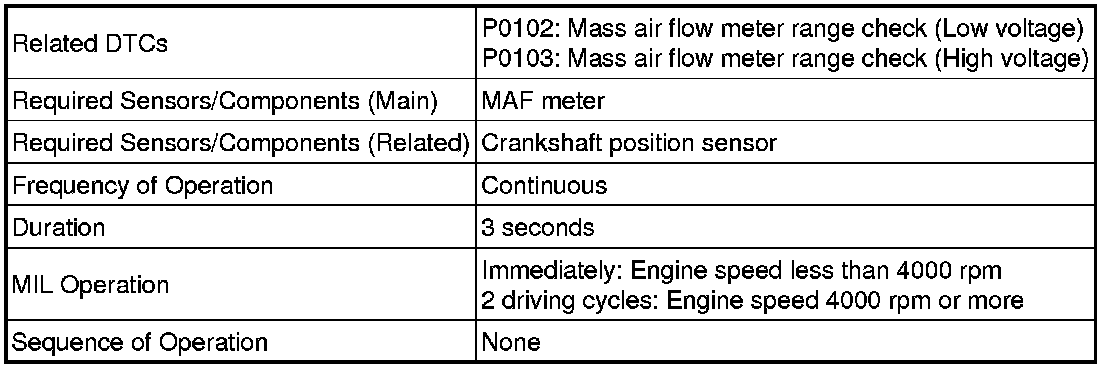

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

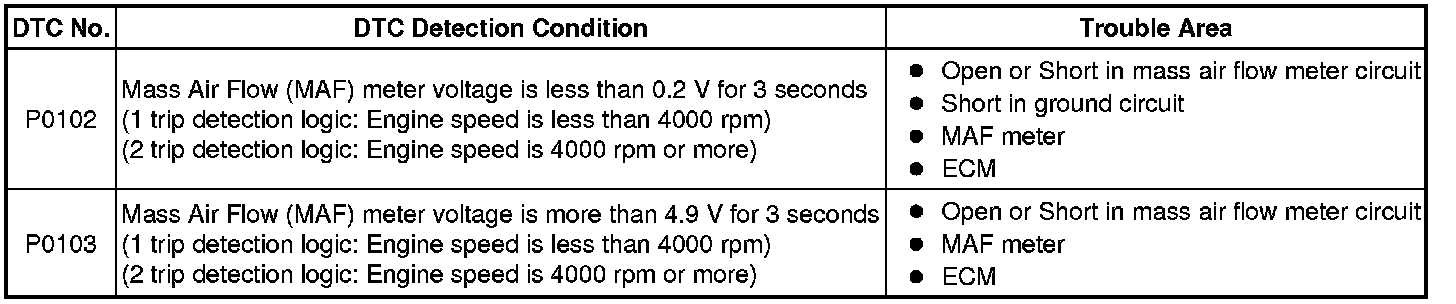

TYPICAL MALFUNCTION THRESHOLDS

P0102:





P0103:

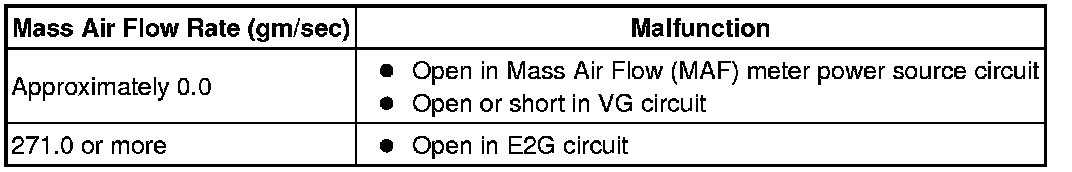

COMPONENT OPERATING RANGE

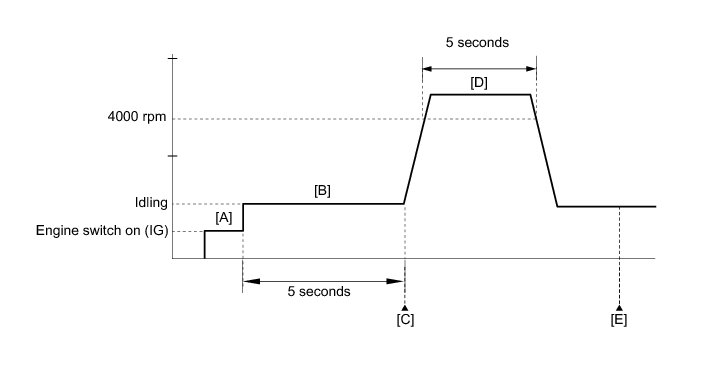

CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure) Reading and Clearing Diagnostic Trouble Codes.

4. Turn the engine switch off and wait for at least 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on [A].

6. Start the engine.

7. Idle the engine for 5 seconds [B].

8. Enter the following menus: Powertrain / Engine / Trouble Codes / Pending [C].

9. Read the Pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

10. Run the engine at an engine speed of 4000 rpm or more for 5 seconds [D].

11. Enter the following menus: Powertrain / Engine / Trouble Codes / Pending [E].

12. Read the Pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

14. Input the DTC: P0102 or P0103.

15. Check the DTC judgment result.





HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [B] and [D] again.

16. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

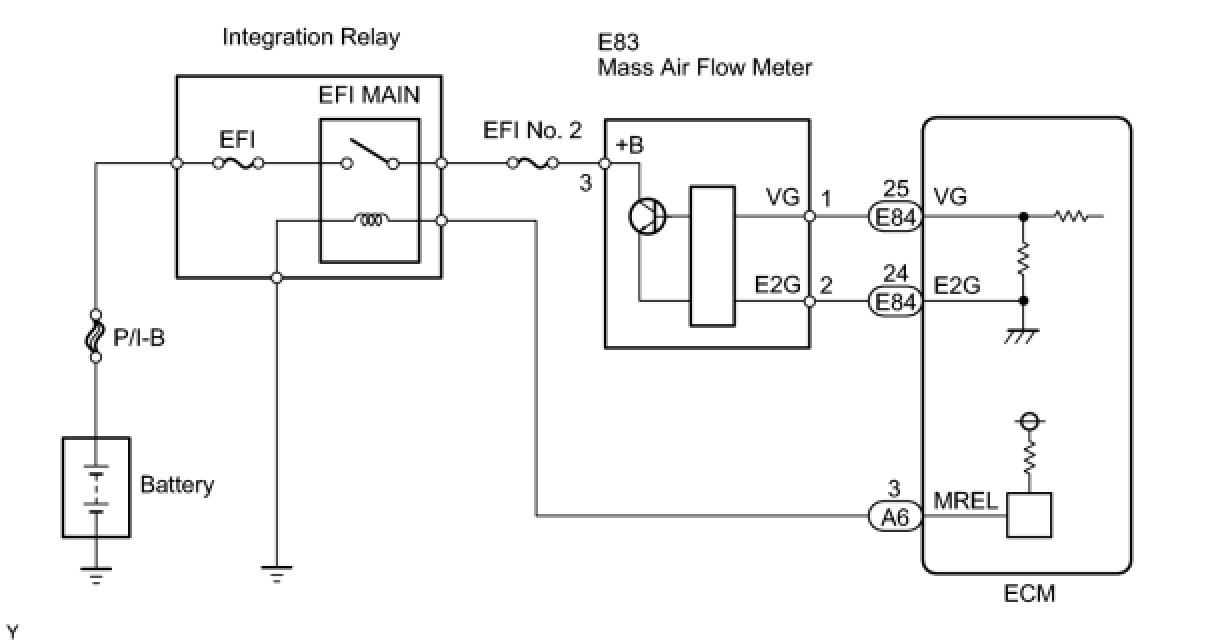

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

PROCEDURE

1. READ DTC OUTPUT

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

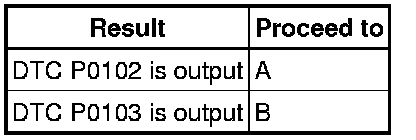

Result:





B -- CHECK HARNESS AND CONNECTOR (SENSOR GROUND)
A -- Continue to next step.

2. INSPECT MASS AIR FLOW METER (POWER SOURCE VOLTAGE)

(a) Disconnect the MAF meter connector.





(b) Turn the engine switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(d) Reconnect the MAF meter connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (MASS AIR FLOW METER - EFI MAIN RELAY)
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)

(a) Disconnect the MAF meter connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance between the terminals.

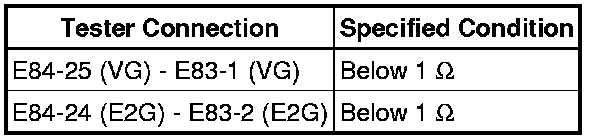

Standard resistance (Check for Open):





Standard resistance (Check for Short):





(d) Reconnect the MAF meter connector.

(e) Reconnect the ECM connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. INSPECT MASS AIR FLOW METER

(a) Perform On-vehicle Inspection On-Vehicle Inspection.

(b) Perform Inspection Inspection.

(c) Inspect the function of the mass air flow meter.

(1) Connect the Techstream to the DLC3.

(2) Turn the engine switch on (IG).

(3) Turn the Techstream on.

(4) Enter the following menus: Powertrain / Engine / Data List / MAF.

(5) Start the engine.

(6) Check that the reading of the MAF changes when the engine is raced.

OK:

The reading changes.

NG -- REPLACE MASS AIR FLOW METER Components

OK -- REPLACE ECM Components

5. CHECK HARNESS AND CONNECTOR (SENSOR GROUND)

(a) Disconnect the mass air flow meter connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Reconnect the mass air flow meter connector.

NG -- CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)

OK -- REPLACE MASS AIR FLOW METER Components

6. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)

(a) Disconnect the MAF meter connector.

(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):





(d) Reconnect the MAF meter connector.

(e) Reconnect the ECM connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM Components
