1UR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0014, P0015, P0024, P0025: Camshaft Position "B" - Timing Over-Advanced or System Performance (Bank 1)
P0025 - Camshaft Position "B" - Timing Over-Retarded (Bank 2)

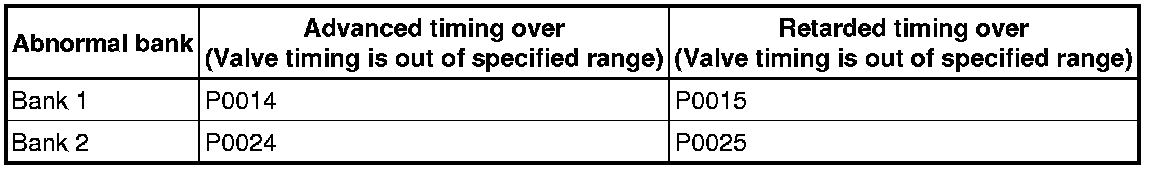

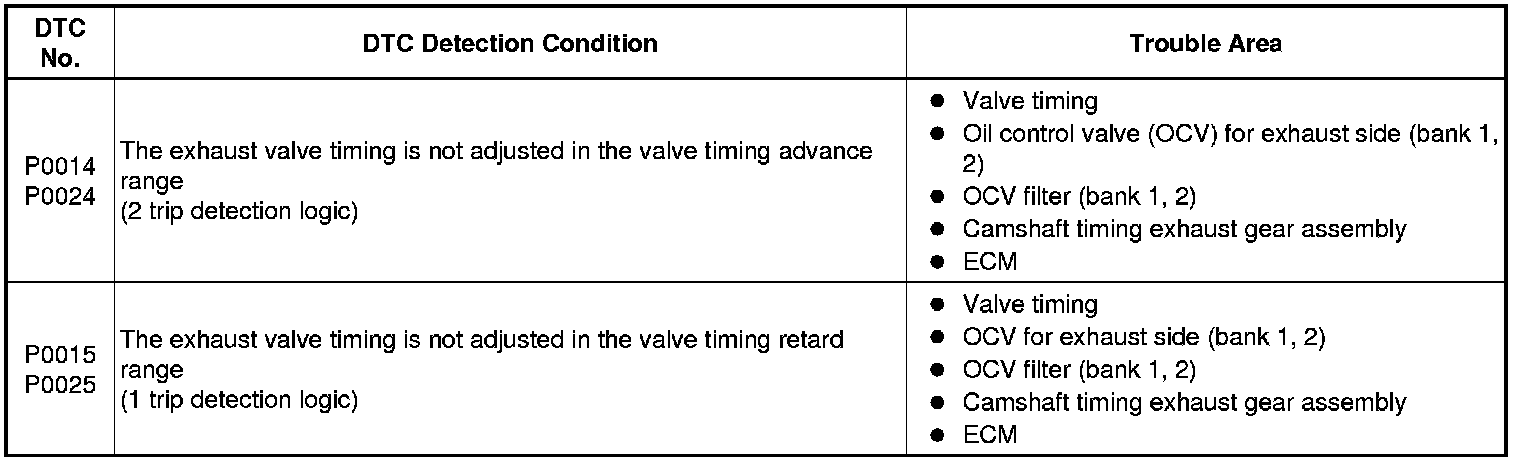

DESCRIPTION
Refer to DTC P0013 P0013.
MONITOR DESCRIPTION
1. The ECM optimizes the exhaust valve timing using the VVT (Variable Valve Timing) system to control the exhaust camshaft. The VVT system includes the ECM, camshaft timing oil control valve and VVT controller.
2. The ECM sends a target duty cycle control signal to the camshaft timing oil control valve. This control signal regulates the oil pressure supplied to the VVT controller. The VVT controller can advance or retard the exhaust camshaft.
If the difference between the target and actual exhaust valve timing is large, and changes in actual exhaust valve timing are small, the ECM interprets this as a VVT controller being stuck and stores a DTC.
- Example:
- A DTC is stored when the following conditions 1 and 2 are met for 10 seconds or more:
- 1. It takes 5 seconds or more to change the valve timing by 5°CA.
- 2. After the above condition 1 is met, the camshaft timing oil control valve is forcibly activated during 10 seconds.
3. These DTCs indicate that the VVT controller cannot operate properly due to camshaft timing oil control valve malfunctions or the presence of foreign objects in the camshaft timing oil control valve.

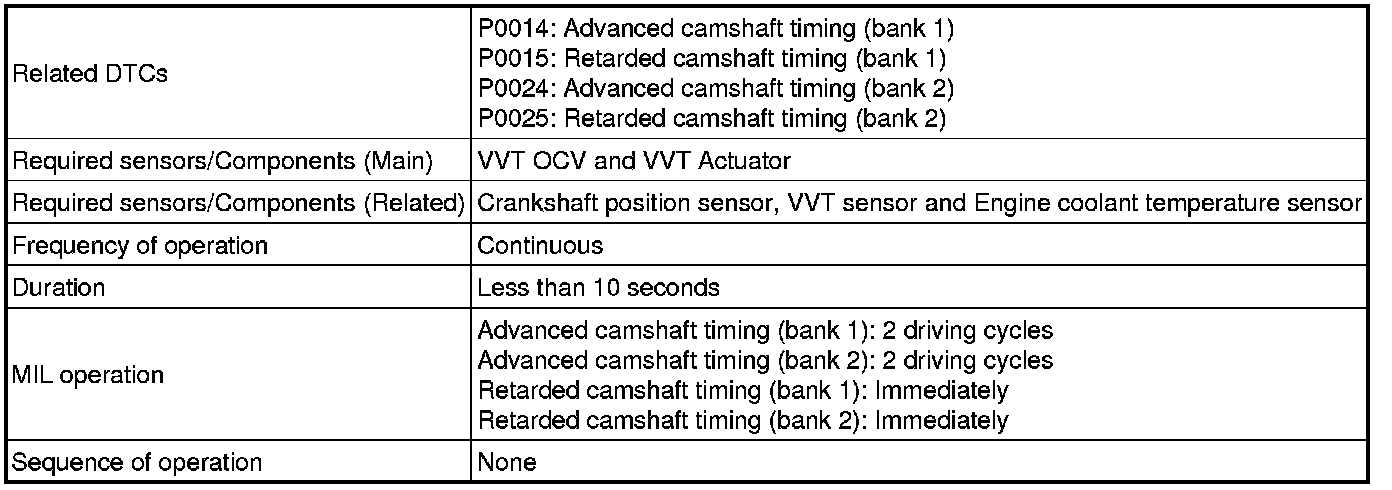

MONITOR STRATEGY

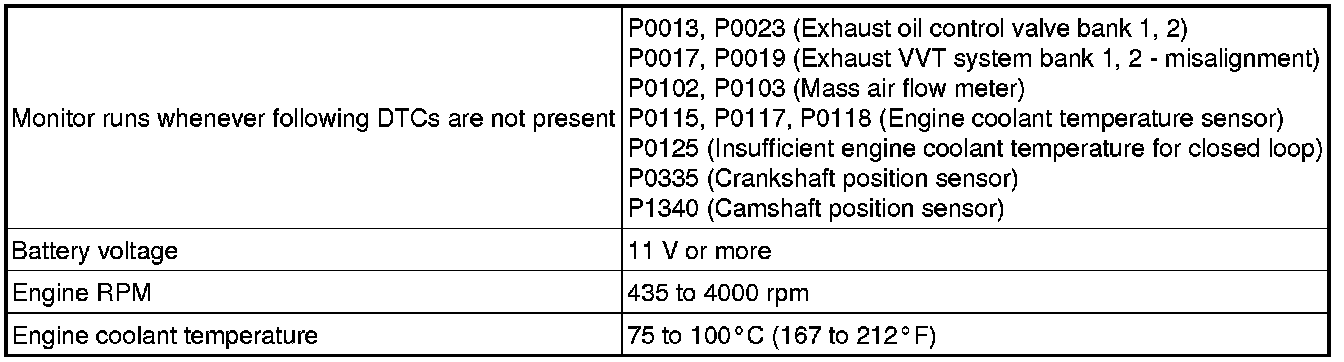

TYPICAL ENABLING CONDITIONS

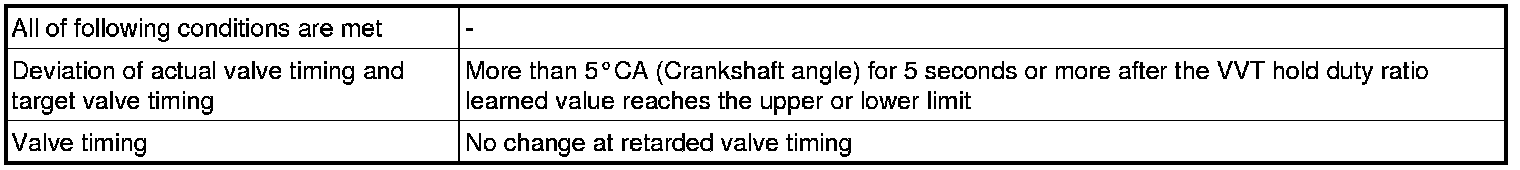

TYPICAL MALFUNCTION THRESHOLDS
Advanced camshaft timing:
Retarded camshaft timing:
MONITOR RESULT
Refer to Checking Monitor Status Mode 6 Data.
CONFIRMATION DRIVING PATTERN
1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation).
4. Turn the engine switch off and wait for at least 30 seconds.
5. Turn the engine switch on (IG) and turn the Techstream on [A].
6. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].
7. Drive the vehicle at approximately 60 km/h (37 mph) for 10 minutes or more [C].
CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
8. Idle the engine for 3 minutes or more [D].
9. Enter the following menus: Powertrain / Engine / Trouble Codes [E].
10. Read the pending DTCs.
HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
12. Input the DTC: P0014, P0015, P0024 or P0025.
13. Check the DTC judgment result.
HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [F] through [H].
14. Repeat the pattern of accelerating the vehicle from rest to approximately 60 km/h (37 mph) and then decelerating the vehicle 10 to 15 times [F].
CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT
Depress the accelerator pedal by a large amount.
15. Idle the engine for 3 minutes or more [G].
16. Enter the following menus: Powertrain / Engine / Trouble Codes [H].
17. Read the pending DTCs.
HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
18. Check the DTC judgment result again.
HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform the following procedure.
19. Perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.
HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
WIRING DIAGRAM
Refer to DTC P0013 P0013.
INSPECTION PROCEDURE
HINT
- If DTC P0014 or P0015 is displayed, check the bank 1 VVT system for exhaust side circuit.
- Bank 1 refers to the bank that includes No. 1 cylinder*.
*: The No. 1 cylinder is the cylinder which is farthest from the transmission.
- If DTC P0024 or P0025 is displayed, check the bank 2 VVT system for exhaust side circuit.
- Bank 2 refers to the bank that does not include No. 1 cylinder.
- Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.
PROCEDURE
1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0014, P0015, P0024 OR P0025)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.
(c) Enter the following menus: Powertrain / Engine / Trouble Codes.
(d) Read DTCs.

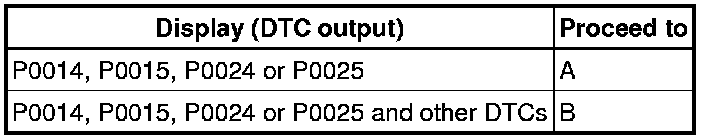

Result:
HINT
If any DTCs other than P0014, P0015, P0024 or P0025 are output, troubleshoot those DTCs first.
B -- GO TO DTC CHART SFI System
A -- Continue to next step.
2. PERFORM ACTIVE TEST USING TECHSTREAM (OCV FOR EXHAUST SIDE OPERATION)
(a) Connect the Techstream to the DLC3.
(b) Start the engine and turn the Techstream on.
(c) Enter the following menus: Powertrain / Engine / Active Test / Control the VVT Exhaust Linear (Bank 1) or Control the VVT Exhaust Linear (Bank 2).

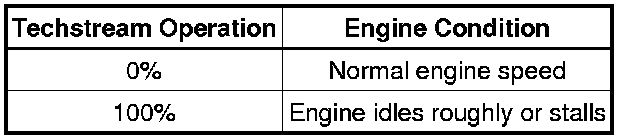

(d) Check the engine speed while operating the Oil Control Valve (OCV) using the Techstream.
OK:
NG -- CHECK VALVE TIMING (CHECK FOR LOOSE OR JUMPED TEETH ON TIMING CHAIN)
OK -- Continue to next step.
3. CHECK WHETHER DTC OUTPUT RECURS (DTC P0014, P0015, P0024 OR P0025)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.
(c) Clear DTCs Reading and Clearing Diagnostic Trouble Codes.
(d) Start the engine and warm it up.
(e) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
(f) Read DTCs using the Techstream.

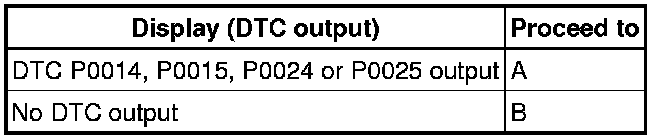

Result:
HINT
DTC P0014, P0015, P0024 or P0025 is output when foreign objects in engine oil are caught in some parts of the system. These codes will remain stored even if the system returns to normal after a short time. These foreign objects may then be captured by the oil, thus eliminating the source of the problem.
B -- CHECK FOR INTERMITTENT PROBLEMS Check For Intermittent Problems
A -- Continue to next step.
4. CHECK VALVE TIMING (CHECK FOR LOOSE OR JUMPED TEETH ON TIMING CHAIN) P0016
NG -- ADJUST VALVE TIMING Reassembly
OK -- Continue to next step.
5. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
(a) Remove the OCV Removal.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
(c) Connect the positive (+) battery terminal to terminal 1 and connect the negative (-) battery terminal to terminal 2. Check the valve operation.
OK:
Valve moves quickly.
(d) Reinstall the OCV.
NG -- REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY Components
OK -- Continue to next step.
6. INSPECT OIL CONTROL VALVE FILTER
(a) Remove the cylinder head cover sub-assembly Disassembly.
(b) Remove the OCV filter Disassembly.
(c) Inspect the OCV filter.
OK:
Filter is not clogged.
NG -- REPLACE OIL CONTROL VALVE FILTER Components
OK -- Continue to next step.
7. REPLACE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
(a) Replace the camshaft timing exhaust gear assembly Components.
NEXT -- Continue to next step.
8. CHECK WHETHER DTC OUTPUT RECURS
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.
(c) Clear DTCs Reading and Clearing Diagnostic Trouble Codes.
(d) Start the engine and warm it up.
(e) Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
(f) Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
(g) Read the pending DTC.
Result:
B -- END
A -- REPLACE ECM Components
