Jam Protection Function Does Not Operate

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Jam Protection Function does not Operate
- Jam Protection Function does not Operate

DESCRIPTION

This symptom may occur on all door windows.

The jam protection function operates within a specified range during the manual UP or AUTO UP operation.

NOTICE:
When the power window regulator motor is reinstalled or replaced, the power window control system must be initialized.

INSPECTION PROCEDURE

PROCEDURE

1. PERFORM INITIALIZATION

(a) Initialize the power window regulator motor assembly (applicable location) Initialization.

(b) Check if the power window AUTO UP/DOWN function operates normally.

OK:

AUTO UP/DOWN function operates normally.

NG -- END (PROBLEM DUE TO INITIALIZATION FAILURE)
OK -- Continue to next step.

2. CHECK JAM PROTECTION FUNCTION OPERATING RANGE

(a) Check if the jam protection function operates normally for the applicable power window.

HINT
The jam protection function will not operate within 4 mm (0.157 in) of the fully closed position.

OK:

Jam protection function operates normally.

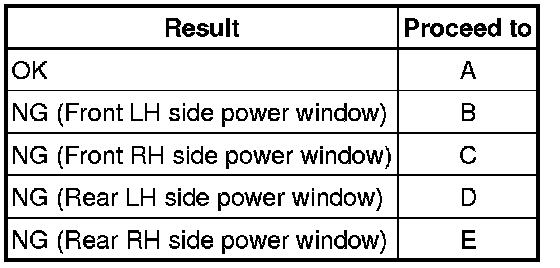

Result:





E -- REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH Removal

D -- REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH Removal

C -- REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH Removal

B -- REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH Removal

A -- END
