Body - Power Window Initialization Procedure

L-SB-0056-10

July 13, 2010

Initialization of Power Window During PDS

Service Category
General

Section
Pre-Delivery Service

Market
USA

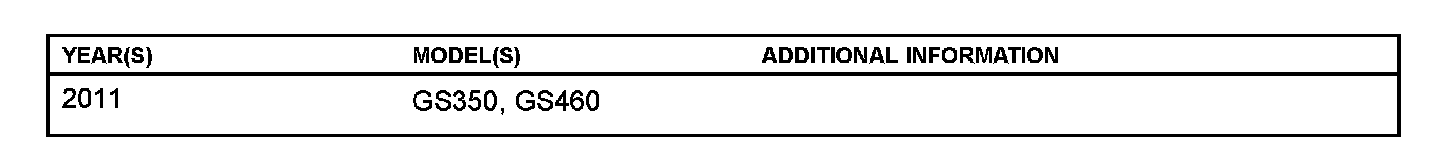

Applicability

Introduction

As a result of the removal of the DCC fuse, the "one-touch open and close" and "jam protection" functions of each door's power window will be inoperative due to loss of the power window position memory stored in the microcomputer.

Initialize each door's power window after installing the DCC fuse into its original location during Pre-Delivery Service (PDS).

Any time the battery terminal has been disconnected, each door's power window MUST be initialized.

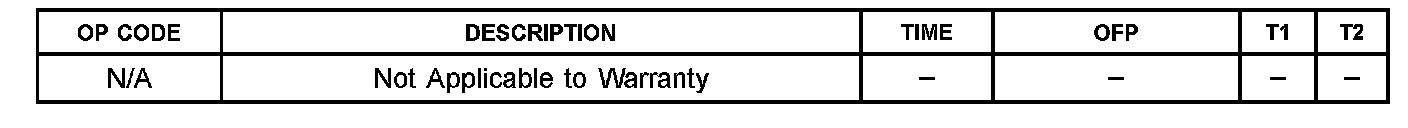

Warranty Information

Initialization Procedure

1. Cycle the ignition switch to the "IG-ON" position.

When not initialized, the power window switch for the driver's door window will blink.

2. Push "DOWN" and hold the driver's door power window switch to completely open the window.

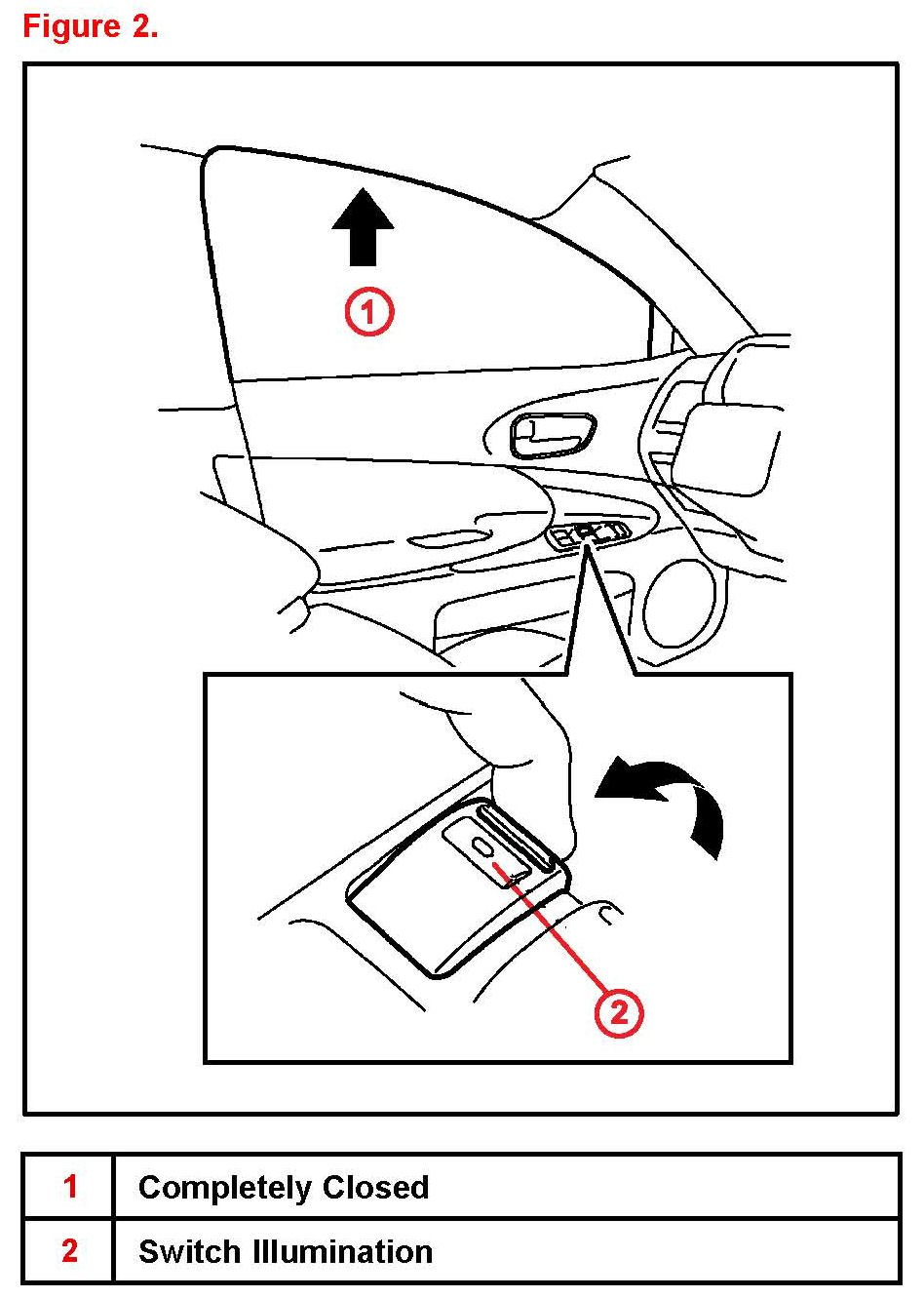

3. Pull "UP" the driver's door power window switch until the window closes, and hold it for approximately one second.

NOTE

^ At this time, the driver's door power window switch will stop blinking and the light will remain illuminated.

^ Jam protection function is enabled through the above initialization procedure.

4. Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.

5. Repeat steps 1 - 4 for each door's power window.
