Windshield Deicer System

WINDSHIELD / WINDOWGLASS: WINDSHIELD DEICER SYSTEM: TERMINALS OF ECU

1. CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY

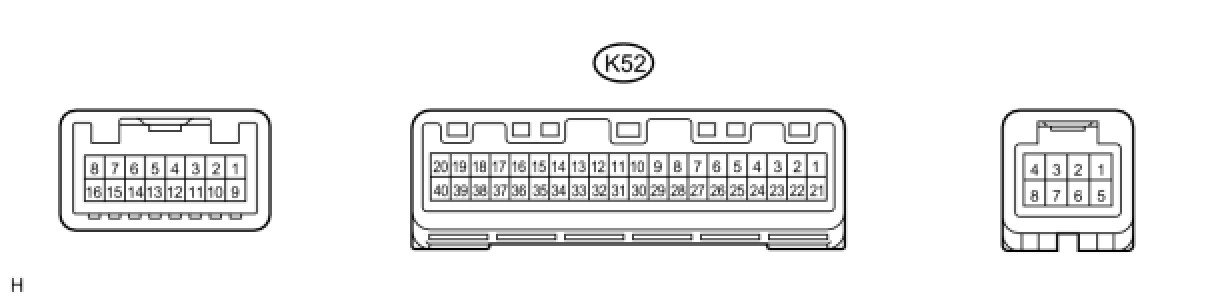

(a) Disconnect the K52 A/C amplifier assembly connector.

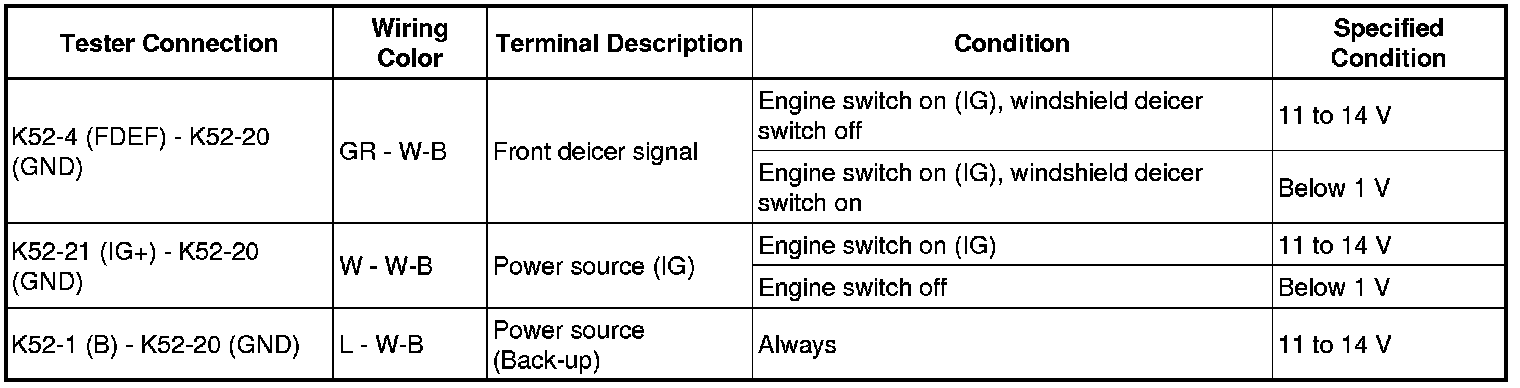

(b) Measure the voltage and resistance according to the value(s) in the table below.

HINT
Measure the values on the wire harness side with the connector disconnected.

Standard voltage





Standard resistance





If the result is not as specified, there may be a malfunction in the wire harness or amplifier.
