Shift Solenoid Valve

A760E AUTOMATIC TRANSMISSION: SHIFT SOLENOID VALVE: INSPECTION

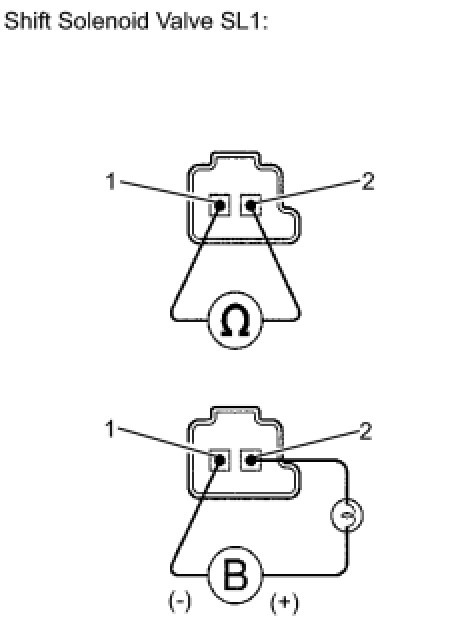

1. INSPECT SHIFT SOLENOID VALVE (SL1)

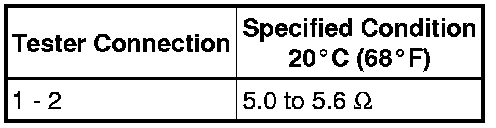

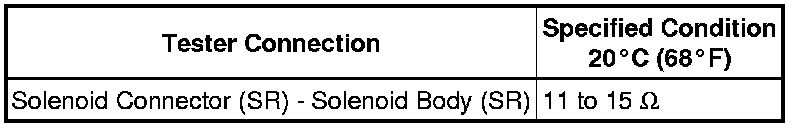

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, and check operation of the valve.

NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:

The solenoid makes an operating sound.

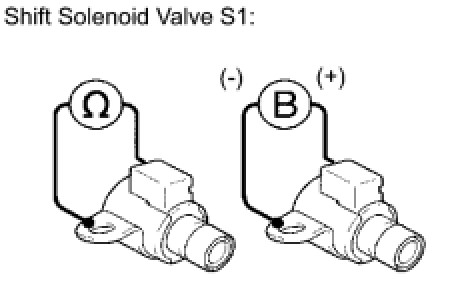

2. INSPECT SHIFT SOLENOID VALVE (S1)

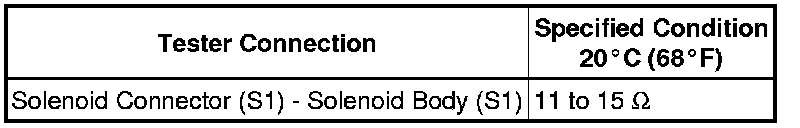

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.

NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:

The solenoid makes an operating sound.

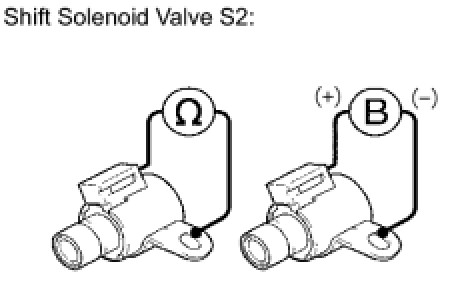

3. INSPECT SHIFT SOLENOID VALVE (S2)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.

NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:

The solenoid makes an operating sound.

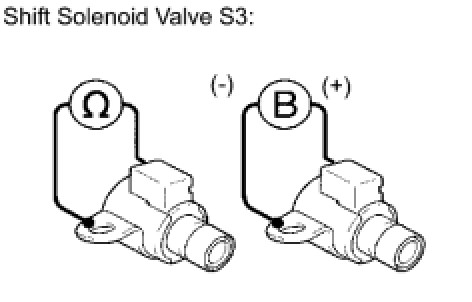

4. INSPECT SHIFT SOLENOID VALVE (S3)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.

NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:

The solenoid makes an operating sound.

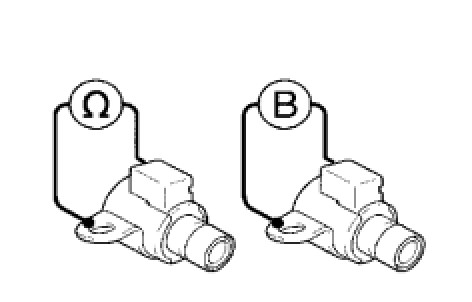

5. INSPECT SHIFT SOLENOID VALVE (S4)

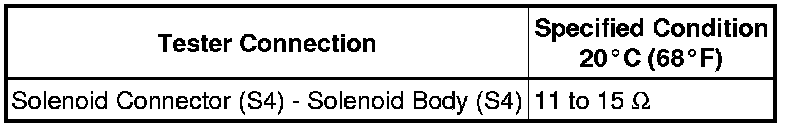

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.

NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:

The solenoid makes an operating sound.

6. INSPECT SHIFT SOLENOID VALVE (SL2)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, and check operation of the valve.

NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:

The solenoid makes an operating sound.

7. INSPECT SHIFT SOLENOID VALVE (SR)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body, and check operation of the valve.

NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:

The solenoid makes an operating sound.

8. INSPECT SHIFT SOLENOID VALVE (SLT)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, and check operation of the valve.

NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:

The solenoid makes an operating sound.

9. INSPECT SHIFT SOLENOID VALVE (SLU)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, and check operation of the valve.

NOTICE:
While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.

OK:

The solenoid makes an operating sound.
