Component Tests and General Diagnostics

A760E AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: INSPECTION

1. INSPECT TRANSMISSION CONTROL SWITCH

(a) Connect the park/neutral position switch connector.

(b) Disconnect the transmission control switch connector from the shift lock control unit assembly.

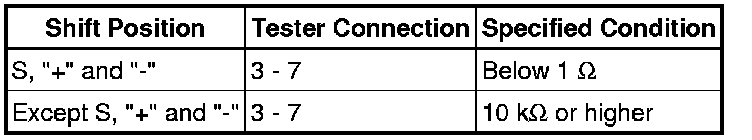

(c) Measure resistance according to the value(s) in the table below when the shift lever is moved to each position.





Standard resistance:
