Adaptive Variable Suspension System

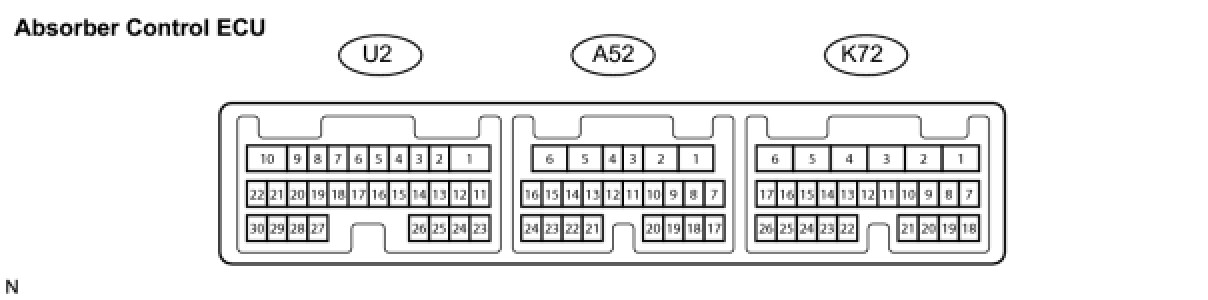

SUSPENSION CONTROL: ADAPTIVE VARIABLE SUSPENSION SYSTEM: TERMINALS OF ECU

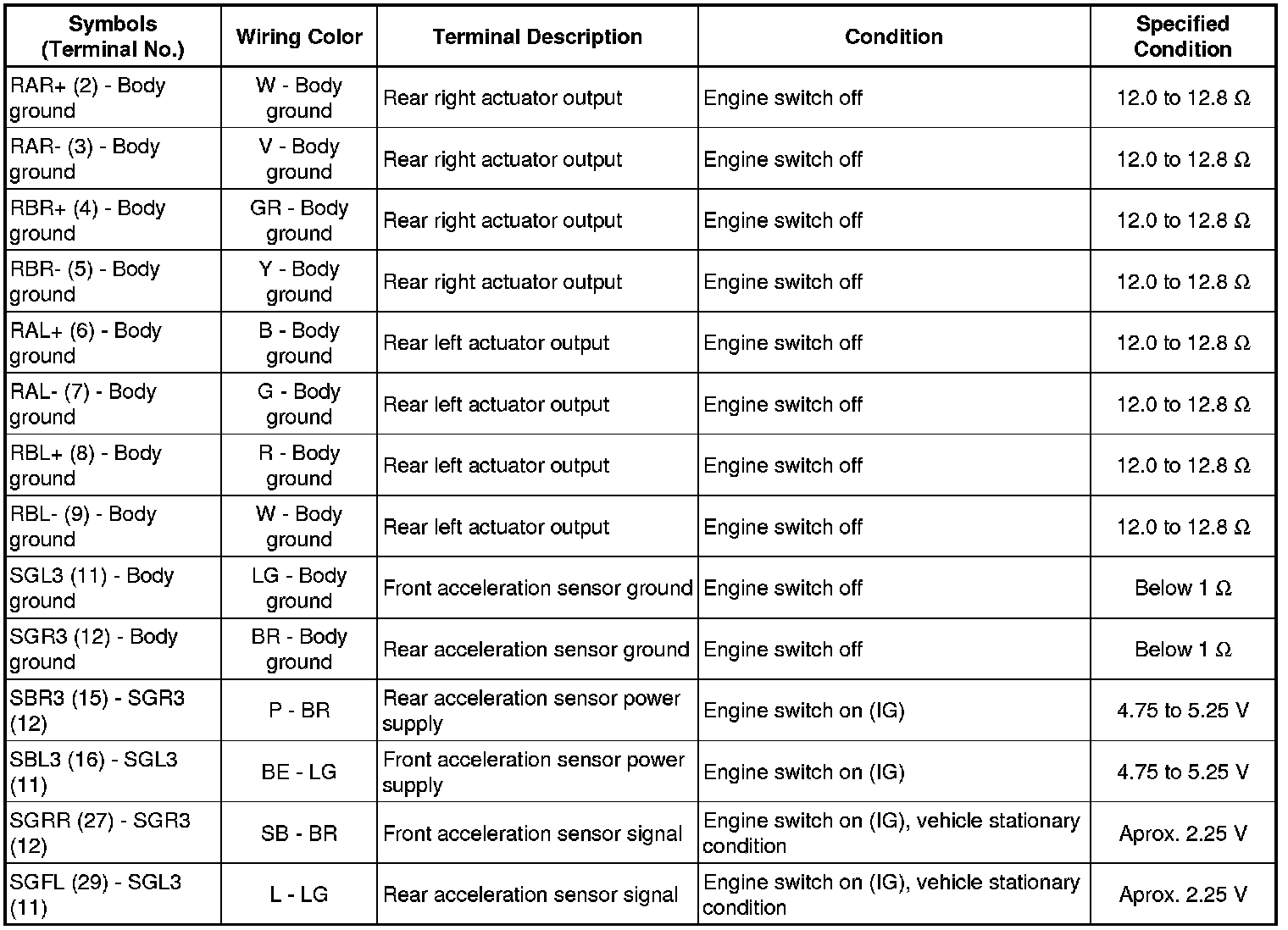

Connector U2:





Connector A52:

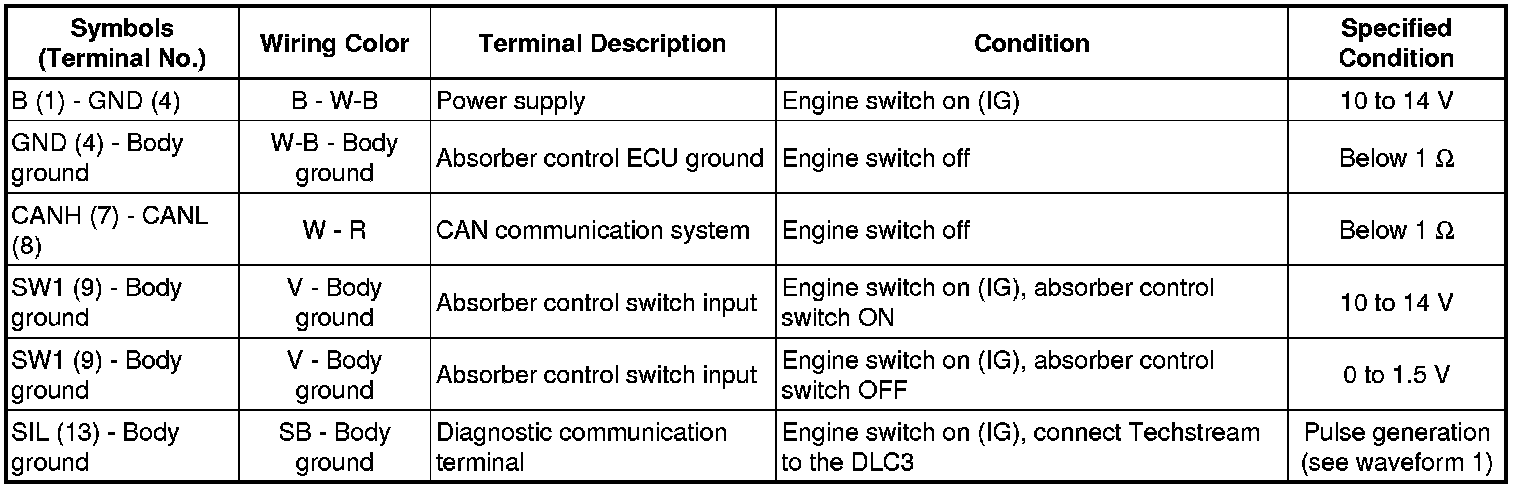

Connector K72:

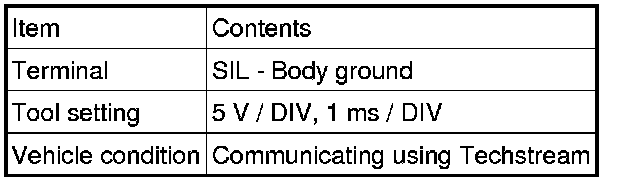

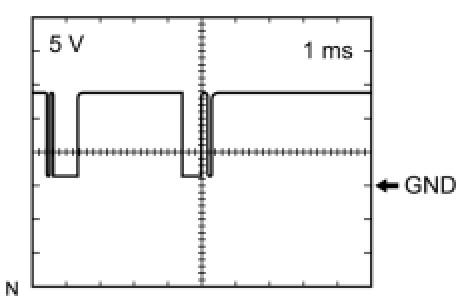

Waveform 1 (Reference)
