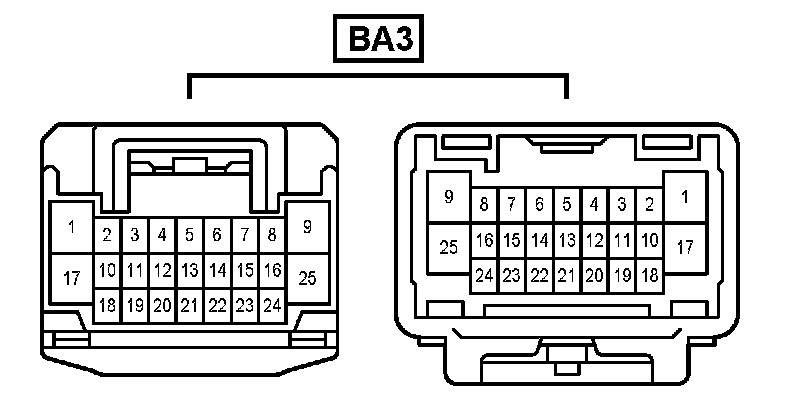

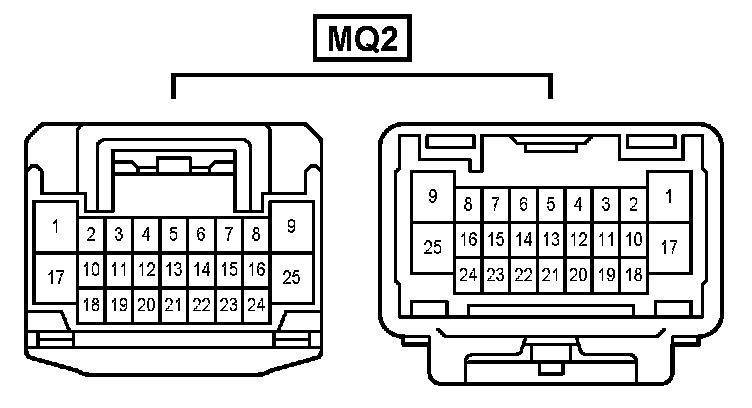

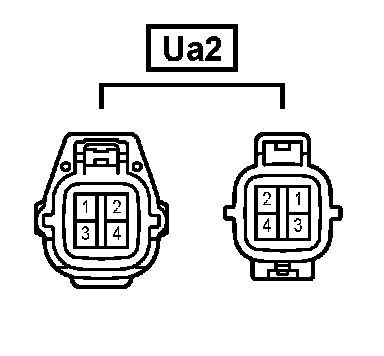

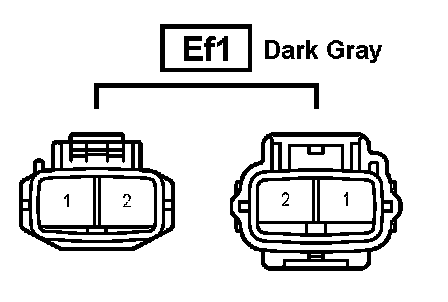

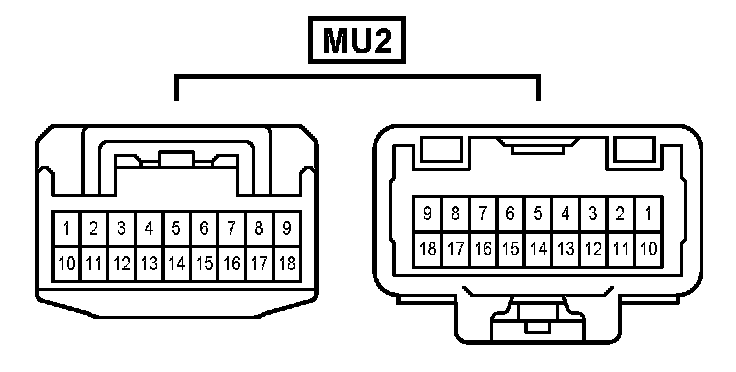

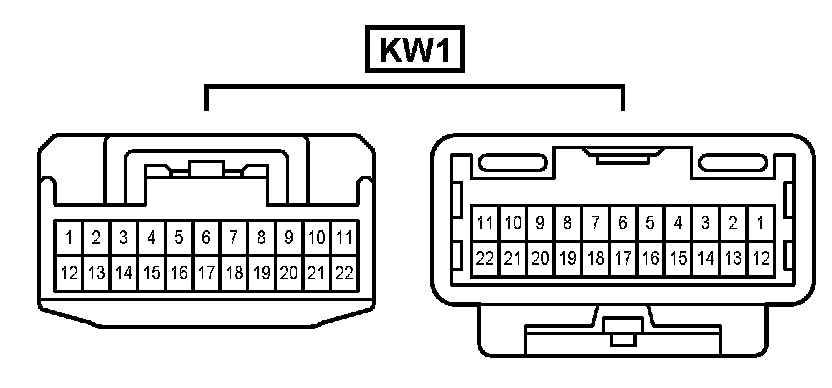

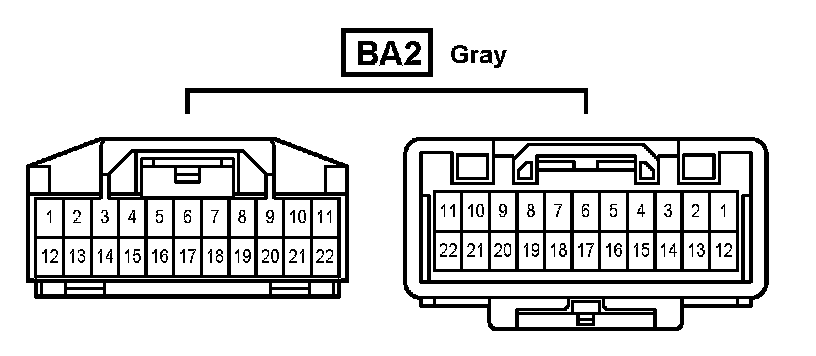

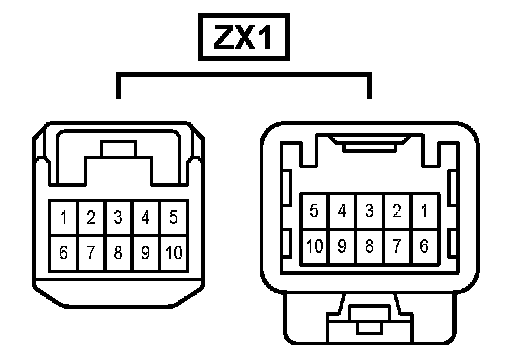

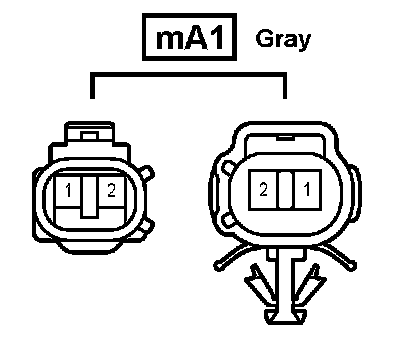

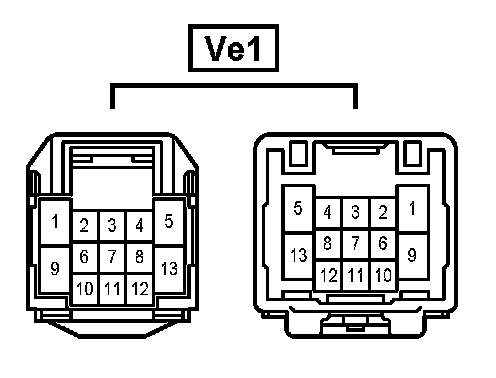

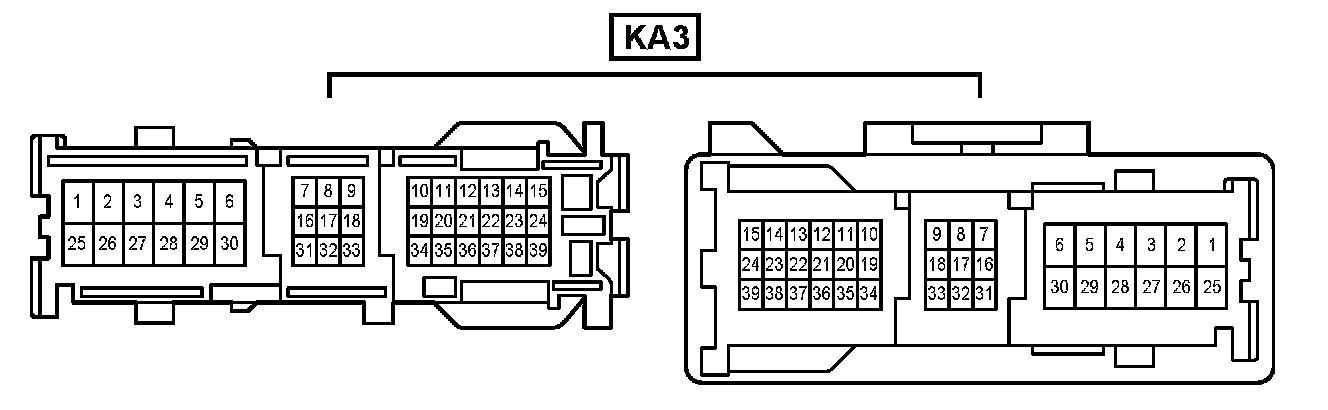

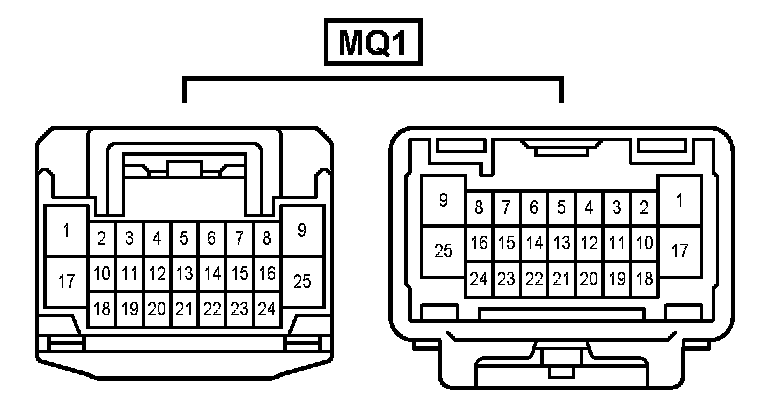

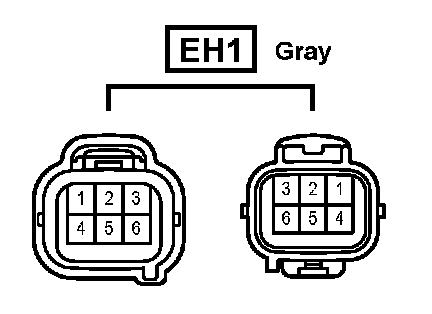

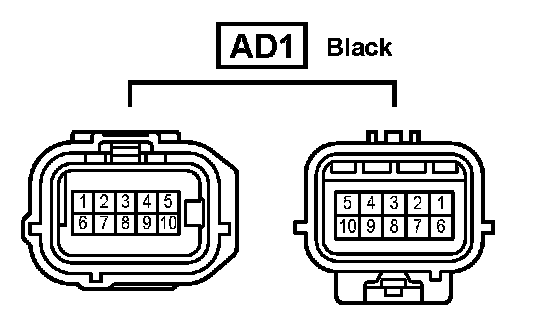

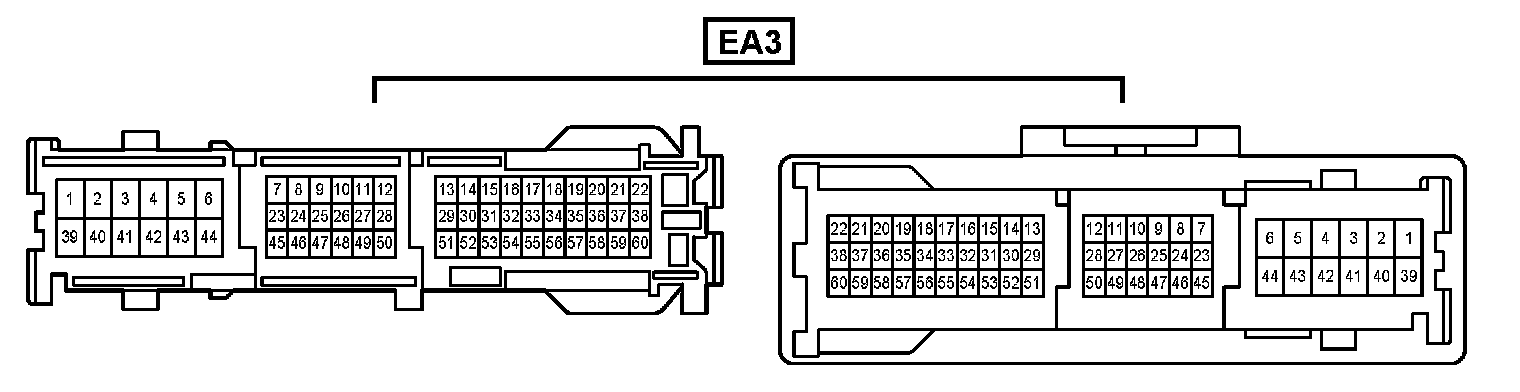

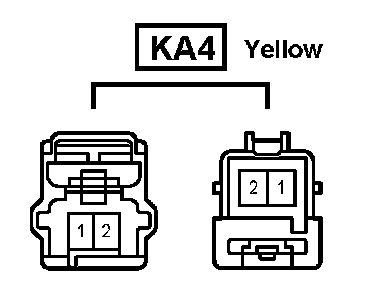

Junction Connectors (Wire Harness)

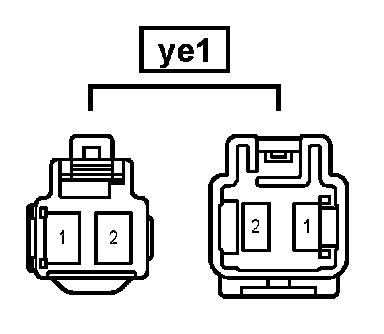

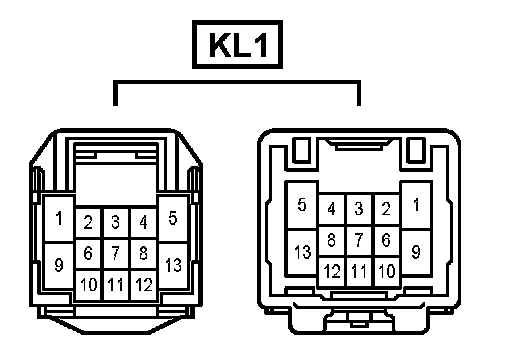

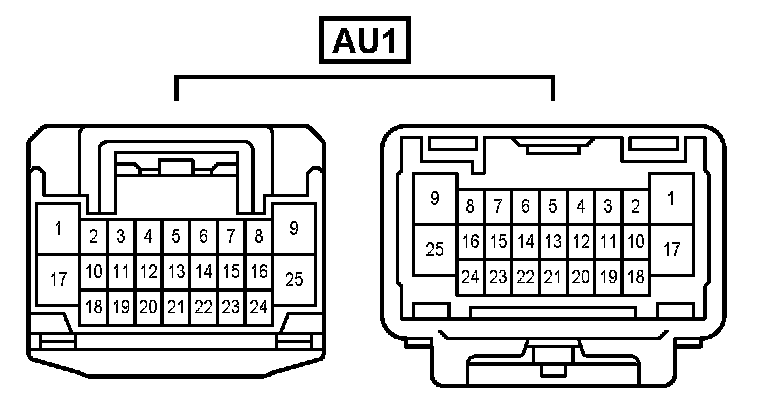

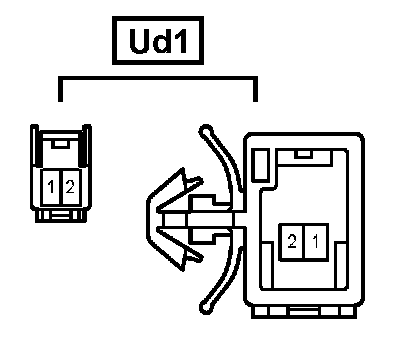

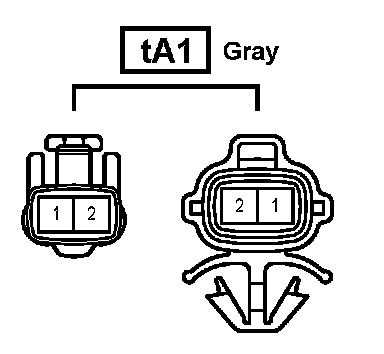

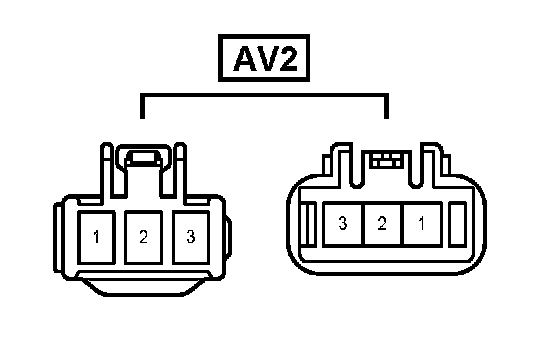

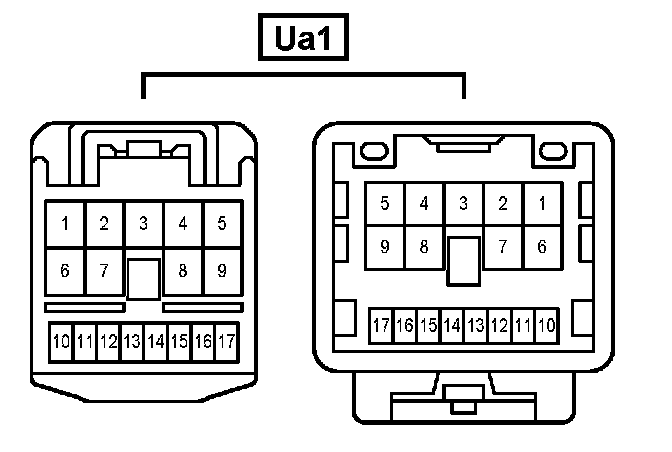

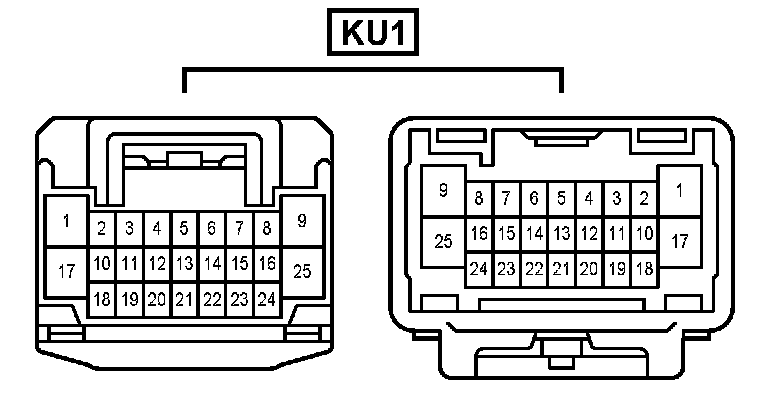

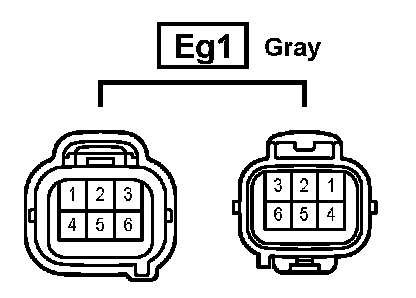

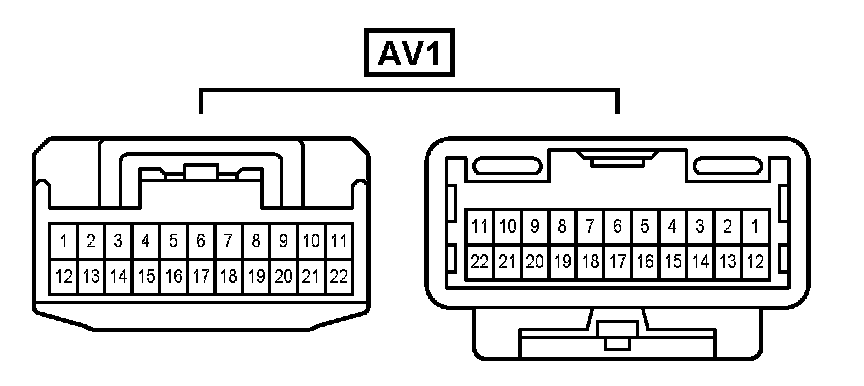

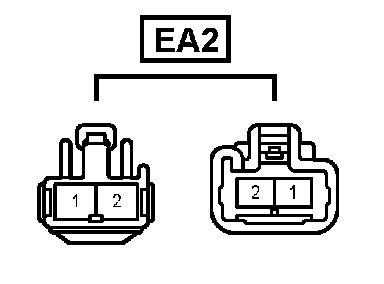

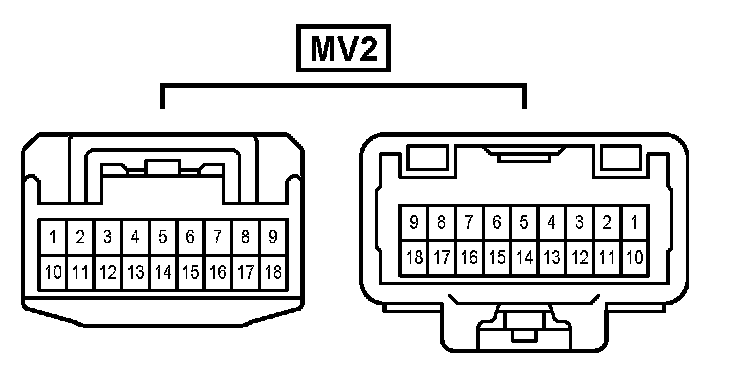

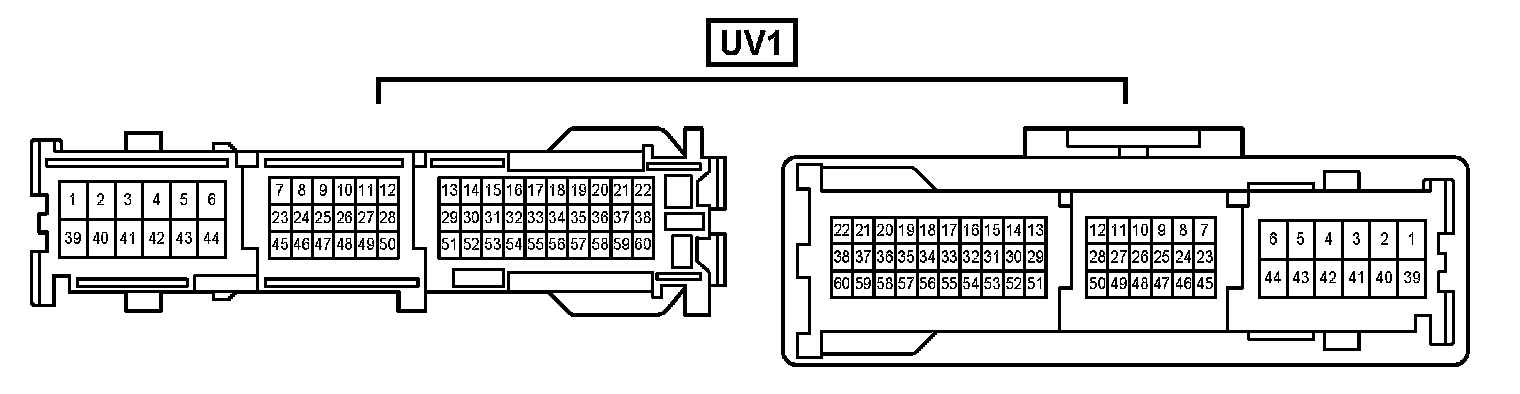

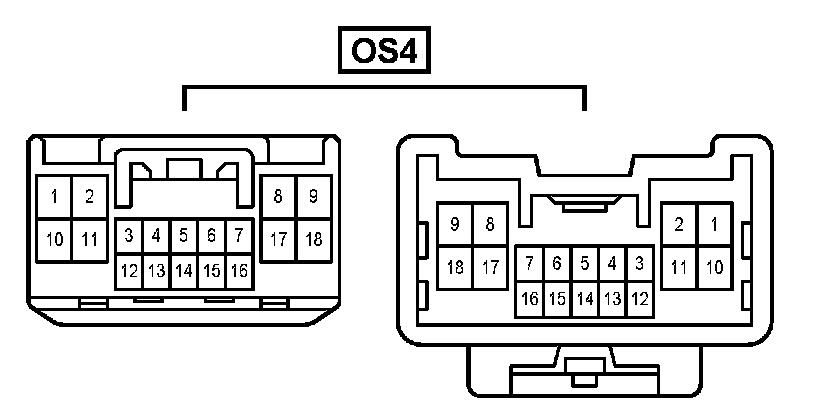

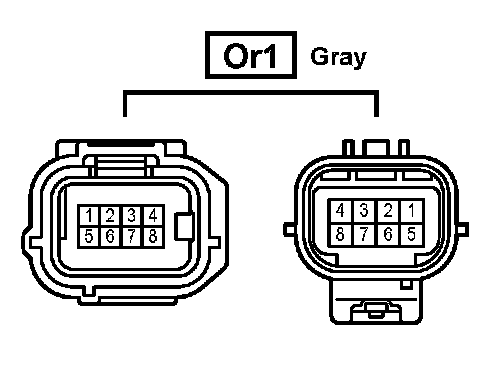

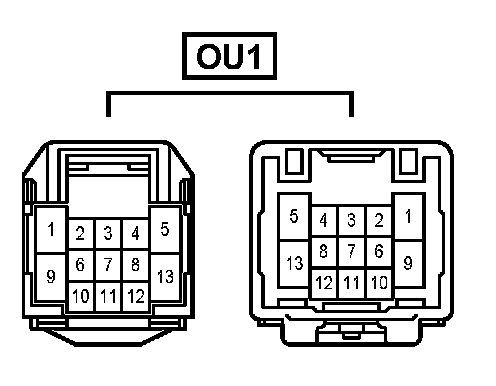

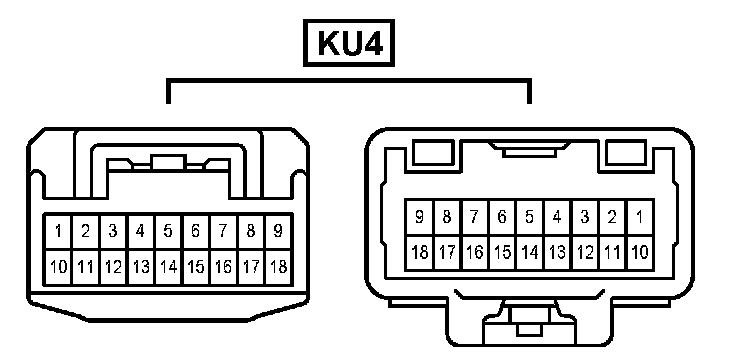

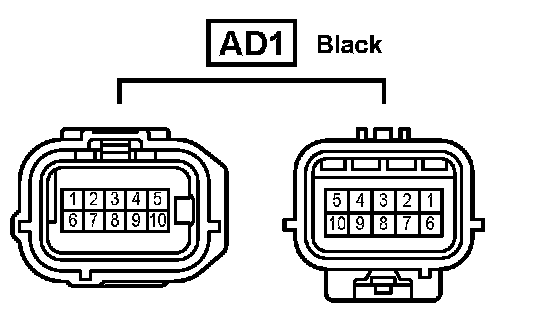

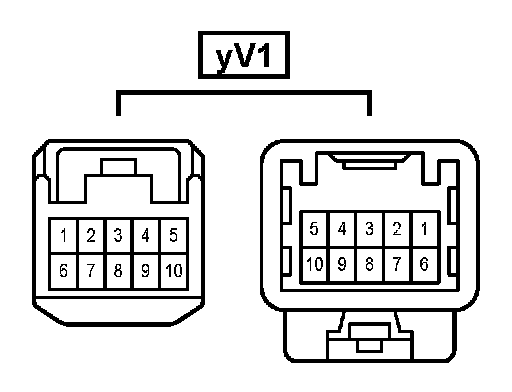

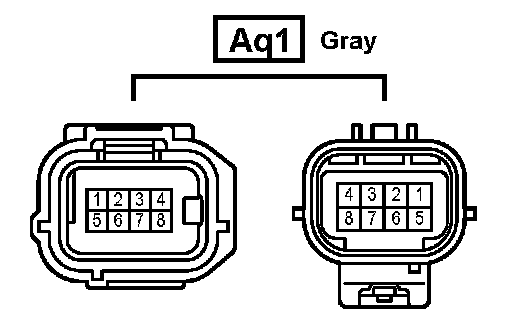

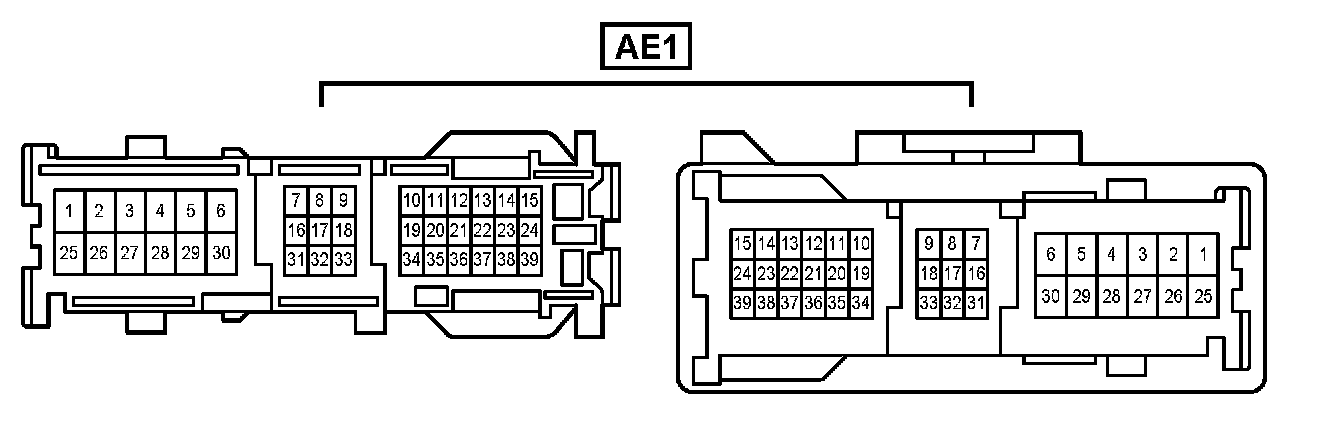

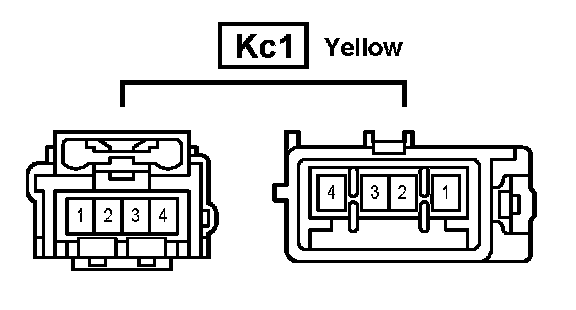

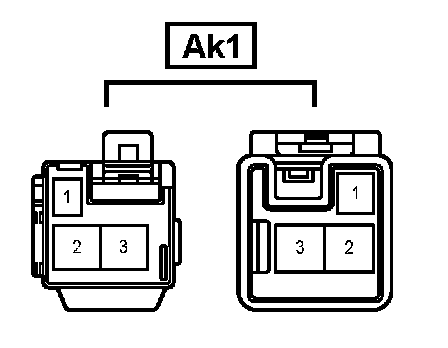

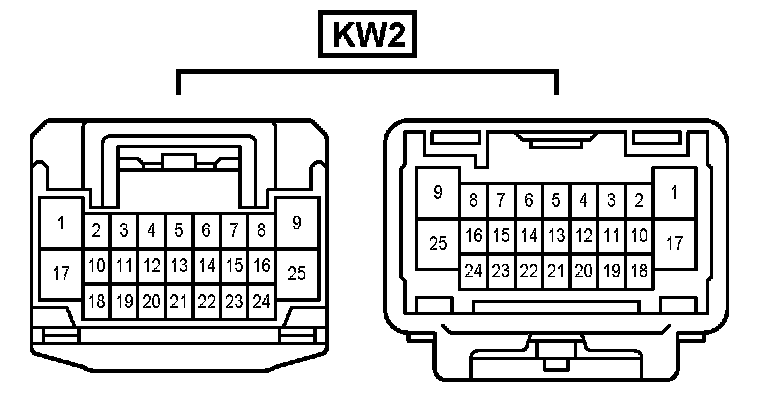

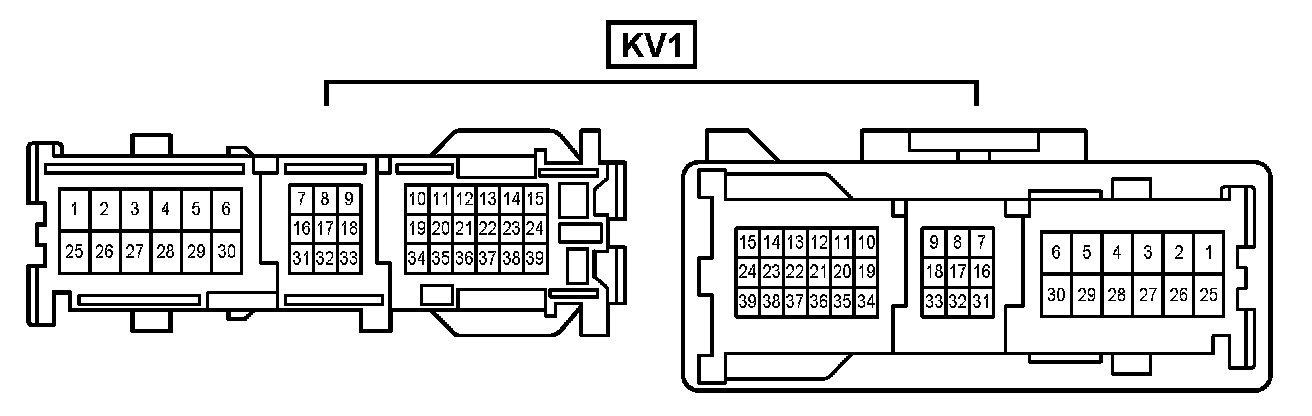

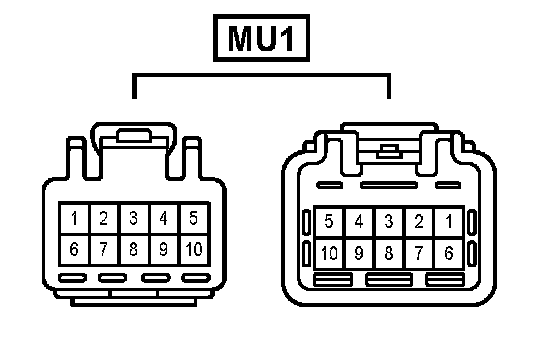

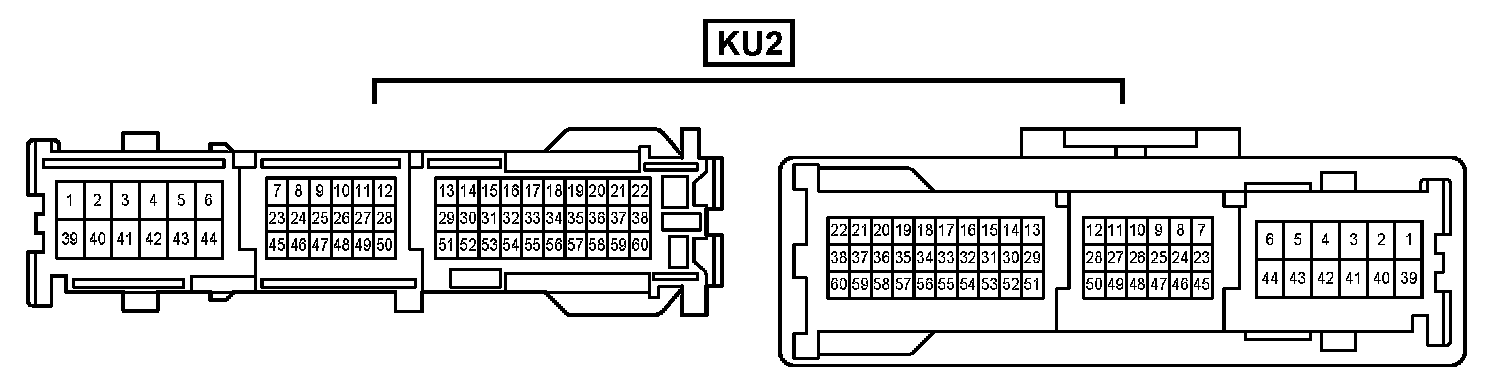

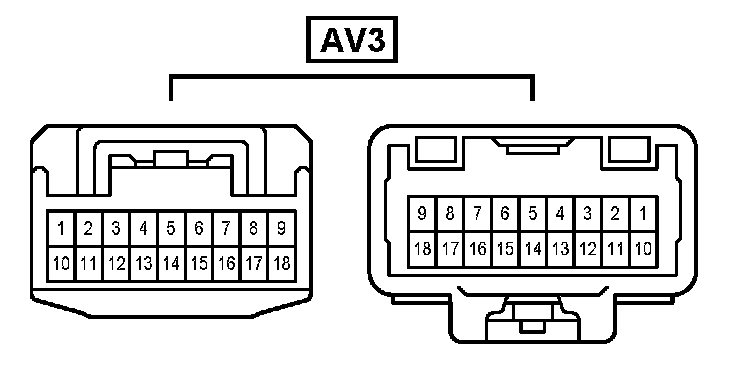

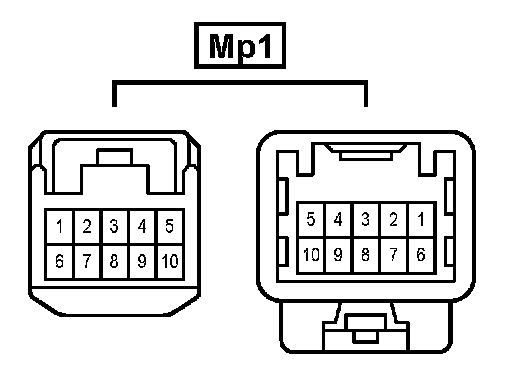

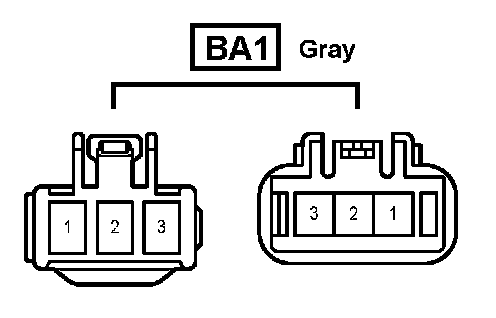

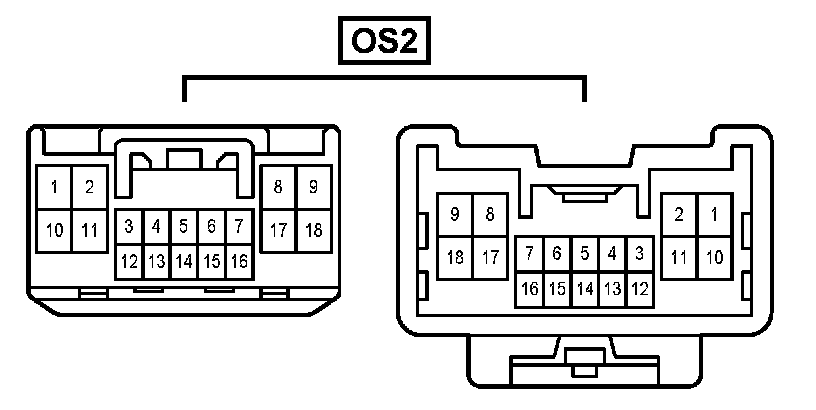

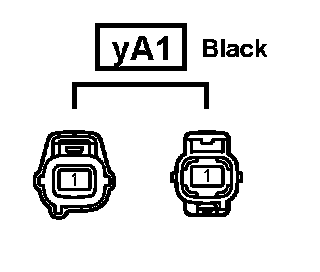

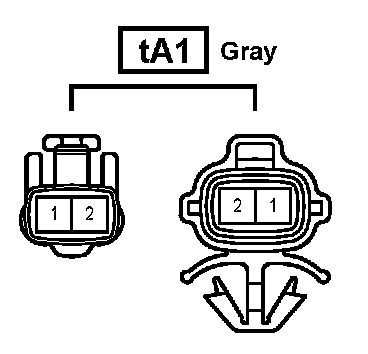

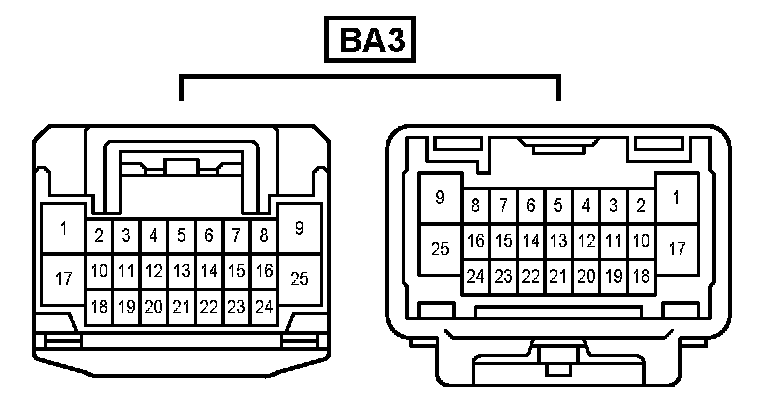

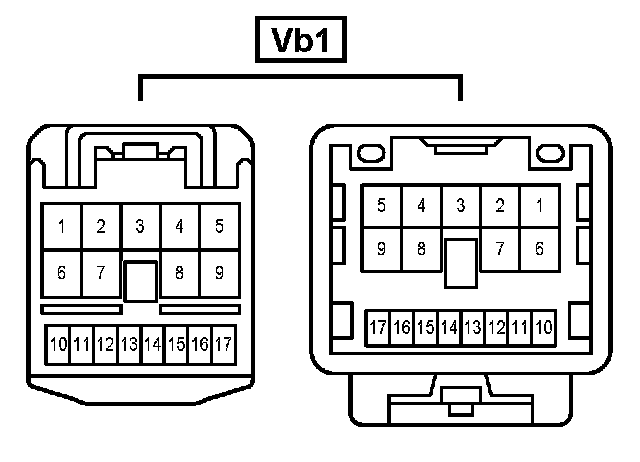

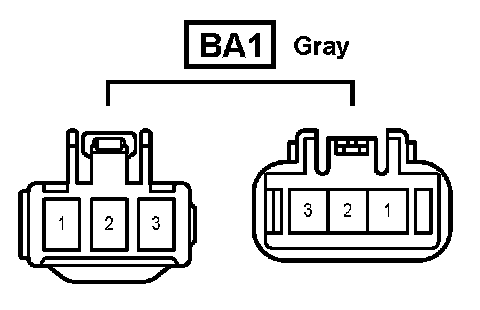

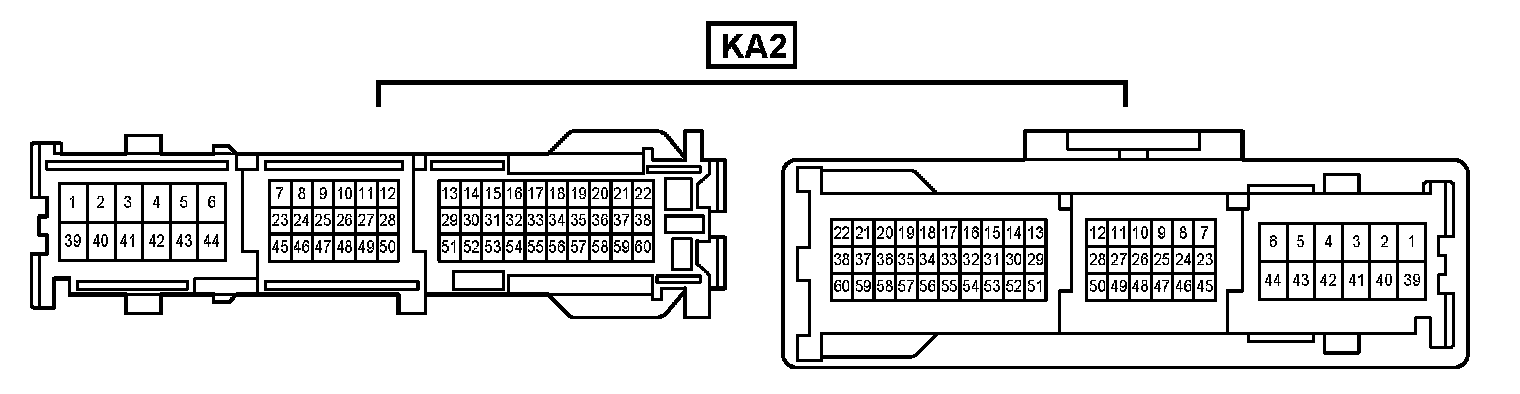

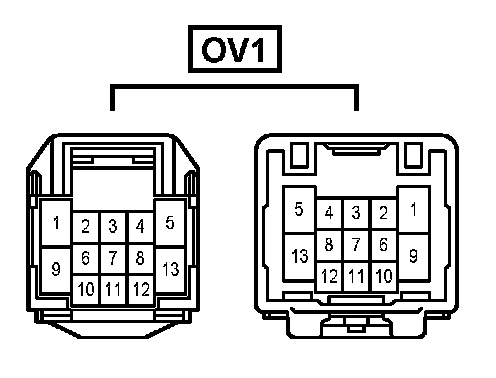

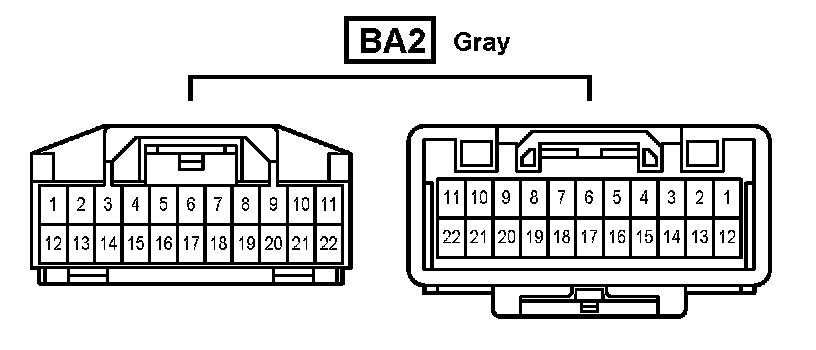

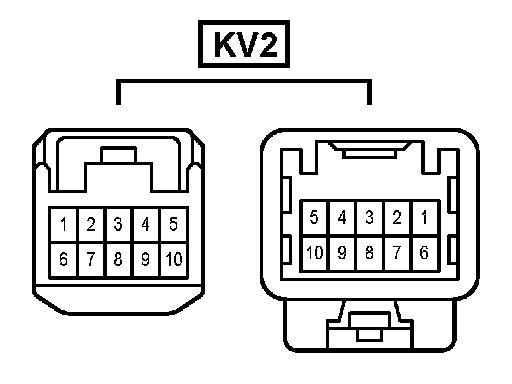

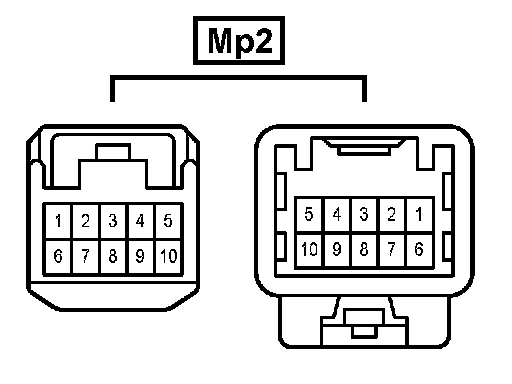

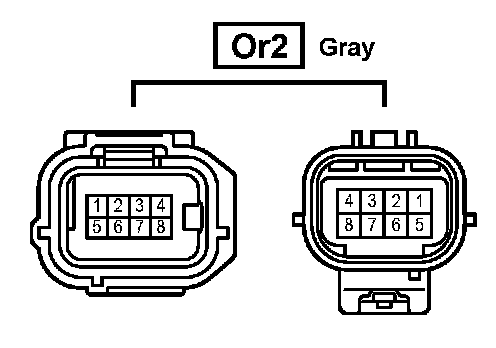

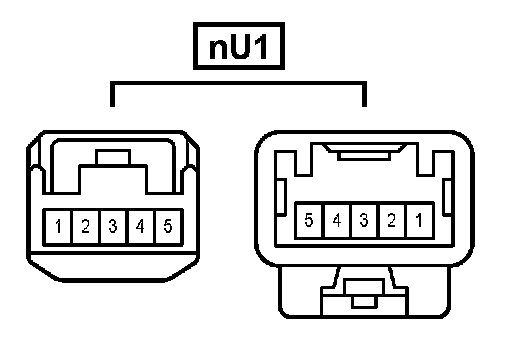

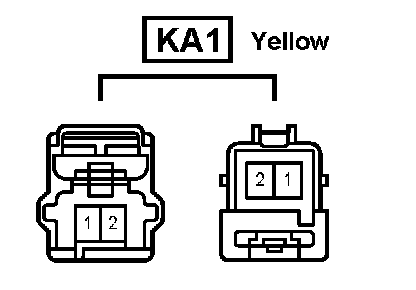

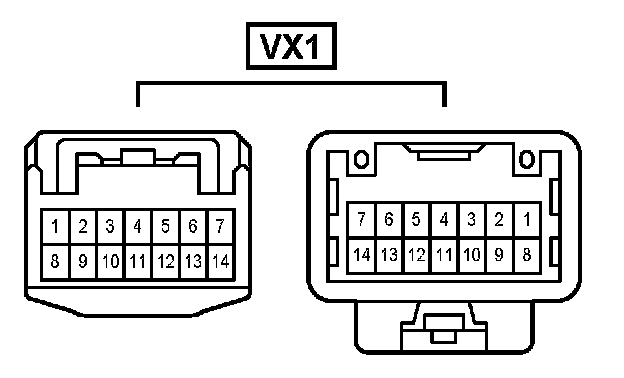

On Left: Female connector Shapes
On Right: Male connector Shapes

Connector Colors:

Black















Gray










































Dark Gray












Yellow












Connectors with no indicated colors are white in color:
