Removal

OTHER SYSTEM: CENTER POWER OUTLET SOCKET: REMOVAL

1. REMOVE FRONT CONSOLE UPPER PANEL GARNISH Removal

2. REMOVE CONSOLE UPPER PANEL ASSEMBLY Removal

3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal

4. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

5. REMOVE CONSOLE BOX PLATE Removal

6. REMOVE CONSOLE BOX REGISTER ASSEMBLY Removal

7. REMOVE CONSOLE BOX ASSEMBLY Removal

8. REMOVE REAR CONSOLE ARMREST ASSEMBLY Disassembly

9. REMOVE UPPER CONSOLE BOX SUB-ASSEMBLY Disassembly

10. REMOVE POWER OUTLET SOCKET ASSEMBLY

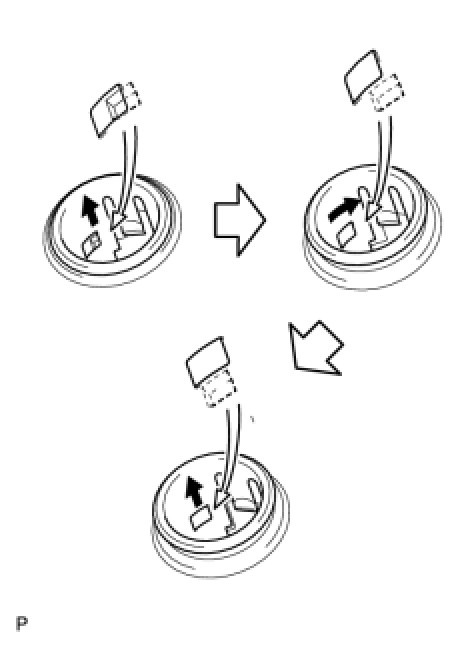

(a) Rotate the socket to disengage the notch.

(b) Pull out the socket halfway and rotate the socket until its protrusion is aligned with the groove of the cover.
