Disposal

TIRE AND WHEEL: TIRE PRESSURE WARNING VALVE AND TRANSMITTER: DISPOSAL

HINT
The tire pressure monitor valve is powered by a lithium battery. When disposing of the tire pressure sensor, remove the battery and dispose of it correctly.

1. DISPOSE OF TIRE PRESSURE WARNING VALVE SUB-ASSEMBLY

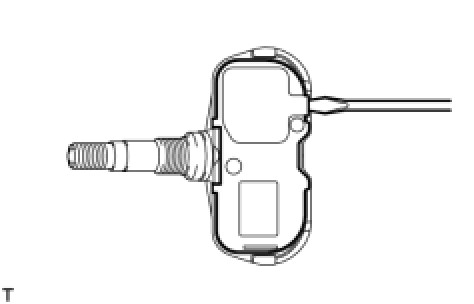

(a) Use the tip of a screwdriver to pry off the back cover.

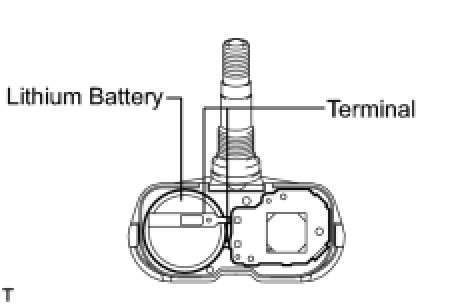

(b) The battery and base board covered with resin are exposed. While taking out the battery, cut the 2 terminals that connect the battery to the base board.
