Power Steering ECU Communication Stop Mode

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: Power Steering ECU Communication Stop Mode
- Power Steering ECU Communication Stop Mode

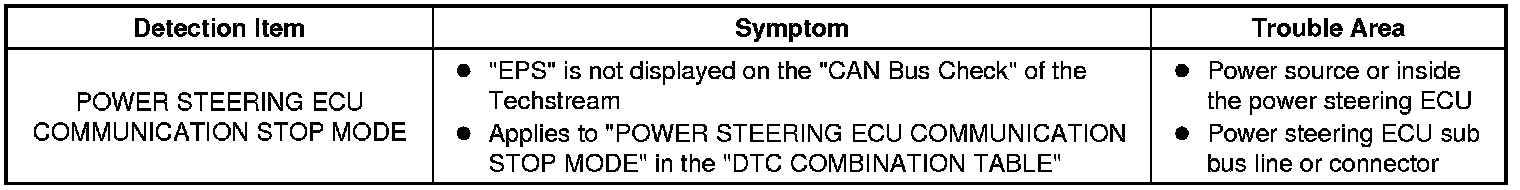

DESCRIPTION

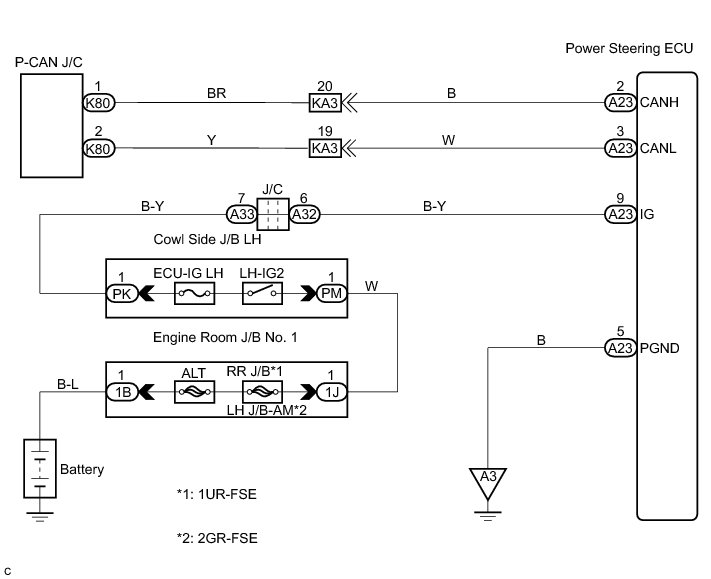

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

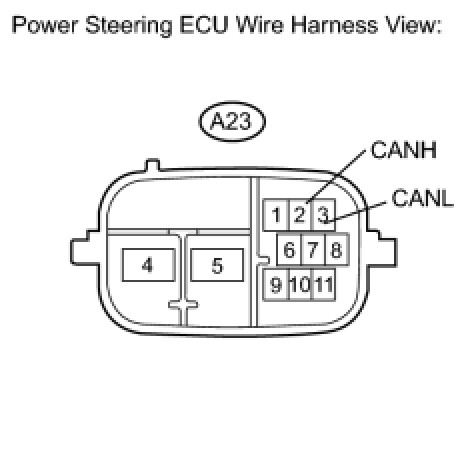

1. CHECK CAN BUS LINE FOR DISCONNECTION (POWER STEERING ECU SUB BUS LINE)

(a) Turn the engine switch off.

(b) Disconnect the power steering ECU connector (A23).

(c) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE POWER STEERING ECU SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)
OK -- Continue to next step.

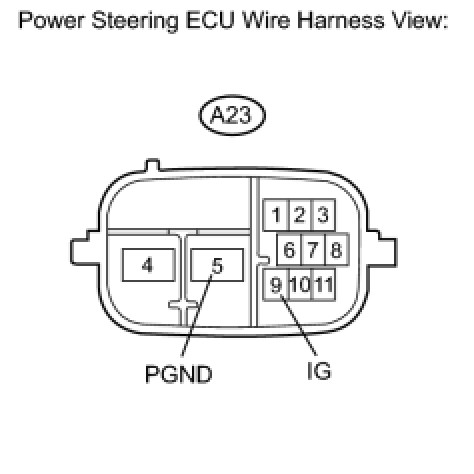

2. CHECK WIRE HARNESS (IG, PGND)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE POWER STEERING ECU
