Navigation ECU Communication Stop Mode

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: Navigation ECU Communication Stop Mode
- Navigation ECU Communication Stop Mode

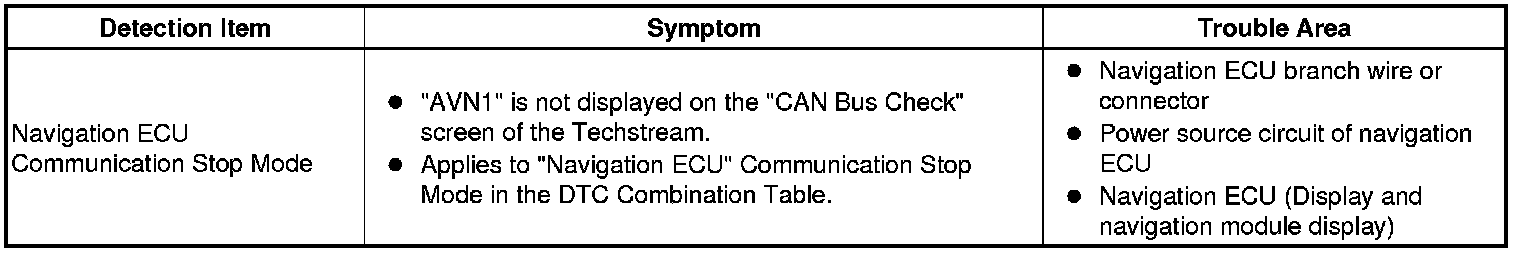

DESCRIPTION





HINT
"AVN1" refers to the circuit that includes the navigation ECU.

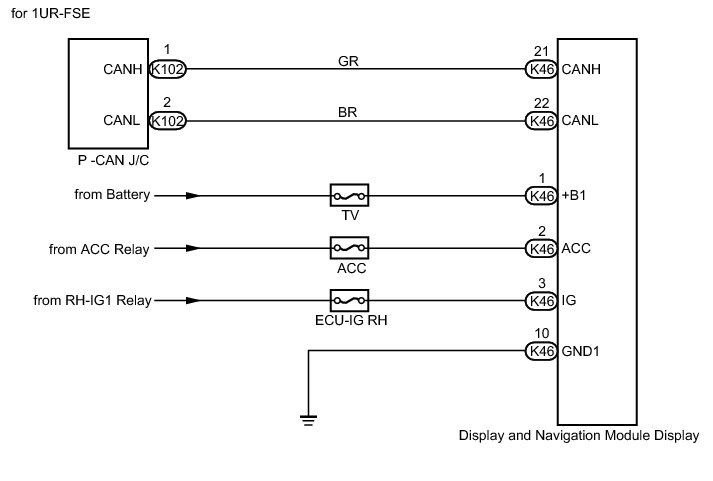

WIRING DIAGRAM









INSPECTION PROCEDURE

NOTICE:
* Turn the engine switch off before measuring the resistances between CAN bus main wires and between CAN bus branch wires.
* Turn the engine switch off before inspecting CAN bus wires for a ground short.
* After the engine switch is turned off, check that the key reminder warning system and light reminder warning system are not in operating.
* Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the engine switch, any other switches or the doors. If any doors need to be opened in order to check connectors, open the doors and leave them open.

HINT
Operating the engine switch, any switches, or any doors triggers related ECU and sensor communication with the CAN. This communication will cause the resistance value to change.

PROCEDURE

1. CHECK FOR OPEN IN CAN BUS WIRE (NAVIGATION ECU BRANCH WIRE)

(a) Turn the engine switch off.

(b) Disconnect the display and navigation module display (navigation ECU) connector (K46).





(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE CAN BUS BRANCH WIRE OR CONNECTOR (NAVIGATION ECU BRANCH WIRE)
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:

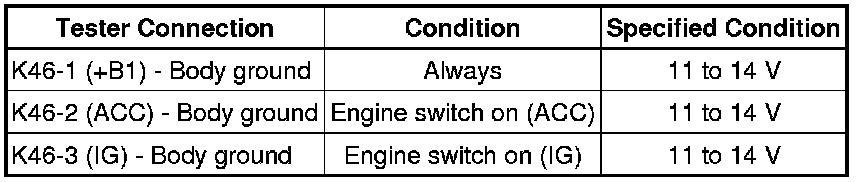

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

OK -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY (NAVIGATION ECU)
