Headlamp Alignment Sensor: Testing and Inspection

LIGHTING: HEIGHT CONTROL SENSOR: INSPECTION

1. REMOVE HEIGHT CONTROL SENSOR SUB-ASSEMBLY FRONT





(a) Connect the 3 dry cell batteries (1.5 V) in series.

(b) Remove the height control sensor.

(c) Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead from the battery to terminal 3.

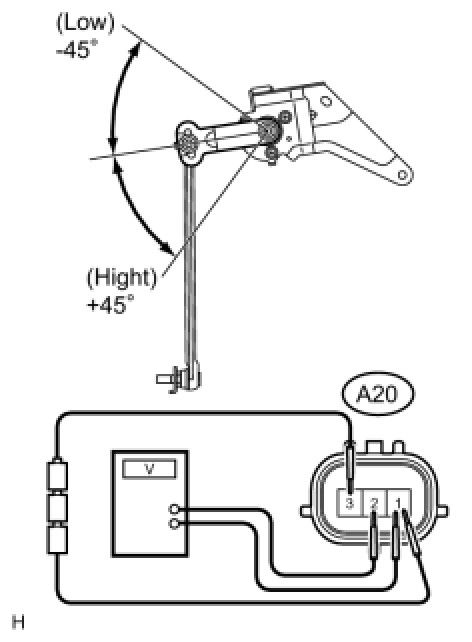

(d) Measure the voltage between terminals 2 and 1 while slowly moving the link up and down.

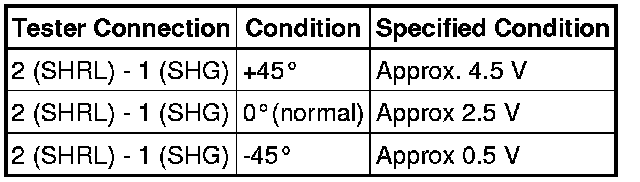

Standard voltage:





If the result is not as specified, replace the sensor.

2. REMOVE HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR





(a) Connect the 3 dry cell batteries (1.5 V) in series.

(b) Remove the height control sensor.

(c) Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead from the battery to terminal 3.

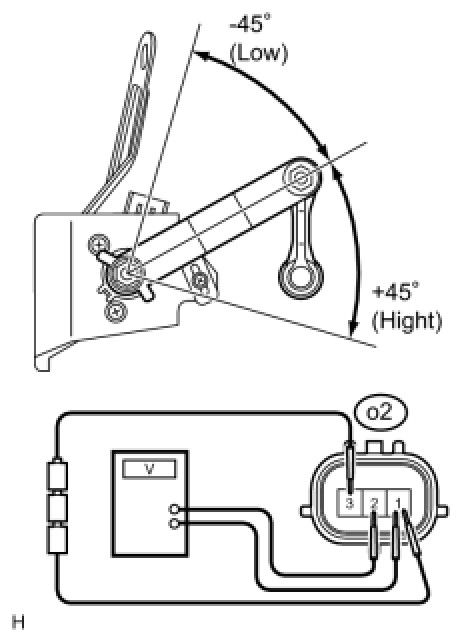

(d) Measure the voltage between terminals 2 and 1 while slowly moving the link up and down.

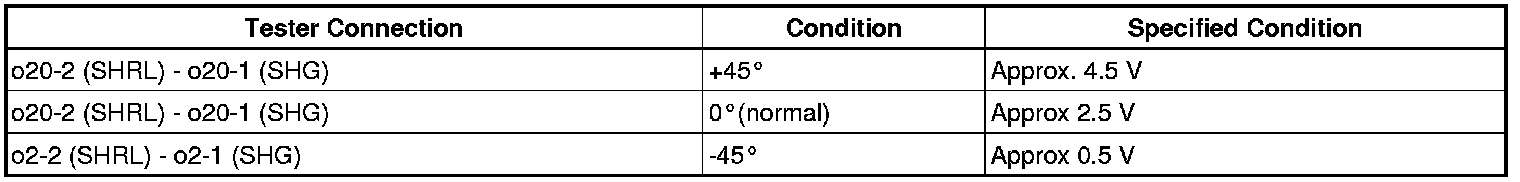

Standard voltage:





If the result is not as specified, replace the sensor.
