Installation

OTHER SYSTEM: CIGARETTE LIGHTER: INSTALLATION

1. INSTALL CIGARETTE LIGHTER ASSEMBLY

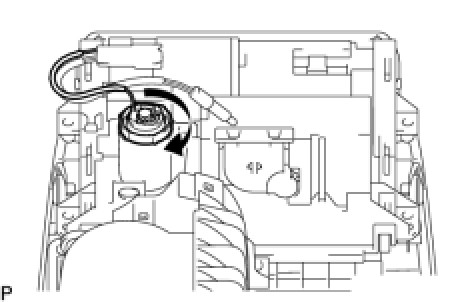

Rotate the ring nut in the direction indicated by the arrow mark and install the cigarette lighter to the console panel.





Rotate the socket body in the direction indicated by the arrow mark, and install the socket body to the cigarette lighter.

2. INSTALL CONSOLE UPPER PANEL ASSEMBLY Installation

3. INSTALL FRONT CONSOLE UPPER PANEL GARNISH Installation
