Radiator Cooling Fan Motor Relay: Testing and Inspection

2GR-FSE COOLING: COOLING FAN RELAY: ON-VEHICLE INSPECTION

1. CHECK COOLING FAN RELAY (FAN MAIN)





(a) Remove the relay from the engine room No. 1 relay block.

(b) Measure the resistance of the relay.

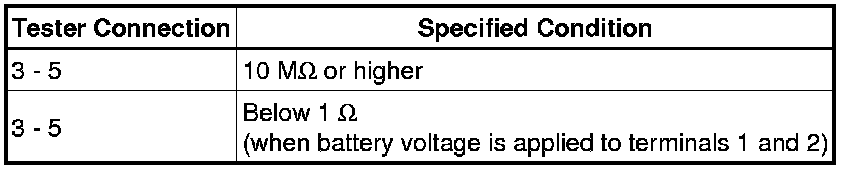

Standard resistance:





If the result is not as specified, replace the relay.

(c) Install the relay to the engine room No. 1 relay block.
