How To Proceed With Troubleshooting

CRUISE CONTROL: CRUISE CONTROL SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the cruise control system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. PROBLEM SYMPTOM CONFIRMATION

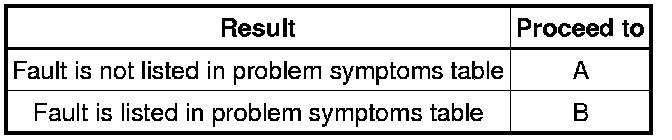

Result:





A -- GO TO STEP 3
B -- Continue to next step.

3. INSPECT BATTERY VOLTAGE

Standard Voltage:

11 to 14 V

If the voltage is below 11 V, replace or recharge the battery before proceeding to the next step.

NEXT -- Continue to next step.

4. CHECK MULTIPLEX COMMUNICATION SYSTEM*

Refer to how to proceed with troubleshooting How to Proceed With Troubleshooting.

(a) Check for output DTCs.

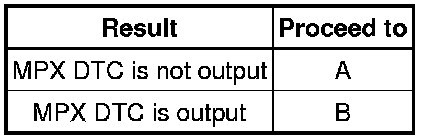

Result:





HINT
The ECM of this system is connected to the multiplex communication system. Therefore, before starting troubleshooting, make sure to check that there is no trouble in the multiplex communication system.

B -- PROCEED TO "MULTIPLEX COMMUNICATION SYSTEM"
A -- Continue to next step.

5. CHECK CAN COMMUNICATION SYSTEM*

Refer to the precaution CAN Communication System.

(a) Check for output DTCs.

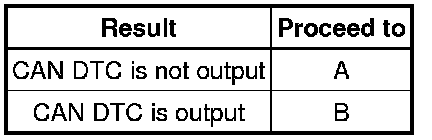

Result:





HINT
The ECM of this system is connected to the CAN communication system. Therefore, before starting troubleshooting, make sure to check that there is no trouble in the CAN communication system.

B -- PROCEED TO "CAN COMMUNICATION SYSTEM"
A -- Continue to next step.

6. DTC CHECK AND CLEAR*

Refer to the DTC CHECK / CLEAR Cruise Control System.

NEXT -- Continue to next step.

7. DTC CHECK (OTHER THAN MPX AND CAN SYSTEM DTC)*

Refer to the DTC CHECK / CLEAR Cruise Control System.

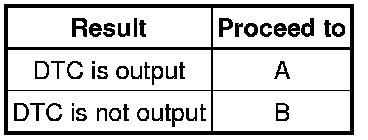

Result:





B -- GO TO STEP 9
A -- Continue to next step.

8. DTC CHART

Refer to the diagnostic trouble code chart Cruise Control System.

NEXT -- GO TO STEP 12

9. PROBLEM SYMPTOM SIMULATION

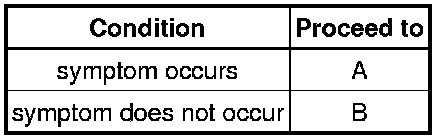

Result:





B -- GO TO STEP 11
A -- Continue to next step.

10. SYMPTOM SIMULATION

Refer to the electronic circuit inspection procedure Electronic Circuit Inspection Procedure.

NEXT -- Continue to next step.

11. PROBLEM SYMPTOMS TABLE

Refer to the problem symptoms table Cruise Control System.

NEXT -- Continue to next step.

12. CIRCUIT INSPECTION

Refer to the P0500 P0500.

Refer to the TC and CG terminal circuit TC and CG Terminal Circuit.

NEXT -- Continue to next step.

13. OVERALL ANALYSIS AND TROUBLE SHOOTING*

(a) Terminals of ECU Cruise Control System.

(b) Data List/Active Test Cruise Control System.

NEXT -- Continue to next step.

14. IDENTIFICATION OF PROBLEM

NEXT -- Continue to next step.

15. REPAIR OR REPLACE

NEXT -- Continue to next step.

16. CONFIRMATION TEST

NEXT -- END
