Removal

PARKING BRAKE: PARKING BRAKE PEDAL: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE FRONT SEAT ASSEMBLY

HINT
Refer to the instructions for Removal of the front seat assembly Removal.

3. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

4. REMOVE AIR NO.6 DUCT REAR

(a) Remove the 2 plugs, 2 screws and air No.6 duct rear.

5. REMOVE FRONT DOOR SCUFF PLATE Removal

6. REMOVE FRONT DOOR OPENING TRIM COVER

7. REMOVE REAR DOOR SCUFF PLATE Removal

8. REMOVE CENTER PILLAR LH GARNISH LOWER Removal

9. REMOVE CONSOLE UPPER PANEL GARNISH FRONT Removal

10. REMOVE FRONT ASH RECEPTACLE ASSEMBLY Removal

11. REMOVE INSTRUMENT PANEL FINISH LH PANEL END Removal

12. REMOVE INSTRUMENT PANEL FINISH RH PANEL END Removal

13. REMOVE CONSOLE BOX PLATE Removal

14. REMOVE CONSOLE BOX REGISTER ASSEMBLY Removal

15. REMOVE CONSOLE BOX Removal

16. REMOVE INSTRUMENT SIDE PANEL Removal

17. REMOVE INSTRUMENT PANEL UNDER NO.1 COVER SUB-ASSEMBLY Removal

18. REMOVE INSTRUMENT PANEL SAFETY NO.1 PAD SUB-ASSEMBLY Removal

19. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY Removal

20. REMOVE ACCELERATOR PEDAL (for 2WD)

21. REMOVE FRONT FLOOR SILENCER PAD (for 2WD)

22. REMOVE AIR NO.2 DUCT REAR

23. REMOVE FRONT FLOOR BRACE CENTER (for 2GR-FSE) Removal

24. DISCONNECT HEATED OXYGEN SENSOR (for 2GR-FSE) Removal

25. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2GR-FSE) Removal

26. REMOVE FRONT FLOOR HEAT NO.1 INSULATOR (for 2GR-FSE) Removal

27. REMOVE REAR PROPELLER SHAFT ASSEMBLY (for 2GR-FSE) Removal

28. REMOVE FRONT FLOOR COVER CENTER LH (for 1UR-FSE)

29. REMOVE FRONT FLOOR COVER CENTER RH (for 1UR-FSE)

30. REMOVE REAR NO. 1 FLOOR PANEL BRACE (for 1UR-FSE) Removal

31. REMOVE FRONT CENTER FLOOR BRACE (for 1UR-FSE) Removal

32. DISCONNECT HEATED OXYGEN SENSOR (for 1UR-FSE) Removal

33. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 1UR-FSE) Removal

34. REMOVE FRONT FLOOR HEAT NO. 1 INSULATOR (for 1UR-FSE) Removal

35. REMOVE AIR GUIDE PLATE OUTSIDE RH (for 1UR-FSE) Removal

36. REMOVE REAR PROPELLER SHAFT ASSEMBLY (for 1UR-FSE) Removal

37. REMOVE DASH PANEL INSULATOR NO.3 PAD

38. REMOVE CENTER AIRBAG SENSOR ASSEMBLY Removal

39. REMOVE FRONT FLOOR REAR UPPER SUB PANEL

(a) Turn back the floor carpet in order to remove the front floor rear upper sub panel.

(b) Disengage the 6 clamps and remove the 4 bolts and front floor rear upper sub panel.

40. REMOVE PARKING BRAKE PEDAL

(a) Remove the parking brake return with damper spring.

(b) Remove the 2 bolts and separate the parking brake No.2 and No.3 cable assemblies from the parking brake equalizer.

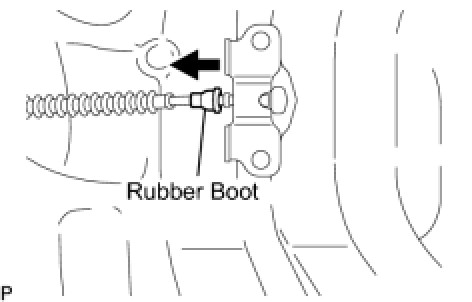

(d) Remove the parking brake equalizer from the parking brake No.1 cable assembly.

(e) 2WD:

Remove the 2 bolts and 3 nuts, and separate the parking brake No.1 cable assembly from the body.

(f) 4WD:

Remove the 2 bolts and 4 nuts, and separate the parking brake No.1 cable assembly from the body.

(g) Remove the 2 nuts and separate the instrument panel junction block assembly.

(h) Disconnect the connector.

(i) Remove the 3 nuts and parking brake pedal from the body.
