Front Passenger Side Power Mirror Cannot Be Adjusted With Power Mirror Switch

MIRROR: POWER MIRROR CONTROL SYSTEM: Front Passenger Side Power Mirror cannot be Adjusted with Power Mirror Switch
- Front Passenger Side Power Mirror cannot be Adjusted with Power Mirror Switch

SYSTEM DESCRIPTION

This circuit detects the conditions of the mirror control switch.

The integration control and panel assembly sends information about the operating condition of the mirror switch (switch input signals) through the BEAN line. Then the switch input signals are sent to the front multiplex network door ECU RH. Mirror adjustment is controlled by the front multiplex network door ECU RH.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK POWER MIRROR CONTROL FUNCTION

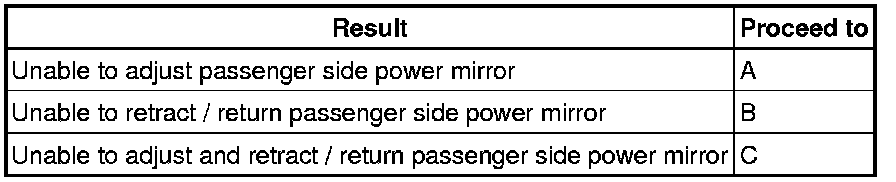

(a) Using the outer mirror switch, check if the passenger side power mirror can be adjusted. Using the retract switch, check if the passenger side power mirror can be retracted and returned.

Result:





C -- CHECK FUSE (FR DOOR RH)

B -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
A -- Continue to next step.

2. READ VALUE USING TECHSTREAM (MIRROR MASTER SWITCH AND MIRROR CONTROL SWITCH)

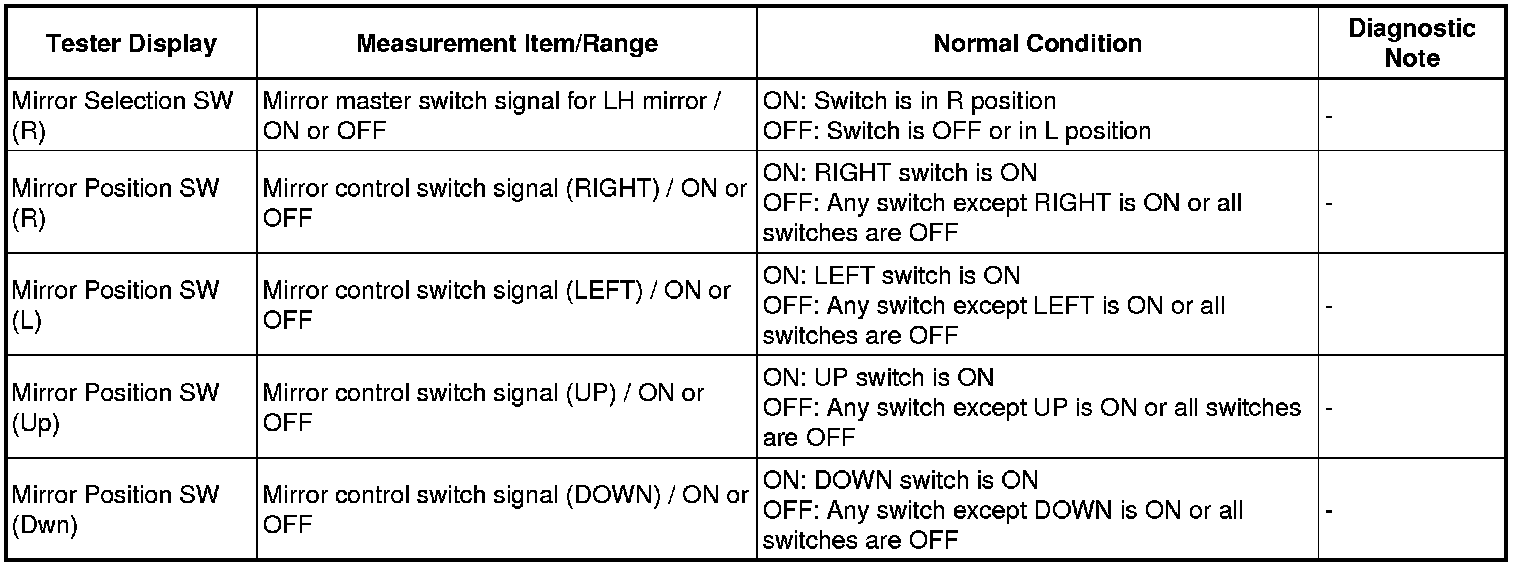

(a) Check the DATA LIST for proper functioning of the mirror master switch and mirror control switch.

Integration control and panel assembly:





NG -- REPLACE INTEGRATION CONTROL AND PANEL ASSEMBLY Removal
OK -- Continue to next step.

3. PERFORM ACTIVE TEST USING TECHSTREAM (POWER MIRROR CONTROL FUNCTION)

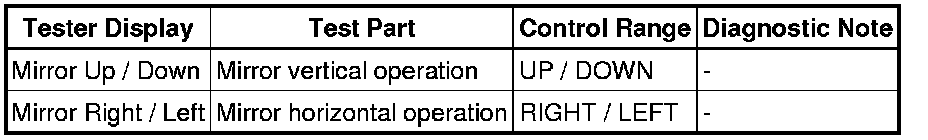

(a) Select the ACTIVE TEST, use Techstream to generate a control command, and then check the power mirror control function.

Front multiplex network door ECU RH:

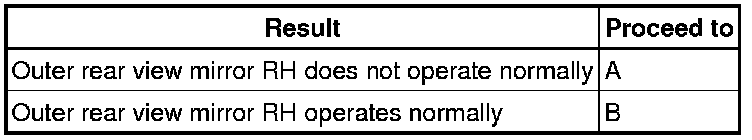

Result:





B -- REPLACE FRONT MULTIPLEX NETWORK DOOR ECU RH Removal
A -- Continue to next step.

4. INSPECT OUTER MIRROR ACTUATOR ASSEMBLY RH (LEFT / RIGHT MOTOR, UP / DOWN MOTOR)





(a) Remove the mirror RH.

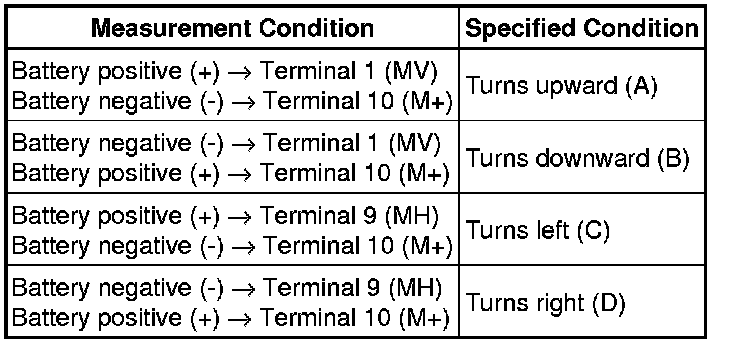

(b) Apply battery voltage and check the operation of the power mirror.

OK:





NG -- REPLACE OUTER MIRROR ACTUATOR ASSEMBLY RH Removal

OK -- REPLACE FRONT MULTIPLEX NETWORK DOOR ECU RH Removal

5. CHECK FUSE (FR DOOR RH)

(a) Remove the FR DOOR RH fuse from the cowl side junction block RH.

(b) Measure the resistance of the fuse.

Standard resistance:

Below 1 Ohms

NG -- REPLACE FUSE
OK -- Continue to next step.

6. CHECK WIRE HARNESS (FRONT MULTIPLEX NETWORK DOOR ECU RH - BATTERY AND BODY GROUND)





(a) Disconnect the M4 ECU connector.

(b) Measure the voltage and resistance of the wire harness side connector.

Standard voltage:





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR

OK -- REPLACE FRONT MULTIPLEX NETWORK DOOR ECU RH Removal
