Passenger Side J/B ECU Power Source Circuit

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER SYSTEM: Passenger Side J/B ECU Power Source Circuit
- Passenger Side J/B ECU Power Source Circuit

DESCRIPTION

* This circuit provides power to operate the multiplex network body ECU.

HINT
Below, the passenger side junction block ECU is referred to as the multiplex network body ECU.

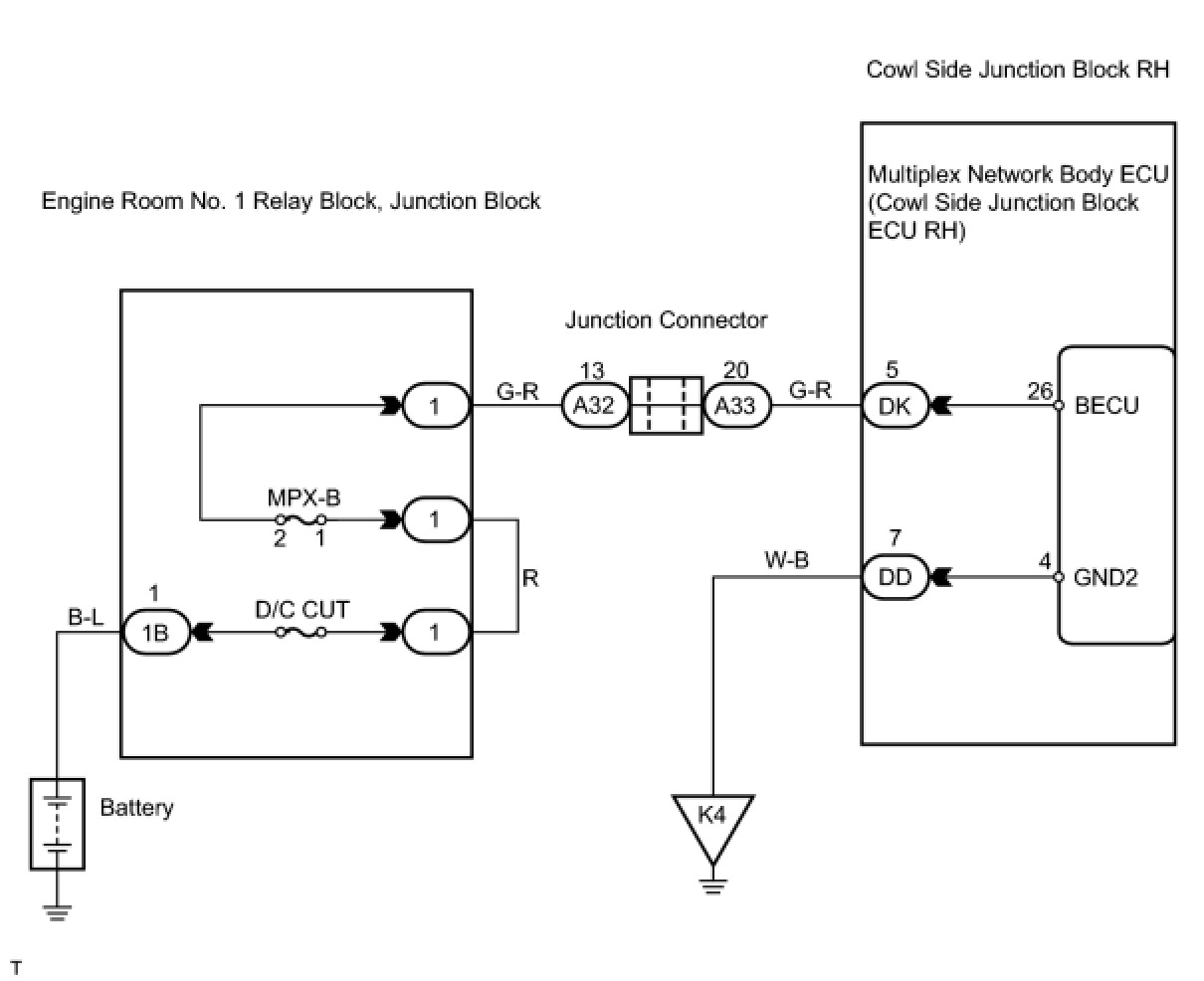

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (MPX-B, D/C CUT)

(a) Remove the MPX-B and D/C CUT fuses from the engine room No. 1 relay block.

(b) Measure the resistance of the fuses.

Standard resistance:

Below 1 Ohms

NG -- REPLACE FUSE
OK -- Continue to next step.

2. CHECK WIRE HARNESS (COWL SIDE JUNCTION BLOCK RH - BATTERY AND BODY GROUND)

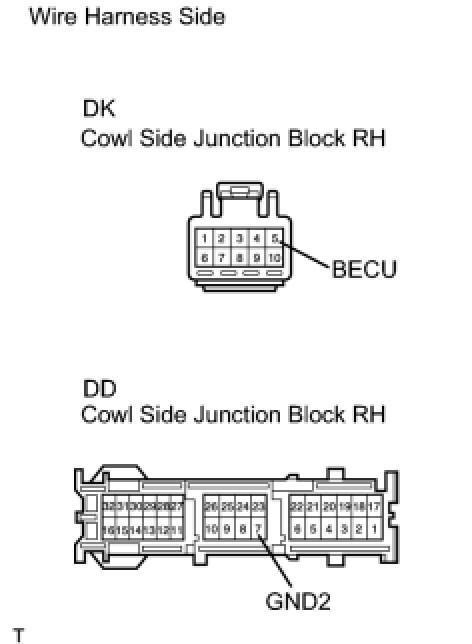

(a) Disconnect the DK and DD junction block connectors.

(b) Measure the voltage and resistance of the wire harness side connectors.

Standard voltage:





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
