Multi-Display Power Source Circuit

AUDIO / VISUAL: ELECTRO MULTI VISION SYSTEM: Multi-display Power Source Circuit
- Multi-display Power Source Circuit

DESCRIPTION

This is the power source circuit to operate the display and navigation module display.

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (DISPLAY AND NAVIGATION MODULE DISPLAY POWER SOURCE)

(a) Disconnect the K46 display and navigation module display connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Measure the voltage according to the value(s) in the table below.

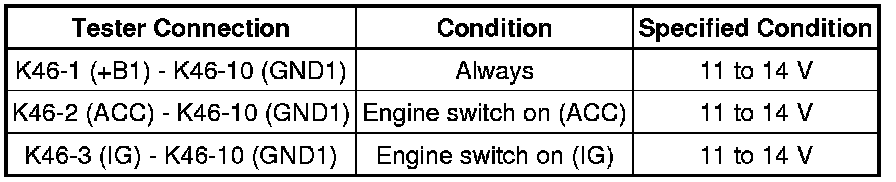

Standard Voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
