P2111

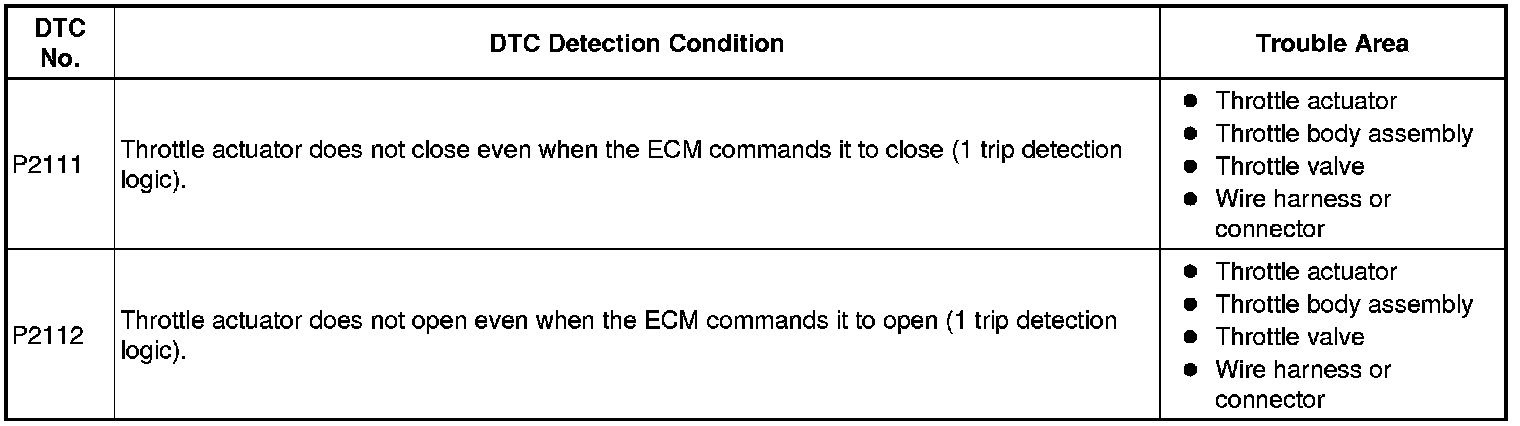

2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2111, P2112: Throttle Actuator Control System - Stuck Open
P2112 - Throttle Actuator Control System - Stuck Closed
DESCRIPTION
The throttle actuator is operated by the ECM, and opens and closes the throttle valve using gears. The opening angle of the throttle valve is detected by the throttle position sensor, which is mounted on the throttle body. The throttle position sensor provides feedback to the ECM so that the ECM can control the throttle actuator (throttle valve) appropriately in response to driver inputs.
HINT
This ETCS (Electronic Throttle Control System) does not use a throttle cable.
MONITOR DESCRIPTION
The ECM determines that there is a malfunction in the ETCS when the throttle valve remains at a fixed angle despite a high drive current from the ECM. The ECM illuminates the MIL and sets a DTC.
If the malfunction is not repaired successfully, a DTC is stored when the accelerator pedal is fully depressed and released quickly (to fully open and close the throttle valve) after the engine is next started.

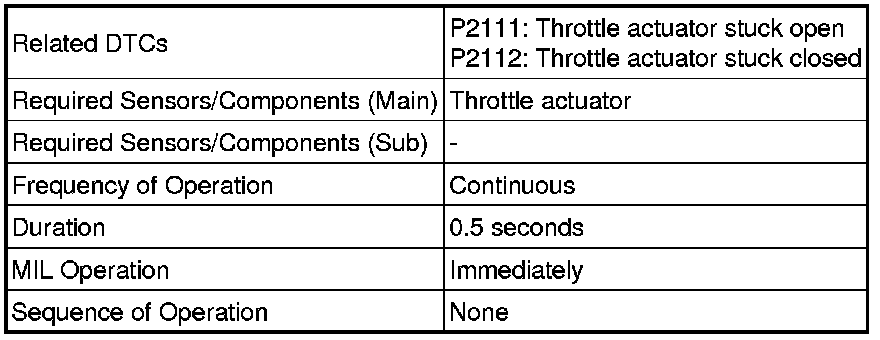

MONITOR STRATEGY

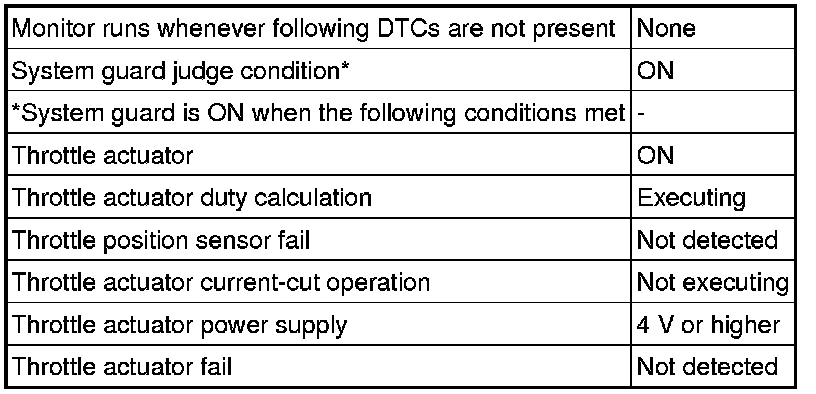

TYPICAL ENABLING CONDITIONS
All
P2111 (Throttle Actuator Stuck Open)
P2112 (Throttle Actuator Stuck Closed)

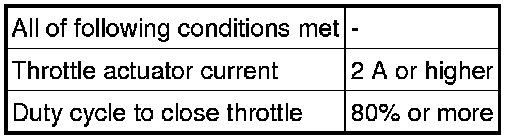

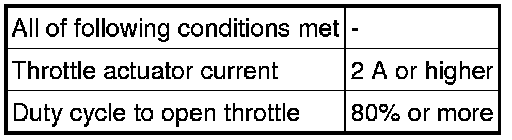

TYPICAL MALFUNCTION THRESHOLDS

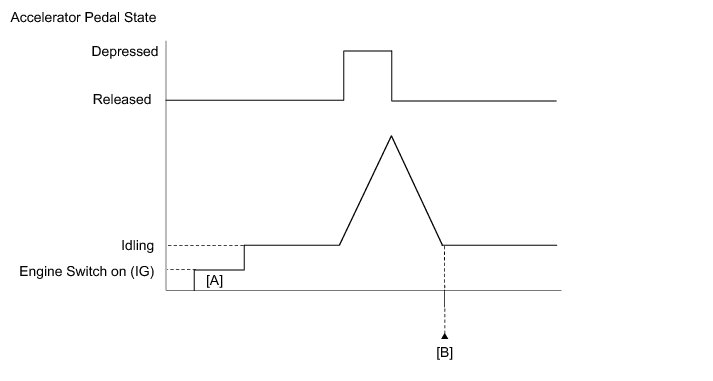

CONFIRMATION DRIVING PATTERN
1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
4. Turn the engine switch off and wait for 30 seconds.
5. Turn the engine switch on (IG) and turn the Techstream on [A].
6. Start the engine and fully depress and release the accelerator pedal quickly (to fully open and close the throttle valve).
7. Enter the following menus: Powertrain / Engine / Trouble Codes.
8. Read the DTC [B].
HINT
- If a DTC is output, the system is malfunctioning.
- If a DTC is not output, perform the following procedure.
9. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
10. Input the DTC: P2111 or P2112.
11. Check the DTC judgment result.
HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
12. If the test result is INCOMPLETE or UNKNOWN and no DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.
HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
FAIL-SAFE
When either of these DTCs or other DTCs relating to electronic throttle control system malfunctions are stored, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator and the throttle valve is returned to a 6° throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing in accordance with the accelerator pedal position to allow the vehicle to continue at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.
The ECM continues operating in fail-safe mode until a pass condition is detected, and the engine switch is then turned off.
WIRING DIAGRAM
Refer to DTC P2102 P2102.
INSPECTION PROCEDURE
HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.
PROCEDURE
1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P2111 OR P2112)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine / Trouble Codes.
(e) Read DTCs.

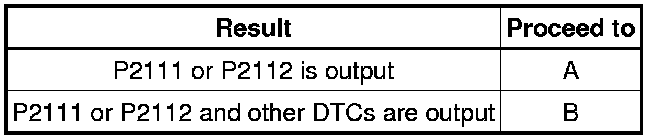

Result
HINT
If any DTCs other than P2111 or P2112 are output, troubleshoot those DTCs first.
B -- GO TO DTC CHART SFI System
A -- Continue to next step.
2. INSPECT THROTTLE BODY ASSEMBLY (VISUALLY CHECK THROTTLE VALVE)
(a) Check for contamination between the throttle valve and housing. If necessary, clean the throttle body. Also, check that the throttle valve moves smoothly.
OK:
Throttle valve is not contaminated with foreign objects and moves smoothly.
NG -- REPLACE THROTTLE BODY ASSEMBLY
OK -- Continue to next step.
3. READ VALUE USING TECHSTREAM (THROTTLE POSITION)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Clear DTCs Reading and Clearing Diagnostic Trouble Codes.
(e) Turn the engine switch off and wait for at least 30 seconds.
(f) Turn the engine switch on (IG).
(g) Enter the following menus: Powertrain / Engine / Data List / All Data / Throttle Position No. 1, Throttle Position No. 2 and Throttle Position Command.
(h) Check the values displayed on the Techstream while wiggling the ECM wire harness.
(i) Enter the following menus: Powertrain / Engine / Trouble Codes.
(j) Check for DTCs.

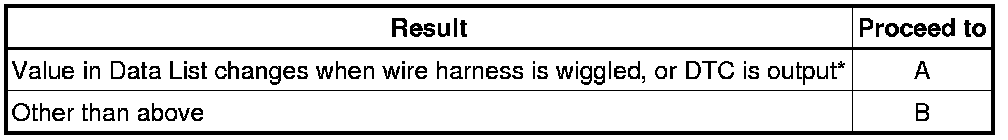

Result
*: As the DTC was stored due to a change in the contact resistance of the connector, repair or replace the wire harness or connector Electronic Circuit Inspection Procedure.
B -- CHECK WHETHER DTC OUTPUT RECURS (DTC P2111 OR P2112)
A -- REPAIR OR REPLACE HARNESS OR CONNECTOR
4. REPLACE THROTTLE BODY ASSEMBLY
(a) Replace the throttle body assembly Removal.
NEXT -- Continue to next step.
5. CHECK WHETHER DTC OUTPUT RECURS (DTC P2111 OR P2112)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream on.
(d) Clear DTCs Reading and Clearing Diagnostic Trouble Codes.
(e) Start the engine, and then fully depress and release the accelerator pedal quickly to fully open and close the throttle valve.
(f) Enter the following menus: Powertrain / Engine / Trouble Codes.
(g) Read DTCs.

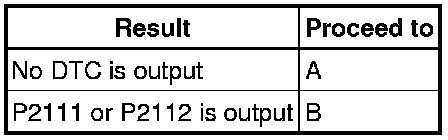

Result
B -- REPLACE ECM Removal
A -- END
