P1235

2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P1235: High Pressure Fuel Pump Circuit

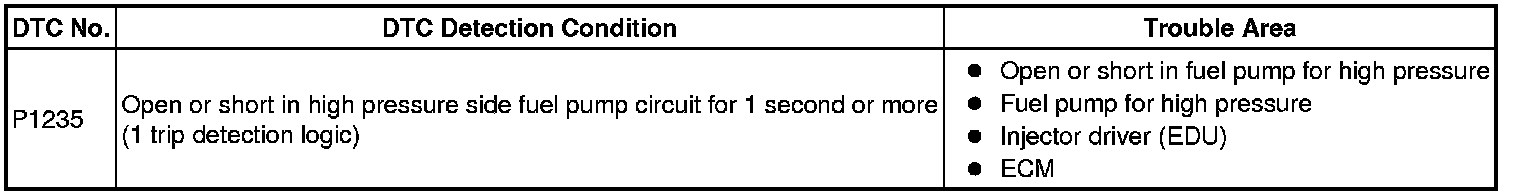

P1235 - High Pressure Fuel Pump Circuit

MONITOR DESCRIPTION

The high pressure side fuel pump is attached to the insulator, which is attached to the cylinder head cover. The pump activates according to the position of the cam on the exhaust side camshaft (right bank).

The fuel pump for high pressure increases the pressure of the fuel supplied from the fuel pump in the fuel tank to 4000 to 13000 kPa (40.8 to 132.6 kgf/cm2, 580 to 1885 psi) according to the operating condition, and it feeds the fuel to the fuel delivery pipe.

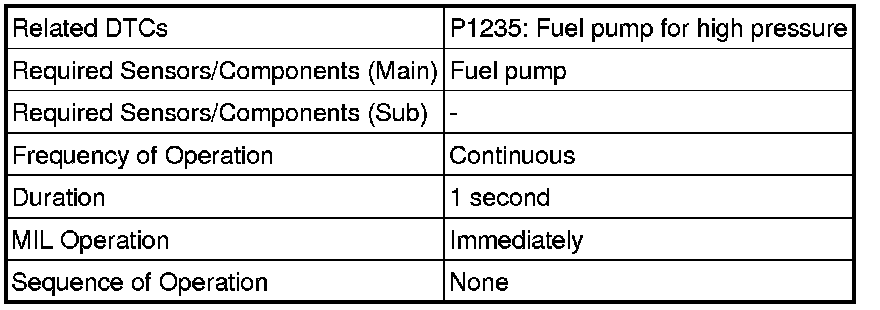

MONITOR STRATEGY

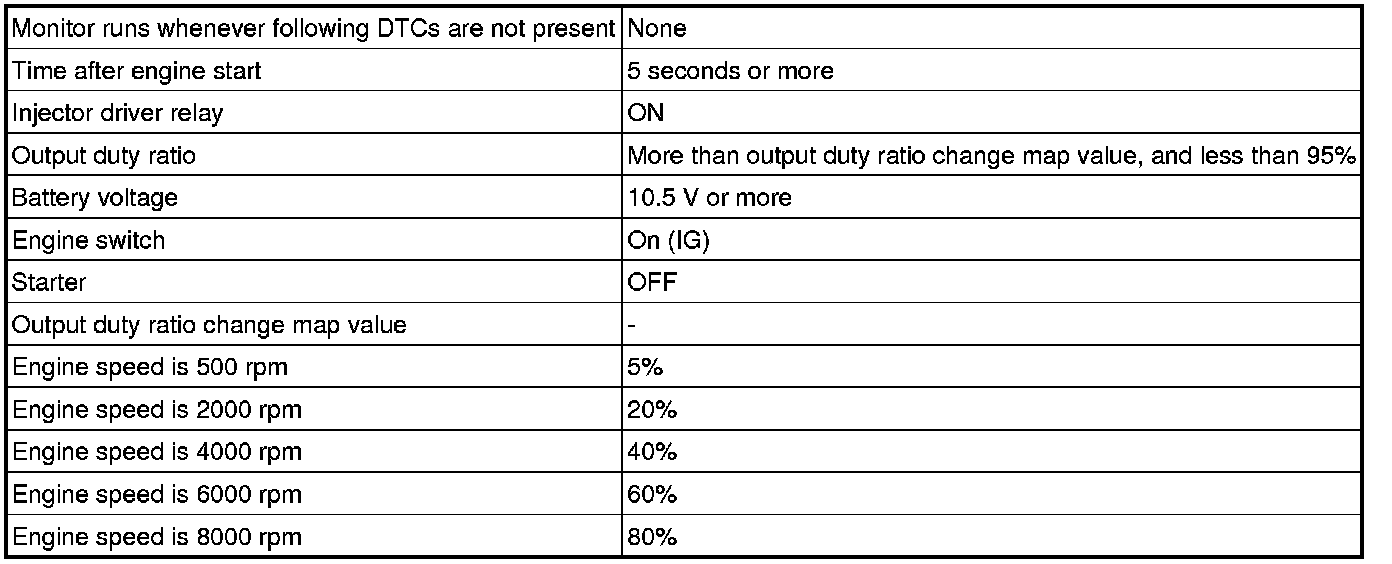

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the engine switch on (IG) and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

4. Turn the engine switch off and wait for 30 seconds.

5. Turn the engine switch on (IG) and turn the Techstream on [A].

6. Start the engine.

7. Idle the engine for 10 seconds [B].

8. Enter the following menus: Powertrain / Engine / Trouble Codes.

9. Read the DTCs [C].

HINT
- If a DTC is output, the system is malfunctioning.
- If a DTC is not output, perform the following procedure.

10. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

11. Input the DTC: P1235.

12. Check the DTC judgment result.





HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform step [B] again.

13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

14. Check the DTC judgment result.

HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.

15. If the test result is INCOMPLETE or UNKNOWN and no DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

WIRING DIAGRAM





INSPECTION PROCEDURE

HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.

PROCEDURE

1. INSPECT FUEL PUMP FOR HIGH PRESSURE

(a) Inspect the fuel pump for high pressure Fuel Pump (for High Pressure).

NG -- REPLACE FUEL PUMP FOR HIGH PRESSURE Removal
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (INJECTOR DRIVER - FUEL PUMP FOR HIGH PRESSURE)

(a) Disconnect the E54 injector driver (EDU) connector.

(b) Disconnect the E73 fuel pump for high pressure connector.

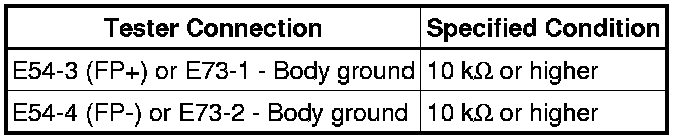

(c) Measure the resistance according to the value(s) in the table below.

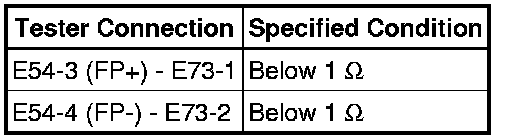

Standard resistance (Check for open):





Standard resistance (Check for short):





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (INJECTOR DRIVER - ECM)

(a) Disconnect the E45 ECM connector.

(b) Disconnect the E53 injector driver (EDU) connector.

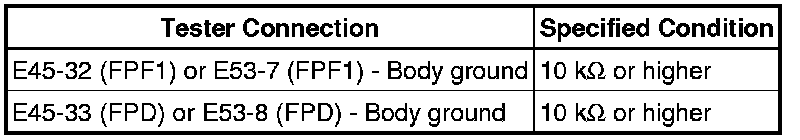

(c) Measure the resistance according to the value(s) in the table below.

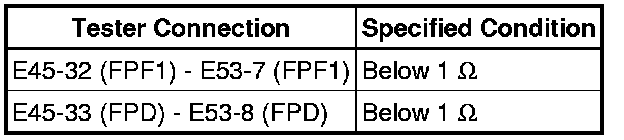

Standard resistance (Check for open):





Standard resistance (Check for short):





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK ECM (FPD AND FPF1 TERMINAL)

(a) Inspect the ECM using an oscilloscope.

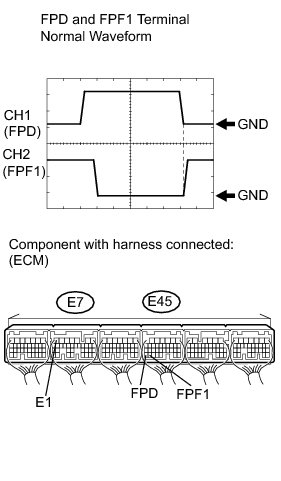

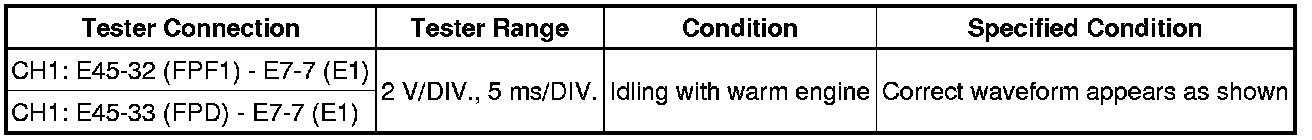

(1) While the engine is warm and idling, check the waveform the terminals of the ECM connector.





Standard Voltage:





HINT
FPD terminal waveform is output only right after the engine starts.

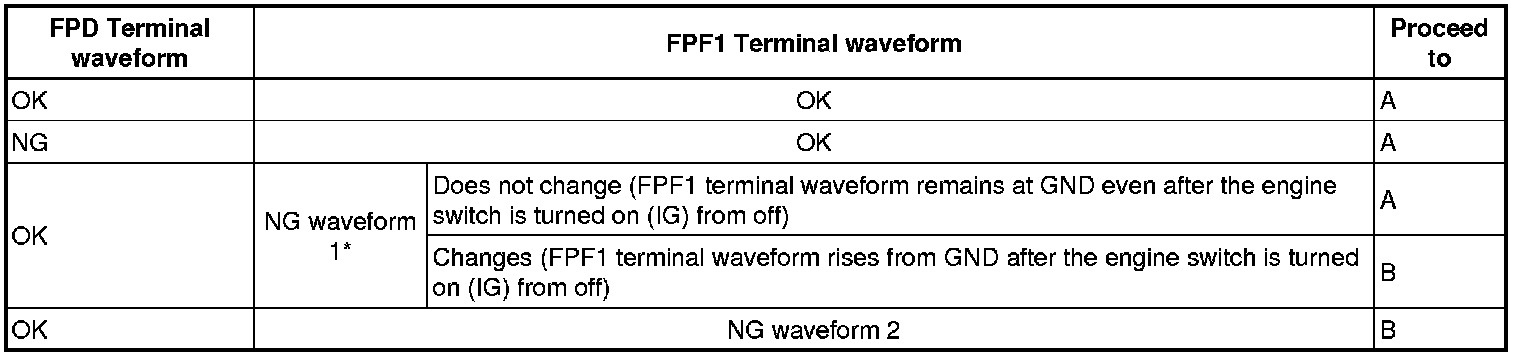

Result:





HINT

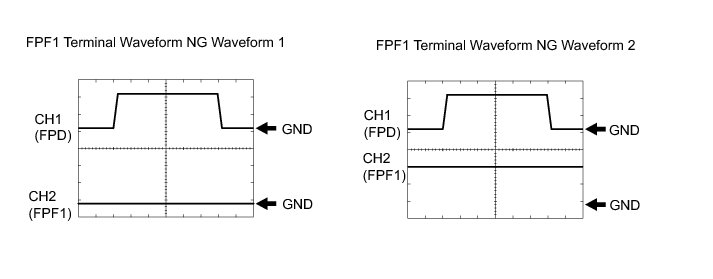

*: If the FPF1 terminal waveform is similar to the FPF1 terminal waveform NG waveform 1 shown in the illustration, stop the engine and disconnect the injector driver connector. Then turn the engine switch on (IG) again and check the differences between this FPF1 terminal waveform and the previous one.

B -- REPLACE INJECTOR DRIVER Removal

A -- REPLACE ECM Removal
