Engine Control System: SFI System
2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0724: Brake Switch "B" Circuit High
P0724 - Brake Switch "B" Circuit High

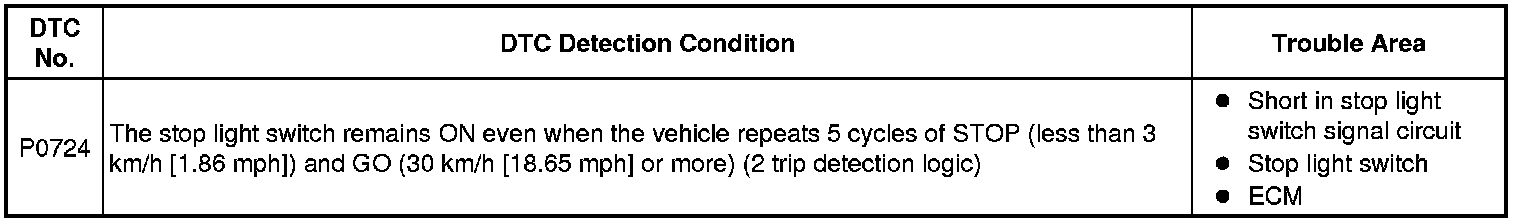

DESCRIPTION
The purpose of this circuit is to prevent the engine from stalling, while driving in lock-up condition, when brakes are suddenly applied.
When the brake pedal is depressed, this switch sends a signal to the ECM. Then the ECM cancels the operation of the lock-up clutch while braking is in progress.
MONITOR DESCRIPTION
This DTC indicates that the stop light switch remains on. When the stop light switch remains on during "stop and go" driving, the ECM interprets this as a fault in the stop light switch, the MIL comes on and the ECM stores the DTC. The vehicle must stop (less than 3 km/h [1.86 mph]) and go (30 km/h [18.65 mph] or more) 5 times during 2 driving cycles, in order to detect a malfunction.

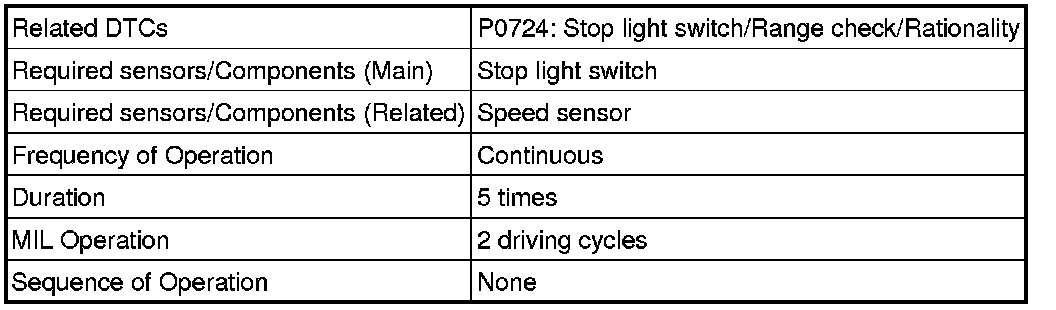

MONITOR STRATEGY

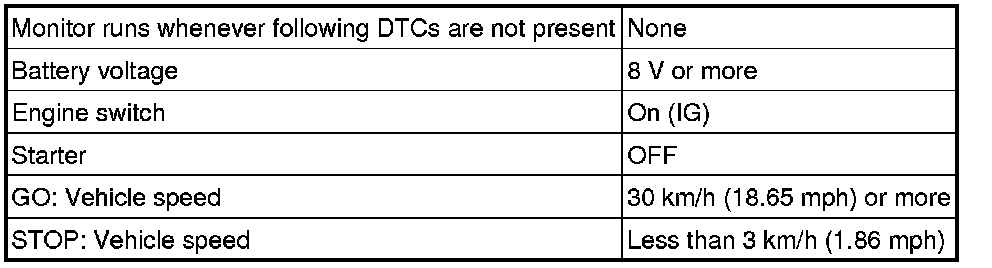

TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS

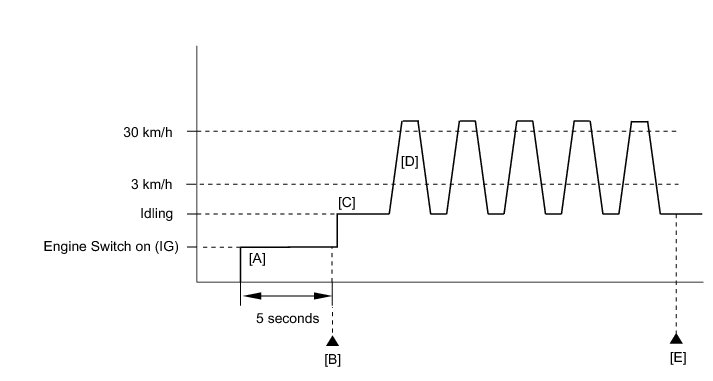

CONFIRMATION DRIVING PATTERN
1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
4. Turn the engine switch off and wait for 30 seconds.
5. Turn the engine switch on (IG) and turn the Techstream on [A].
6. Wait 5 seconds after clear the DTCs.
7. Enter the following menus: Powertrain / Engine / Trouble Codes / Pending.
8. Read the pending DTC [B].
HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
9. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
10. Input the DTC: P0724.
11. Check the DTC judgment result.
CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.
HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [C] through [E].
12. Start the engine [C].
13. Accelerate the vehicle to 30 km/h (18.6 mph) or more, depress the brake pedal and decelerate the vehicle to 3 km/h (1.86 mph) or less [D]. Repeat step [D] 5 times.
14. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
15. Check the DTC judgment result [E].
HINT
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows NORMAL, the system is normal.
16. If the test result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.
HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
WIRING DIAGRAM
Refer to DTC P0504 P0504.
INSPECTION PROCEDURE
HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.
PROCEDURE
1. READ VALUE USING TECHSTREAM (STOP LIGHT SWITCH)
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG) and turn the Techstream on.

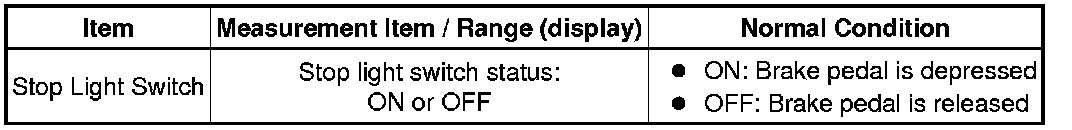

(c) Enter the following menus: Powertrain / Engine / Data List / Stop Light Switch.
(d) Read the values displayed on the Techstream.
OK:
OK -- CHECK FOR INTERMITTENT PROBLEMS
NG -- Continue to next step.
2. INSPECT STOP LIGHT SWITCH P0504
NG -- REPLACE STOP LIGHT SWITCH
OK -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH - ECM) P0504
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE ECM Removal
