Intuitive Parking Assist System

PARK ASSIST / MONITORING: INTUITIVE PARKING ASSIST SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

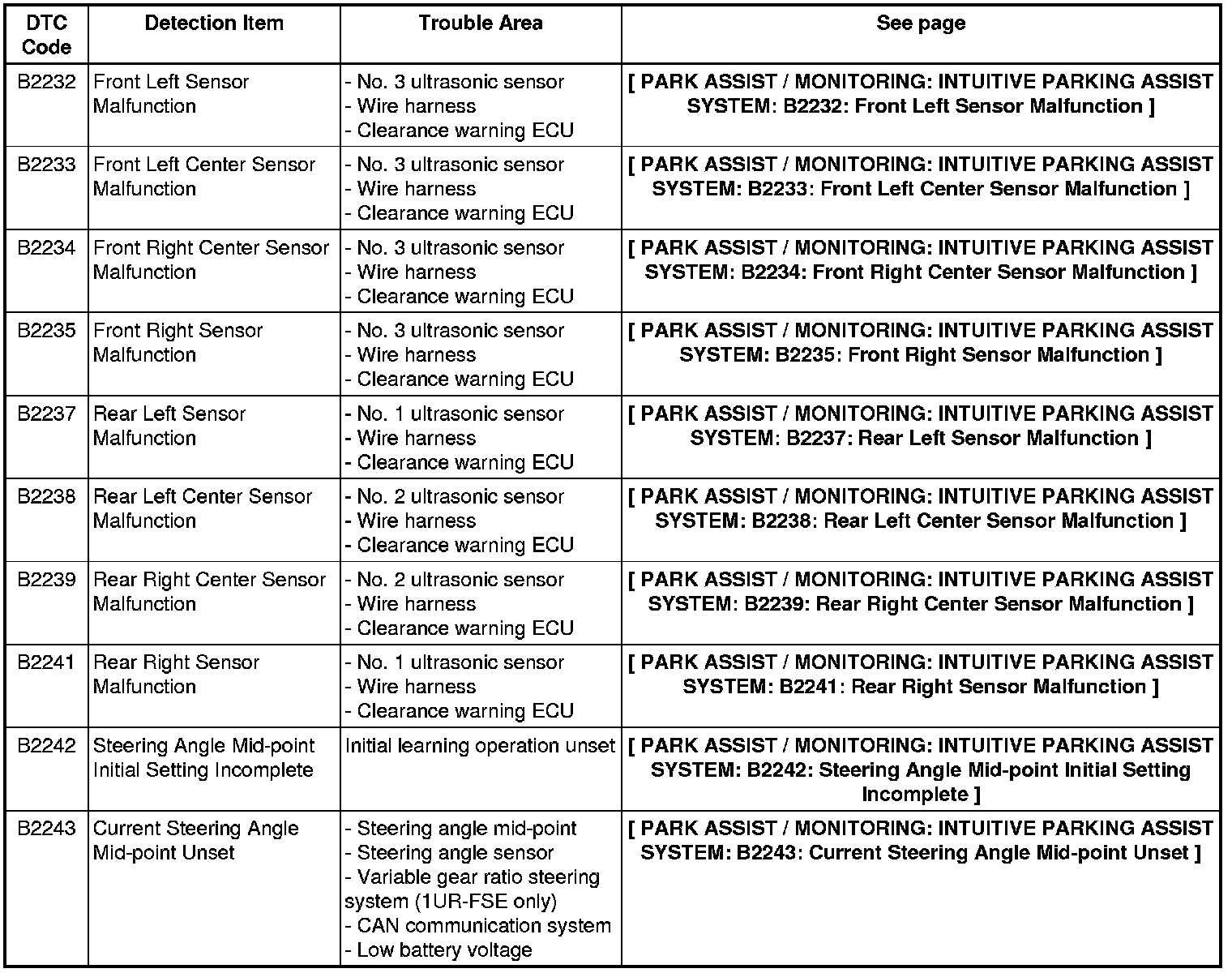

If a trouble code is displayed during the DTC check, check the circuit listed for that code in the table below and proceed to the appropriate page.

Intuitive Parking Assist System
