Automatic Transmission System - AA80E
AA80E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
* If a DTC is displayed during the DTC check, check the parts listed in the table below and proceed to the "See page" given.
* If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Trouble Area" column of the table.
* *1: "Comes on" means the Malfunction Indicator Lamp (MIL) illuminates.
* *2: "DTC stored" means the TCM memorizes the malfunction code if the TCM detects the DTC detection condition.
* These DTCs may be output when the clutch, brake, gear components, etc., inside the automatic transmission are damaged.

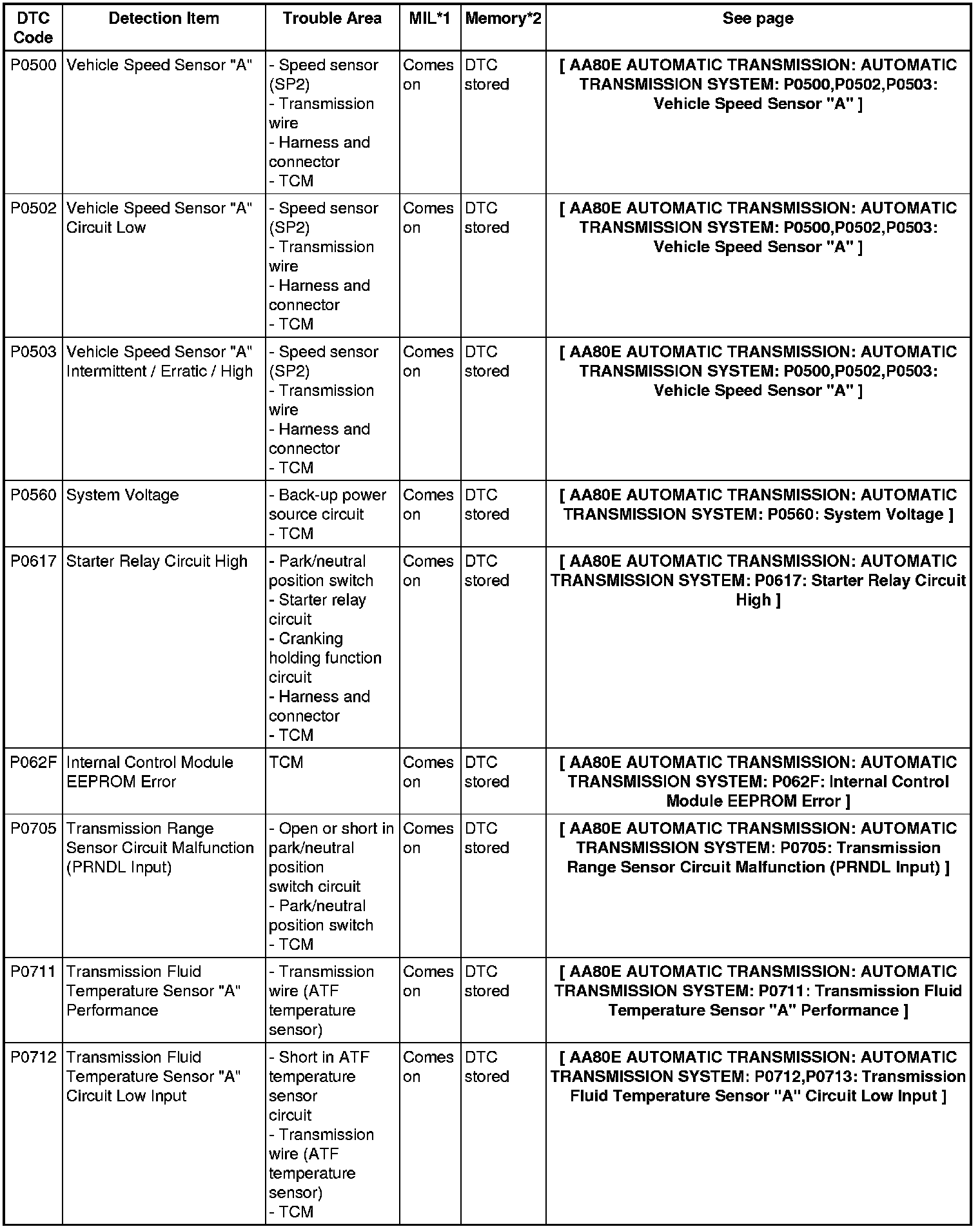

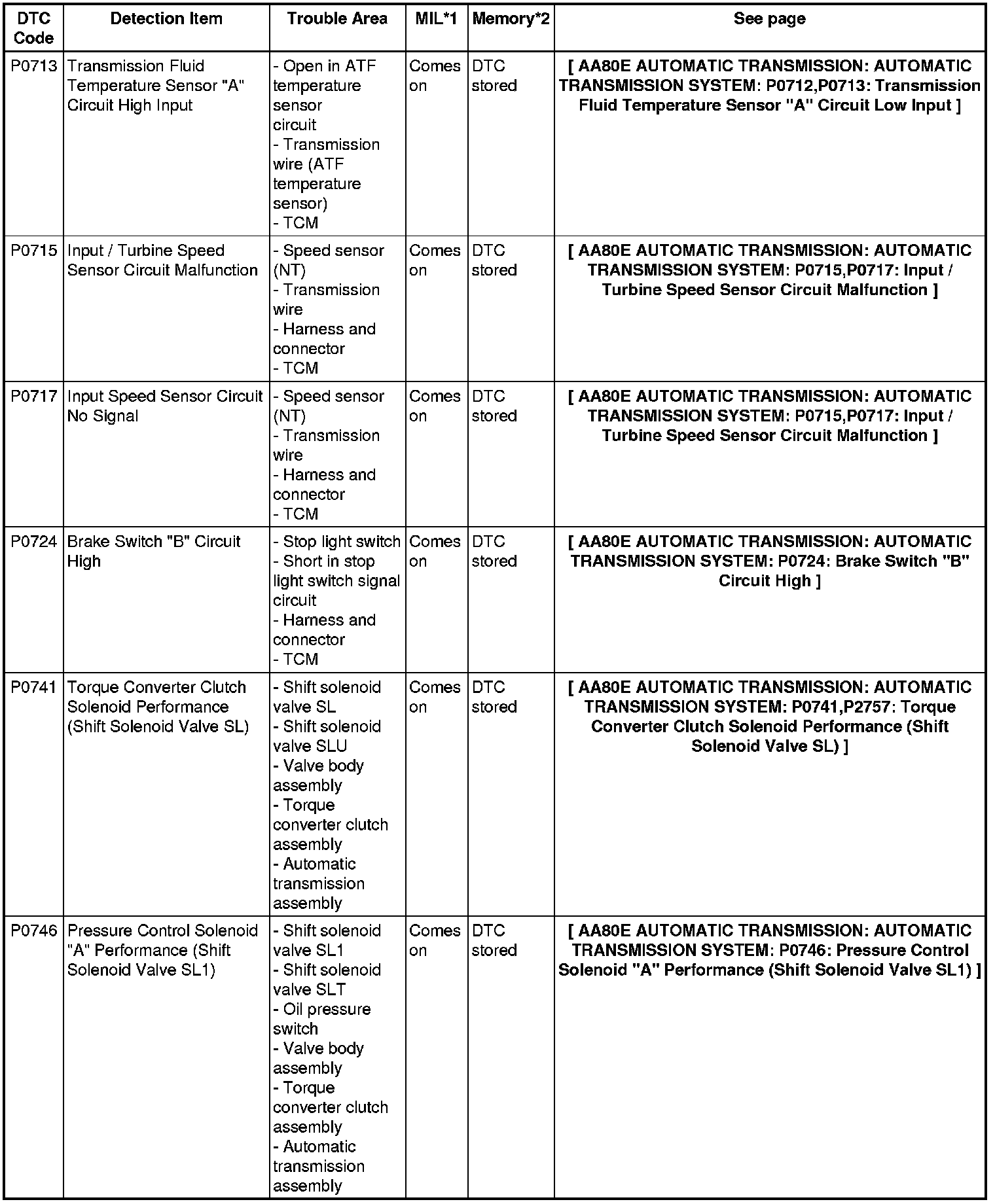

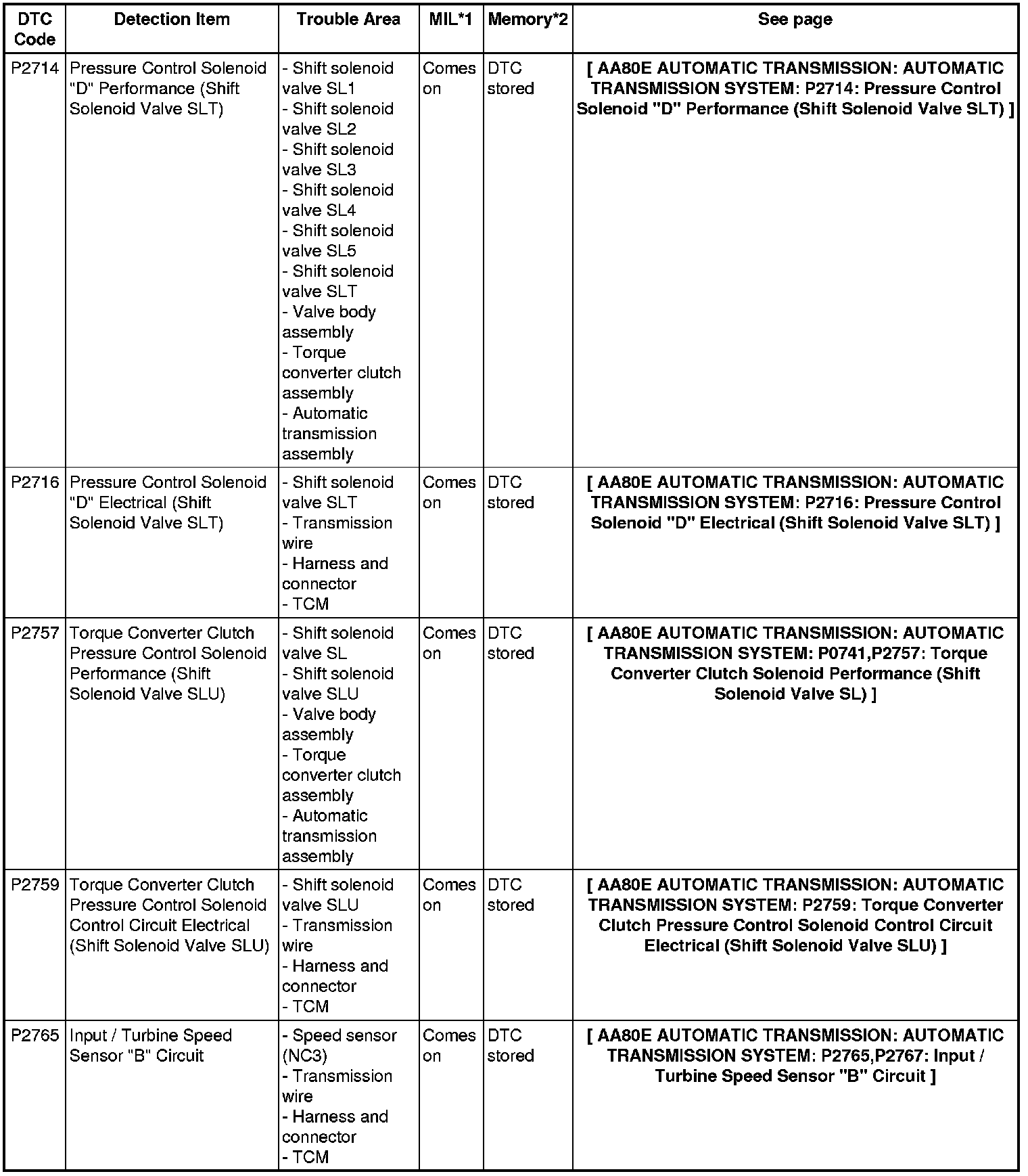

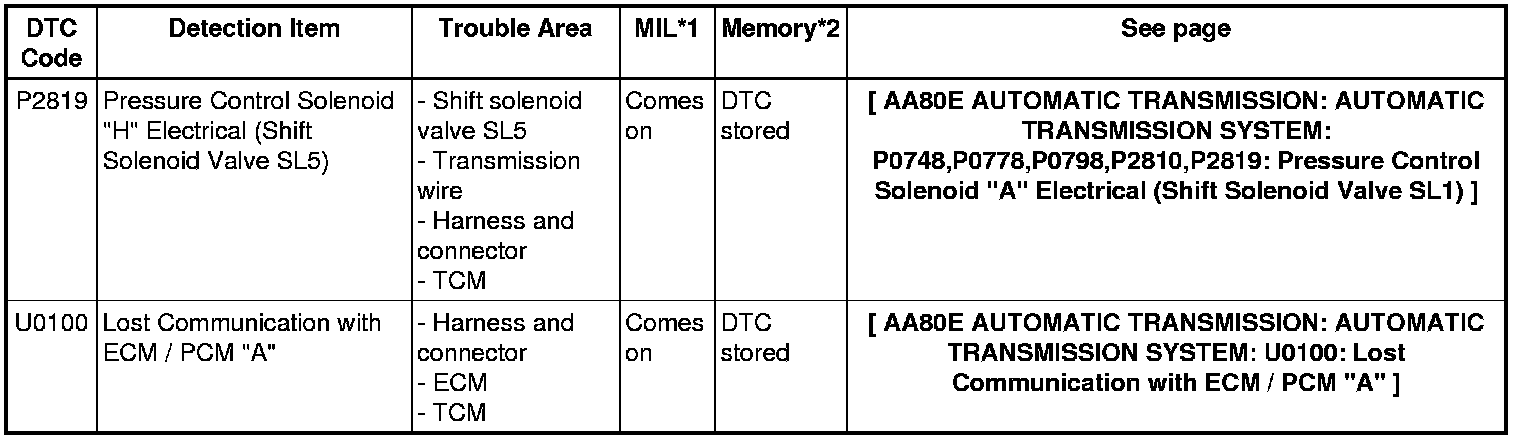

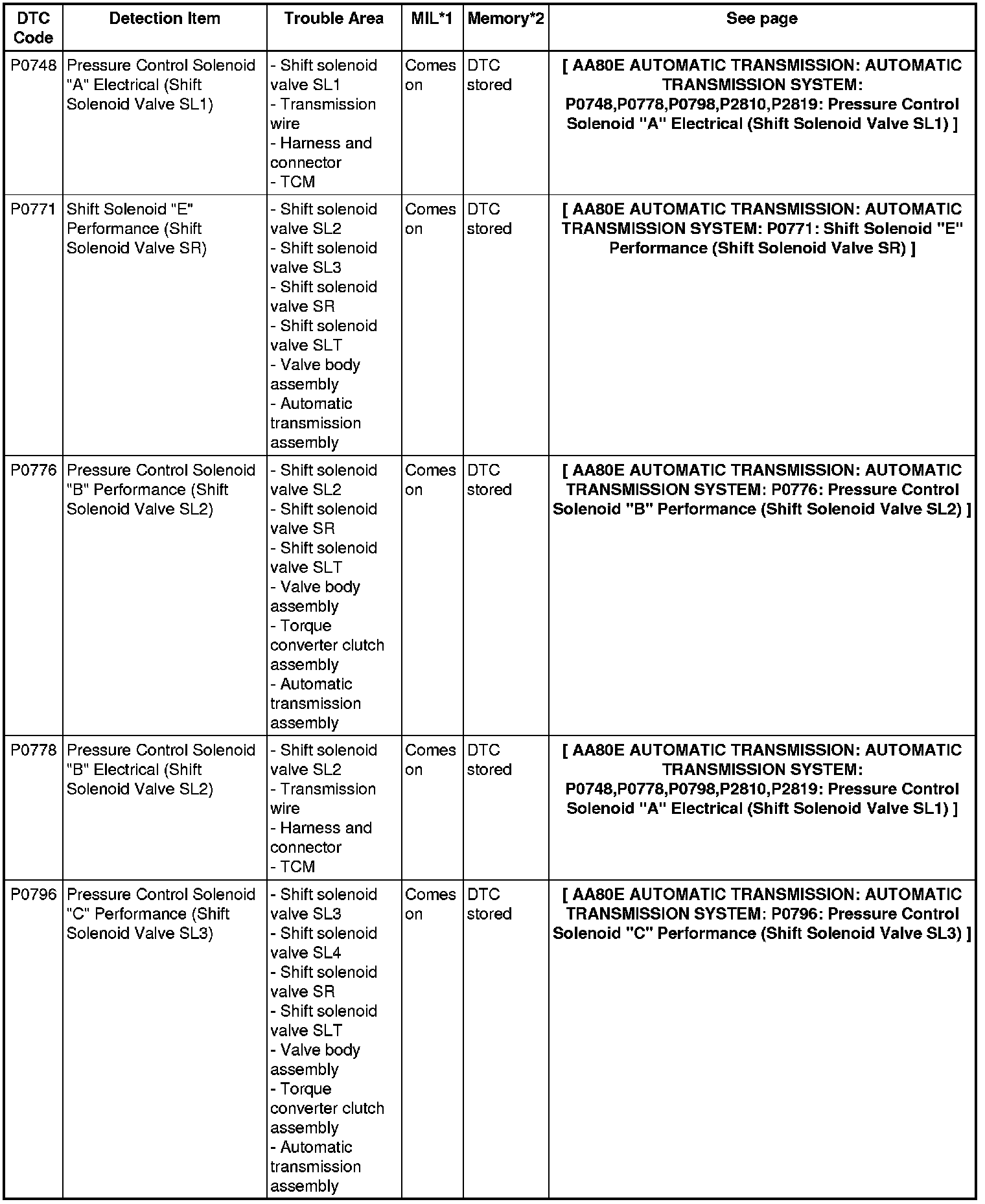

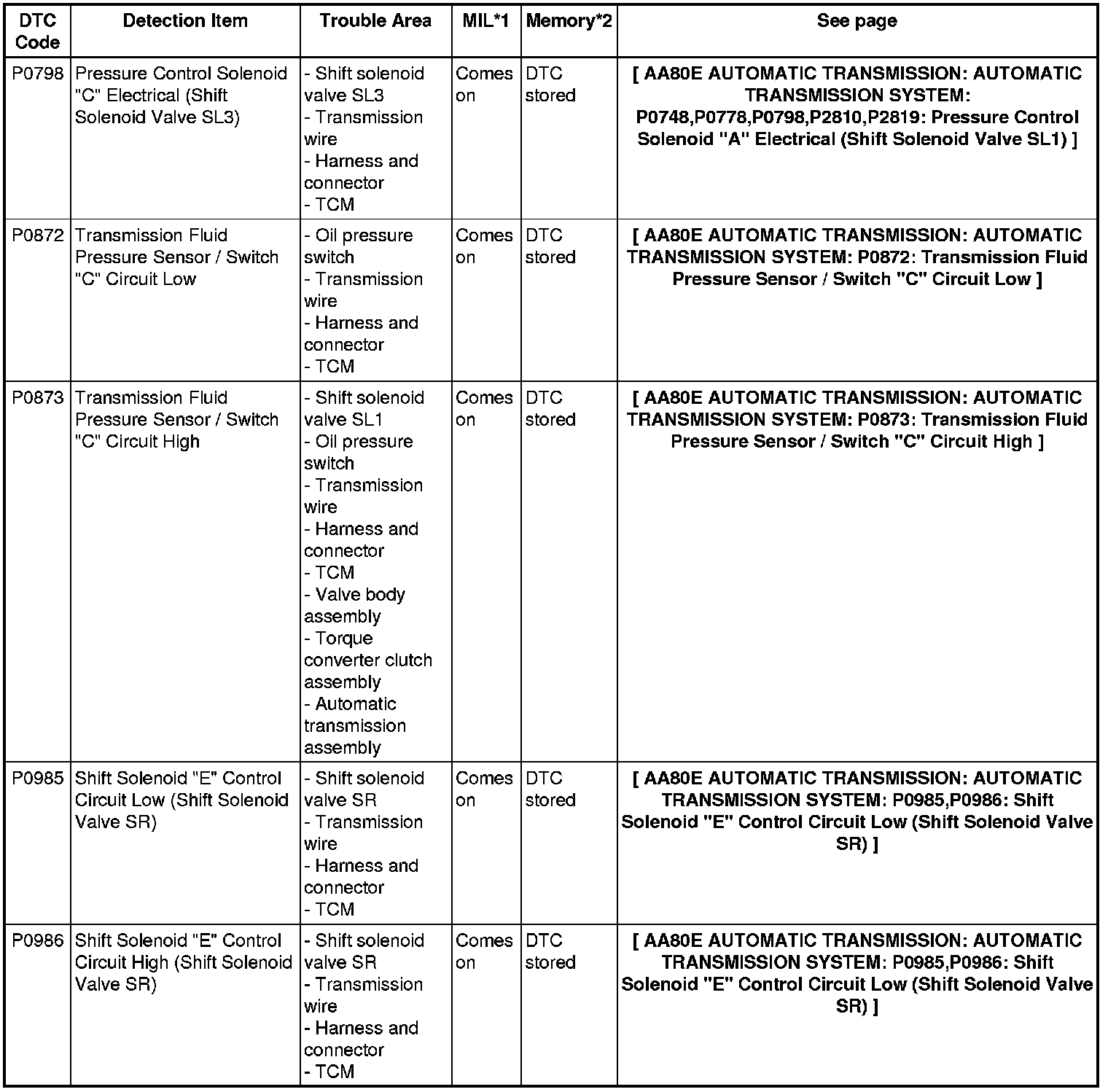

Automatic transmission system:
