THEFT DETERRENT: THEFT DETERRENT SYSTEM: B2763: Intrusion Sensor +B Circuit Malfunction (GND Short)
B2763 - Intrusion Sensor +B Circuit Malfunction (GND Short)

DESCRIPTION

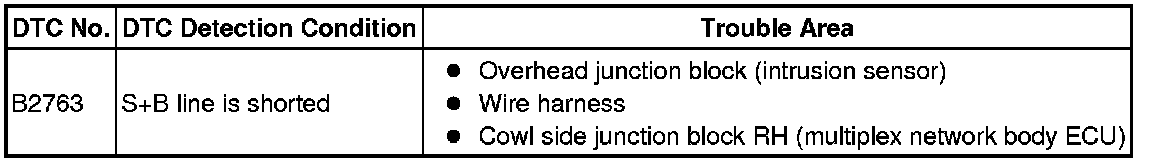

* This DTC is output when the S+B line, which is the power supply line to the sensor, is shorted.





WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS AND CONNECTOR (OVERHEAD JUNCTION BLOCK (INTRUSION SENSOR) - MULTIPLEX NETWORK BODY ECU AND BODY GROUND)





(a) Disconnect the W8 junction block connector.

(b) Disconnect the K68 ECU connector.

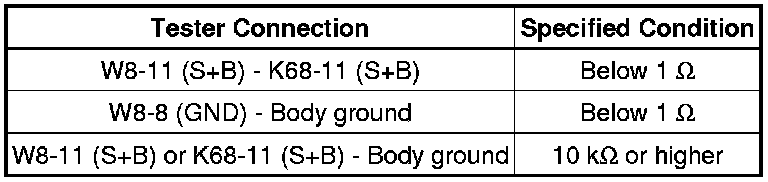

(c) Measure the resistance of the wire harness side connectors.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. REPLACE OVERHEAD JUNCTION BLOCK (INTRUSION SENSOR)

(a) Replace the overhead junction block (intrusion sensor).

NEXT -- Continue to next step.

3. CHECK FOR DTCS

(a) Set the theft deterrent system and check if the same DTC is not output Theft Deterrent System.

OK:

DTC B2763 is not output.

NG -- REPLACE COWL SIDE JUNCTION BLOCK RH (MULTIPLEX NETWORK BODY ECU)

OK -- END (OVERHEAD JUNCTION BLOCK (INTRUSION SENSOR) WAS DEFECTIVE)
