B15BA

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: B15BA: XM Tuner Malfunction
B15BA - XM Tuner Malfunction

DESCRIPTION

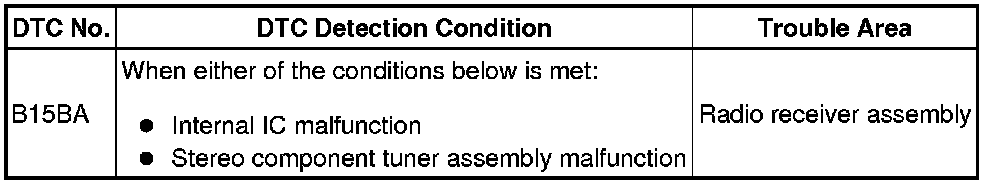

This DTC is stored when a malfunction occurs in the radio receiver assembly.





INSPECTION PROCEDURE

NOTICE:
After replacing the radio receiver assembly of vehicles subscribed to pay-type satellite radio broadcasts, registration of the XM radio ID is necessary.

PROCEDURE

1. CHECK DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTC is output.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
