B15A3

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: B15A3: Stereo Component Amplifier Malfunction
B15A3 - Stereo Component Amplifier Malfunction

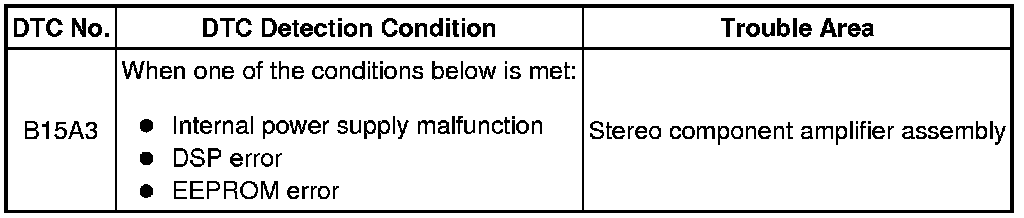

DESCRIPTION

This DTC is stored when a malfunction occurs in the stereo component amplifier assembly.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTC is output.

NG -- REPLACE STEREO COMPONENT AMPLIFIER ASSEMBLY Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
