Electro Multi Vision System

AUDIO / VISUAL: ELECTRO MULTI VISION SYSTEM: B15A0: LAN Master Malfunction
B15A0 - LAN Master Malfunction

DESCRIPTION

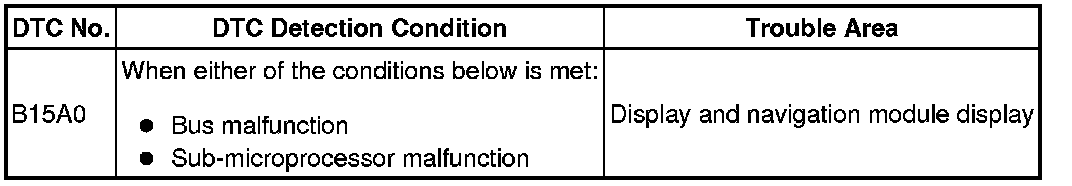

This DTC is stored when a malfunction occurs in the display and navigation module display.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTCs are output.

NG -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
