Windshield Washer Spray Nozzle: Testing and Inspection

WIPER AND WASHER: WASHER NOZZLE: ON-VEHICLE INSPECTION

1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

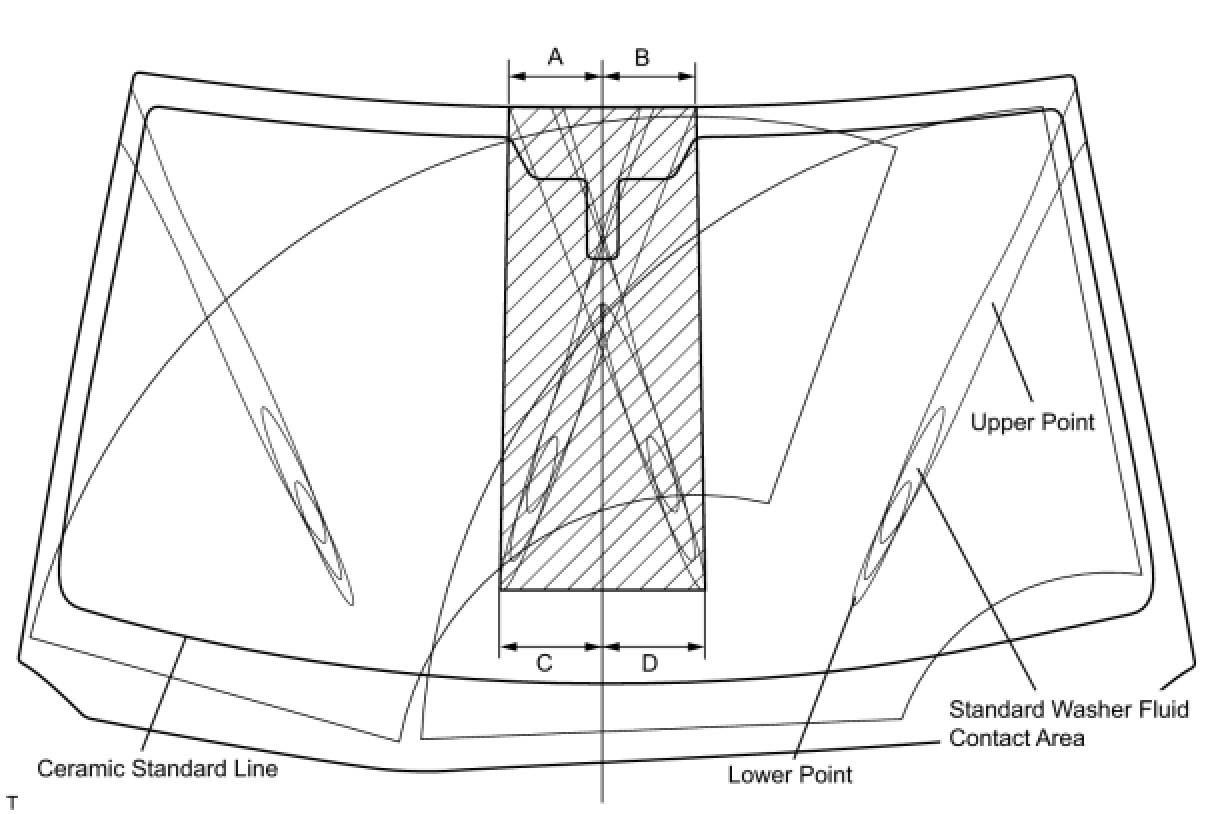

(a) With the engine running, check that the center stream of washer fluid sprays on the windshield within the hatched areas shown in the illustration.

Standard:

Center stream of washer fluid sprays on windshield properly.

If the result is not as specified, replace the washer nozzle.

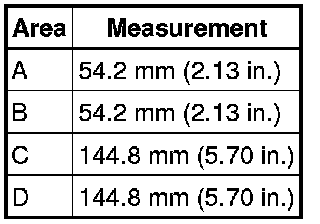

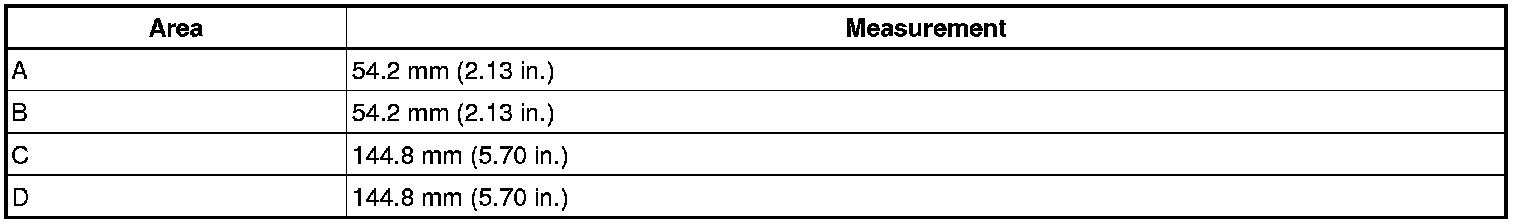

Specification:
