Problem Symptoms Table
UF1AE TRANSFER: FOUR WHEEL DRIVE CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE
HINT

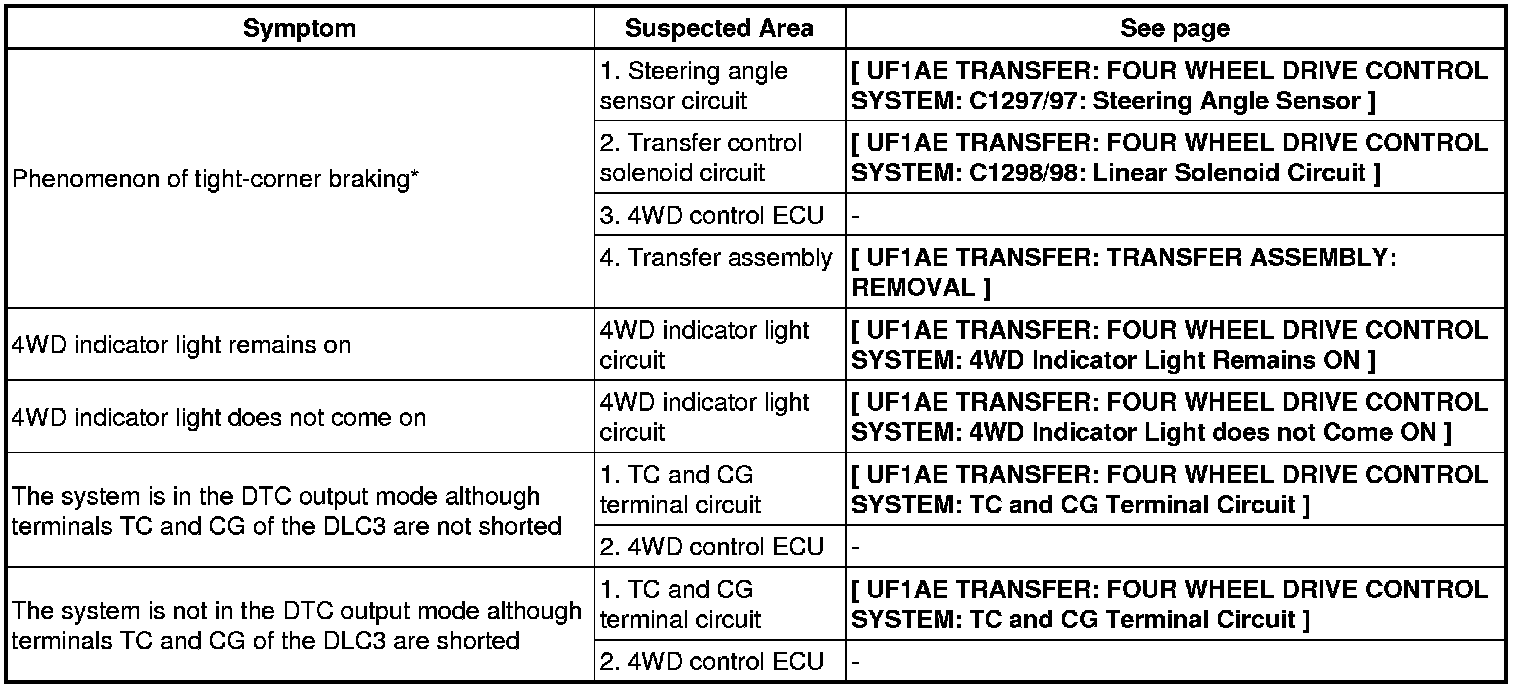

If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table below and proceed to the relevant troubleshooting page.
FOUR WHEELS DRIVE CONTROL SYSTEM
HINT
* Phenomenon of tight-corner braking
When driving 4-wheel drive mode, the vehicle is hard to turn, as if the brakes were applied, due to the rotational difference between the front and rear tires while turning.
