Home >> Lexus >> 2011 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Service and Repair >> Removal and Replacement >> Transfer Case Assembly >> Components

Components

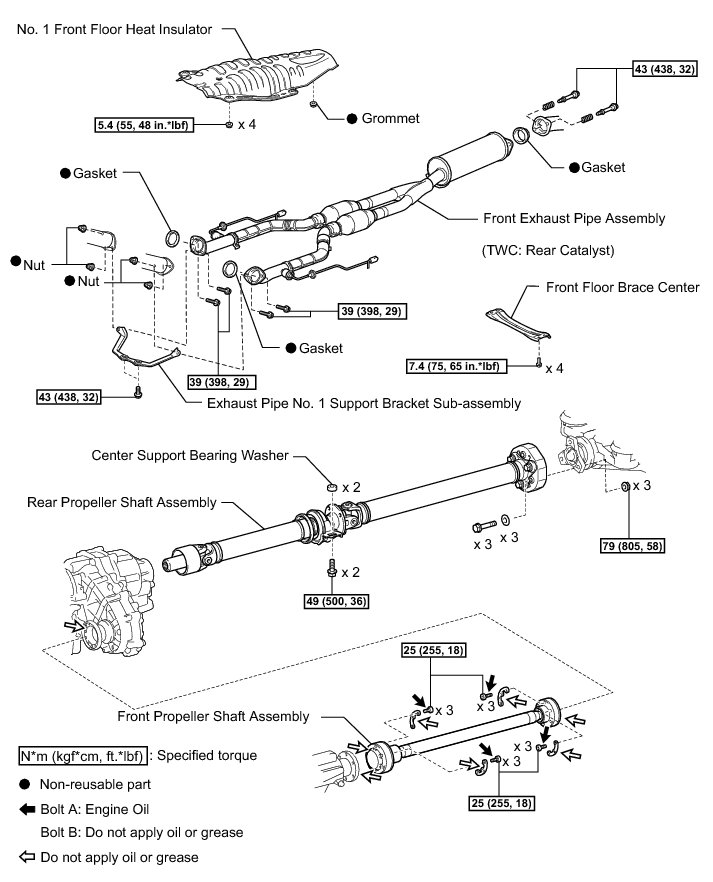

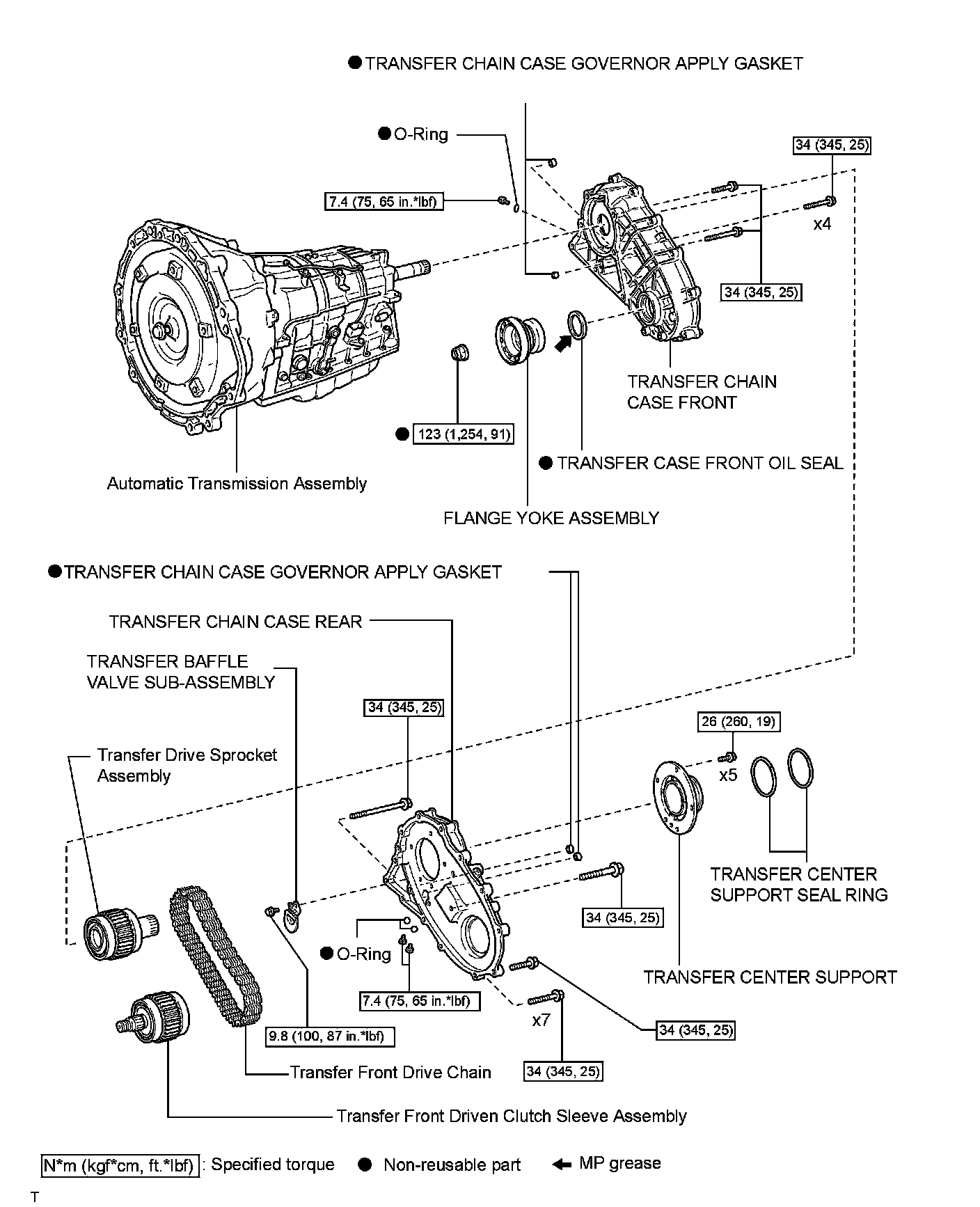

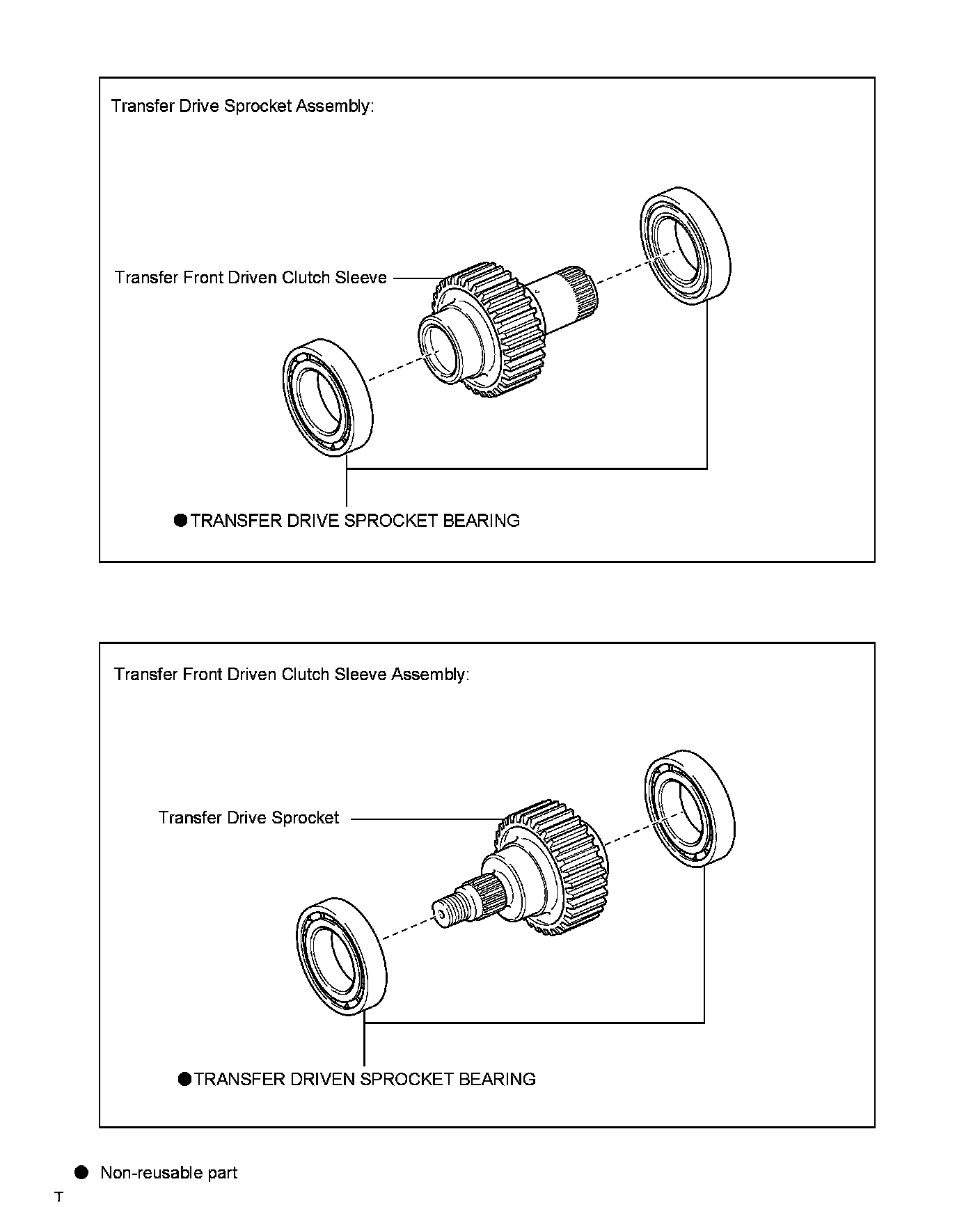

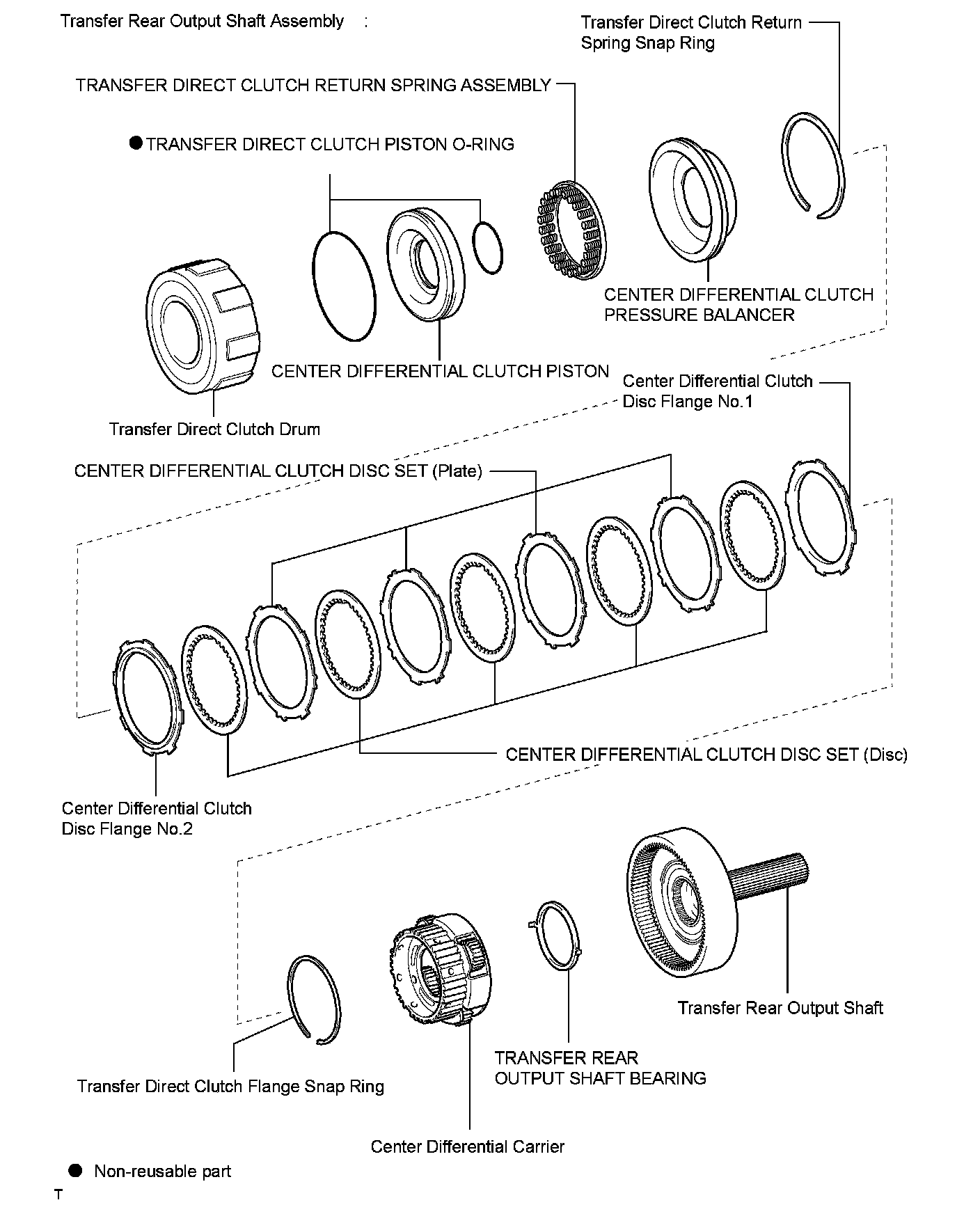

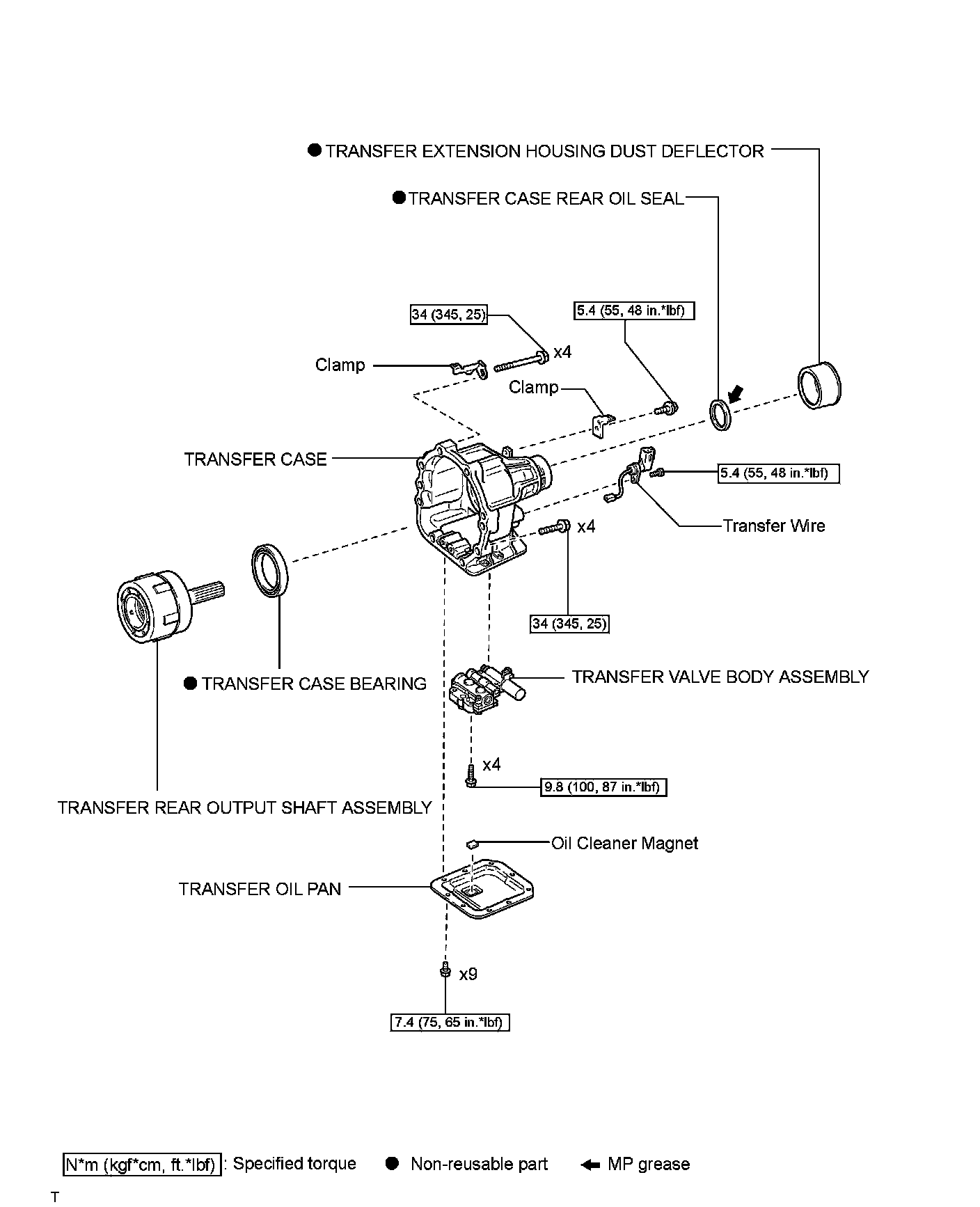

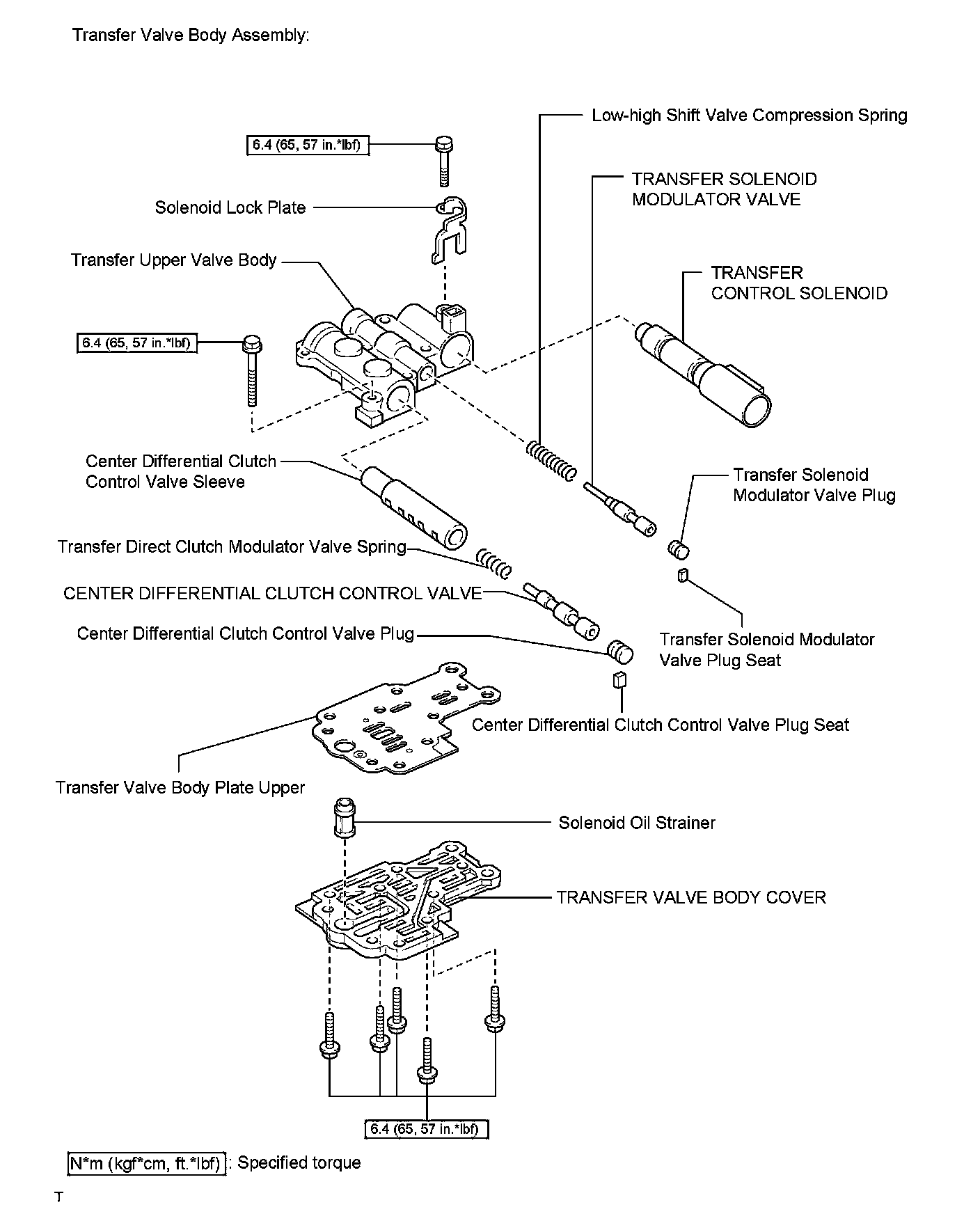

UF1AE TRANSFER: TRANSFER ASSEMBLY: COMPONENTS
