Replacement

UF1AE TRANSFER: TRANSFER CASE REAR OIL SEAL: REPLACEMENT

1. DRAIN AUTOMATIC TRANSMISSION FLUID Removal

2. REMOVE FRONT EXHAUST PIPE ASSEMBLY

Removal

3. REMOVE REAR PROPELLER SHAFT ASSEMBLY

Removal

4. REMOVE TRANSFER CASE REAR OIL SEAL

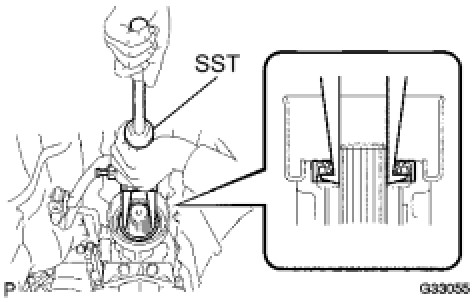

(a) Using SST, remove the oil seal.





SST : 09308-00010

5. INSTALL TRANSFER CASE REAR OIL SEAL

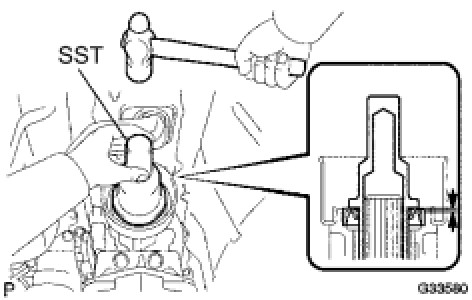

(a) Using SST and a hammer, install a new oil seal.





SST : 09325-40010

Oil seal drive in depth:

2.3 to 2.7 mm (0.091 to 0.106 in.)

(b) Apply MP grease to the oil seal lip.

6. INSTALL REAR PROPELLER SHAFT ASSEMBLY

Installation

7. INSTALL FRONT EXHAUST PIPE ASSEMBLY

Installation

8. ADD AUTOMATIC TRANSMISSION FLUID Installation

9. INSPECT FOR EXHAUST GAS LEAK
