Drive/Propeller Shafts, Bearings and Joints: Specifications





SERVICE SPECIFICATIONS: PROPELLER SHAFT: TORQUE SPECIFICATIONS

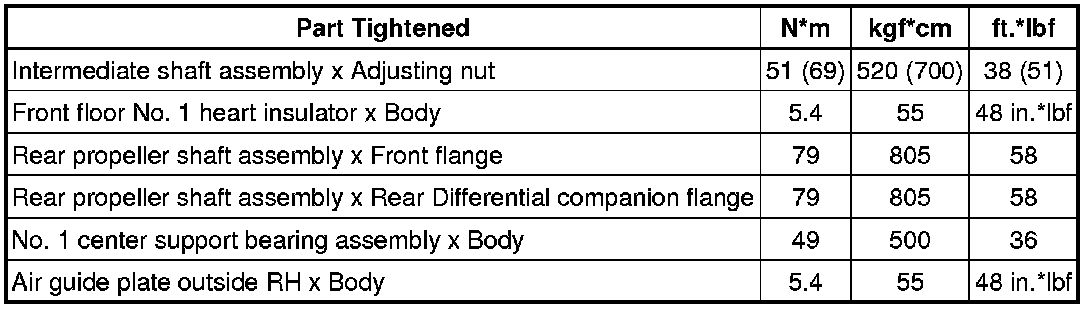

for 4WD

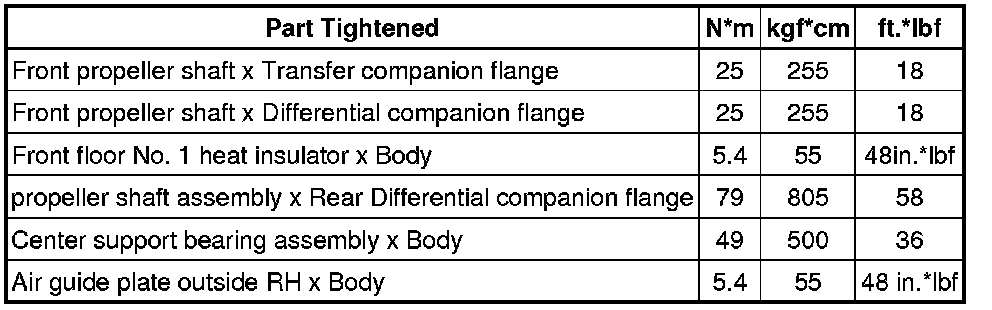

for 2WD





( ) For use without SST
