Differential Carrier Assembly
>>
Components
Components

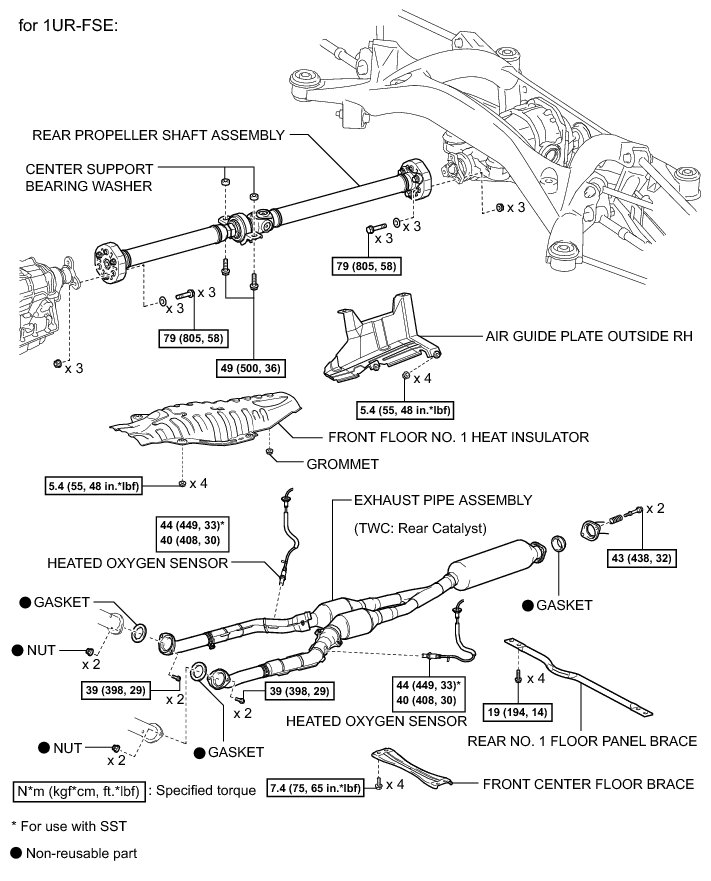

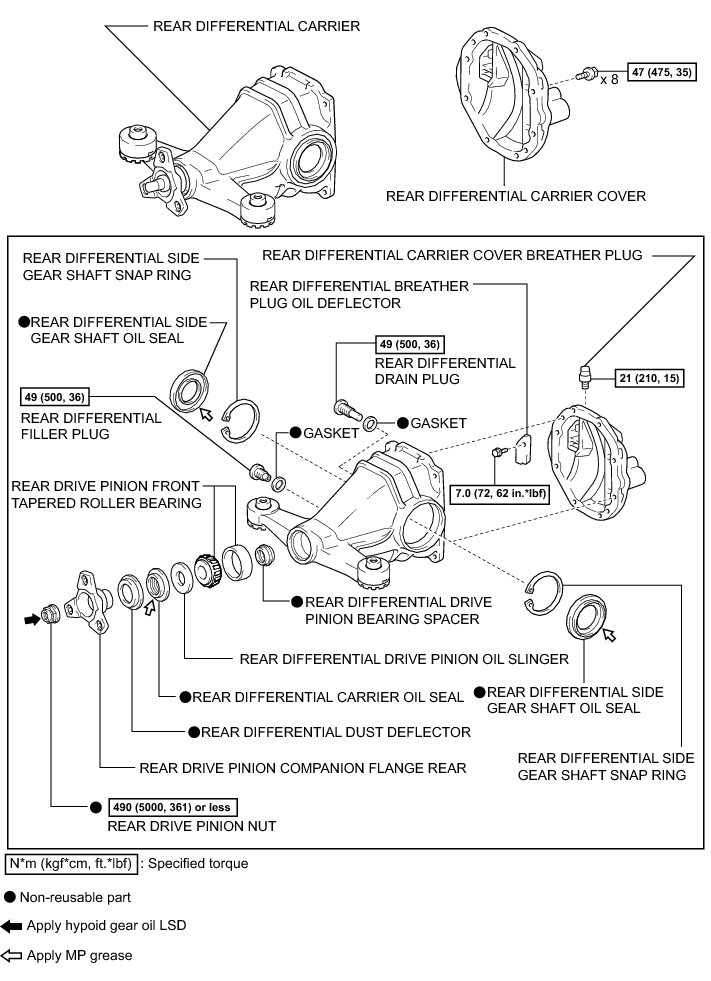

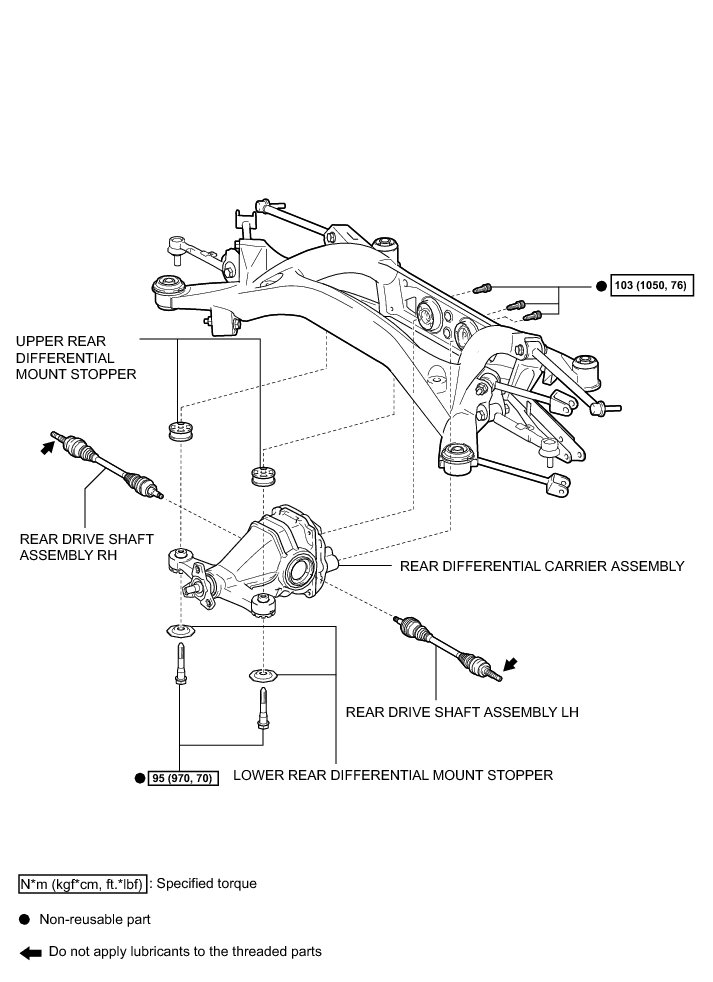

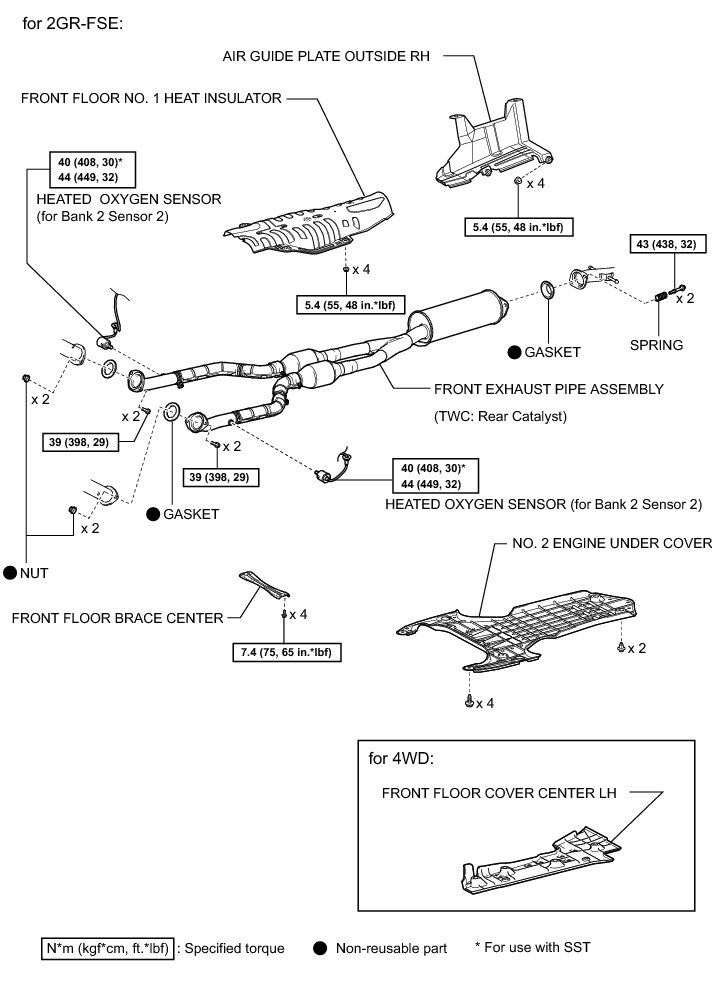

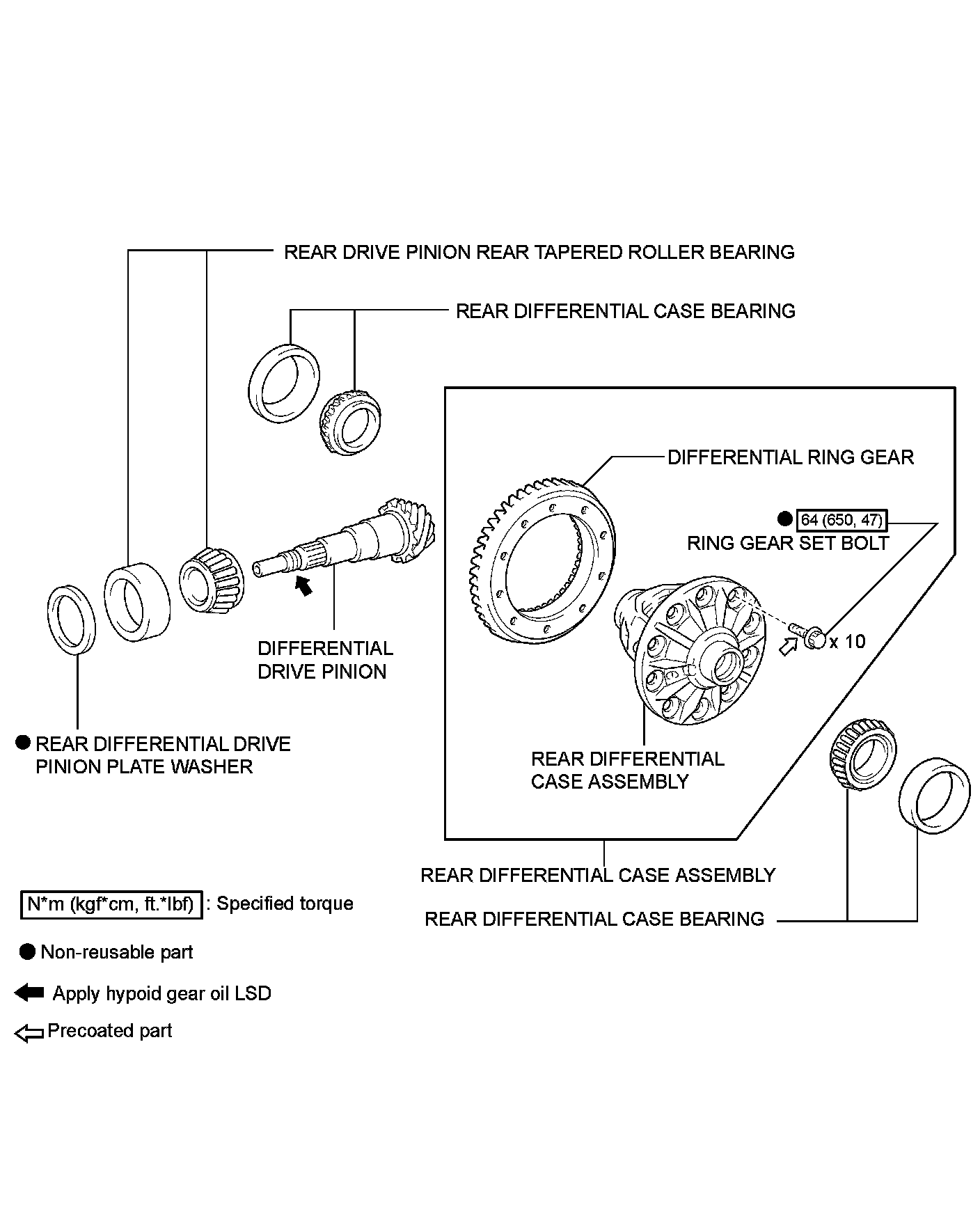

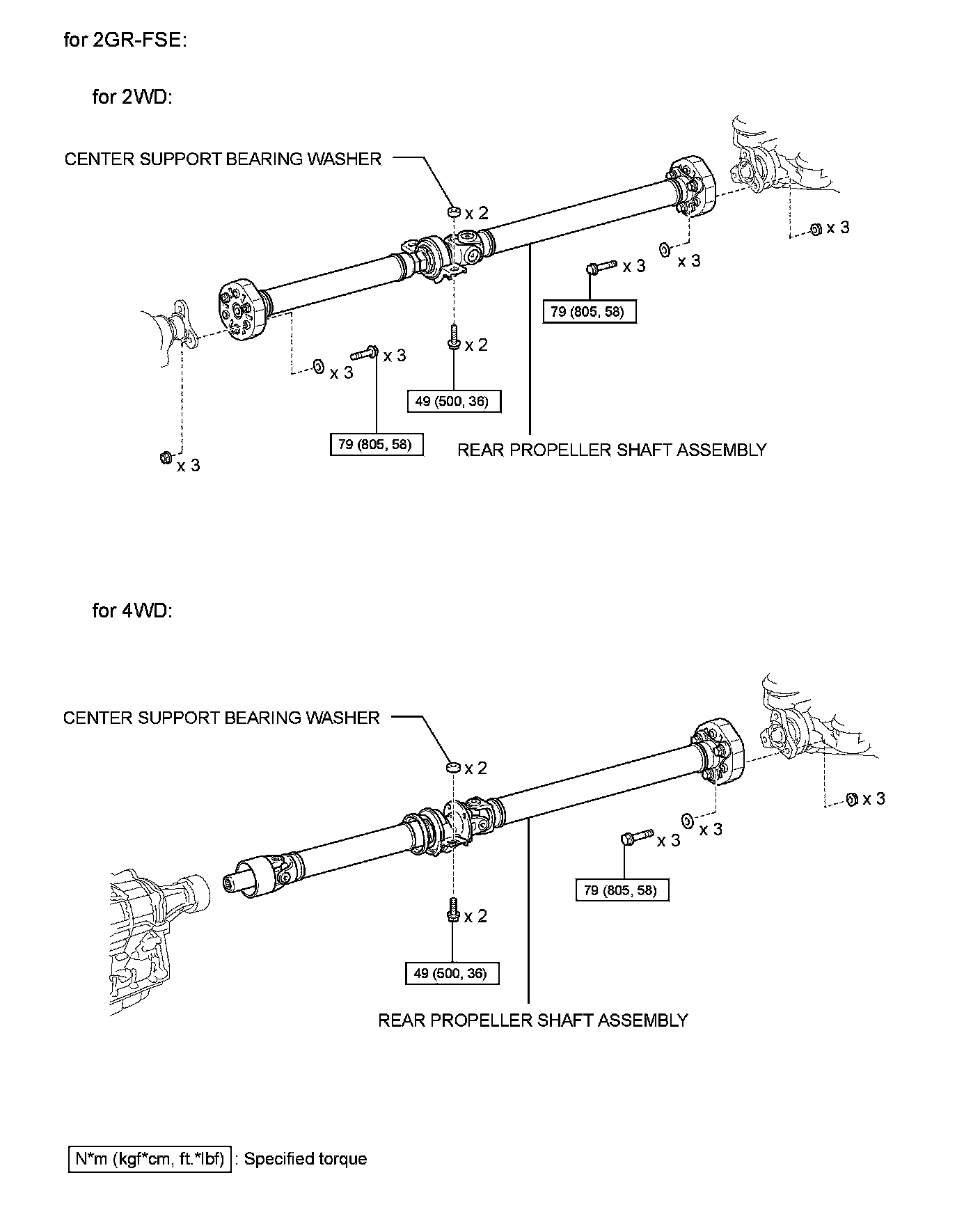

DIFFERENTIAL: DIFFERENTIAL CARRIER ASSEMBLY: COMPONENTS
