A760H Automatic Transmission





A760H AUTOMATIC TRANSMISSION: TRANSMISSION WIRE: INSPECTION

1. INSPECT TRANSMISSION WIRE

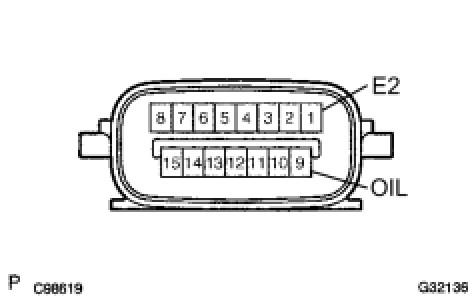

(a) Using an ohmmeter, measure the resistance between the terminals.

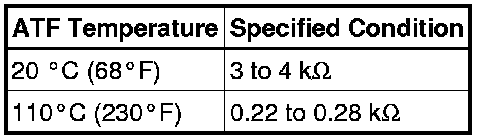

Standard resistance:
