A760E Automatic Transmission





A760E AUTOMATIC TRANSMISSION: TRANSMISSION WIRE: INSPECTION

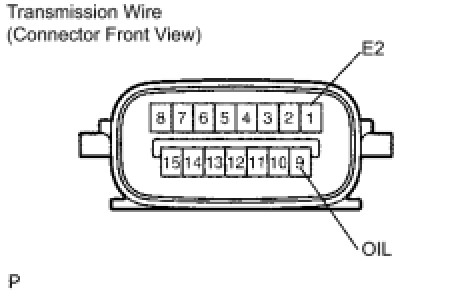

1. INSPECT TRANSMISSION WIRE (ATF TEMPERATURE SENSOR)

(a) Using an ohmmeter, measure the resistance between the terminals.

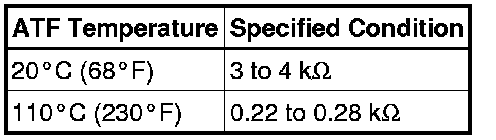

Standard resistance
