Shift Solenoid Valve

A760H AUTOMATIC TRANSMISSION: SHIFT SOLENOID VALVE: INSPECTION

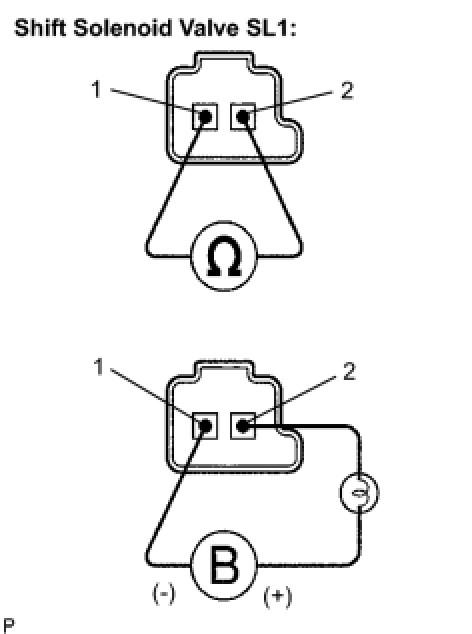

1. INSPECT SHIFT SOLENOID VALVE (SL1)

(a) Measure the resistance according to the value(s) in the table below.

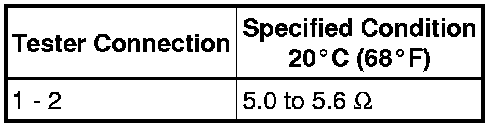

Standard resistance:





(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.

OK:

The solenoid makes an operating noise.

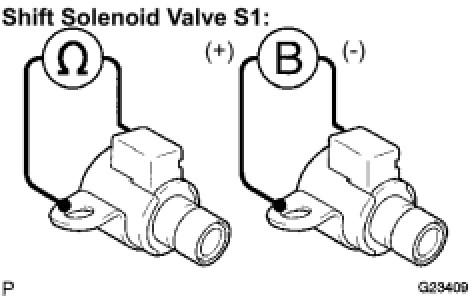

2. INSPECT SHIFT SOLENOID VALVE (S1)

(a) Measure the resistance according to the value(s) in the table below.

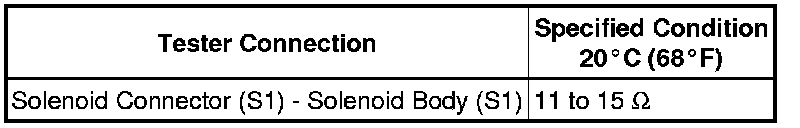

Standard resistance:





(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.

OK:

The solenoid makes an operating noise.

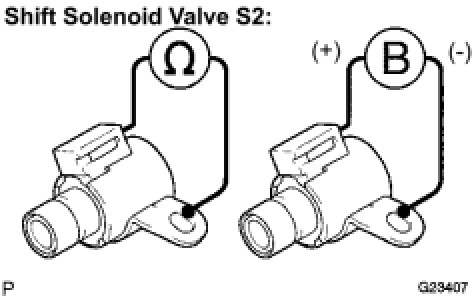

3. INSPECT SHIFT SOLENOID VALVE (S2)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.

OK:

The solenoid makes an operating noise.

4. INSPECT SHIFT SOLENOID VALVE (S3)

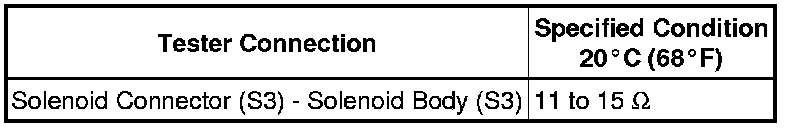

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.

OK:

The solenoid makes an operating noise.

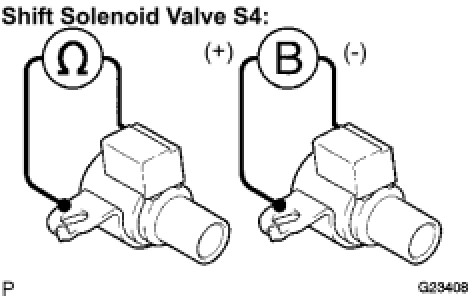

5. INSPECT SHIFT SOLENOID VALVE (S4)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.

OK:

The solenoid makes an operating noise.

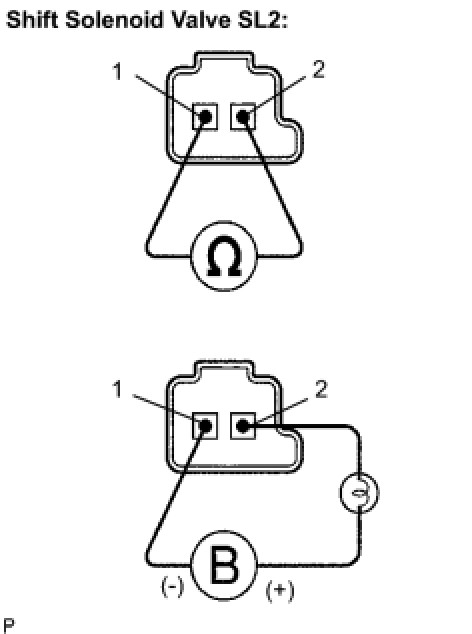

6. INSPECT SHIFT SOLENOID VALVE (SL2)

(a) Measure the resistance according to the value(s) in the table below:





Standard resistance:





(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.

OK:

The solenoid makes an operating noise.

7. INSPECT SHIFT SOLENOID VALVE (SR)

(a) Measure the resistance according to the value(s) in the table below.

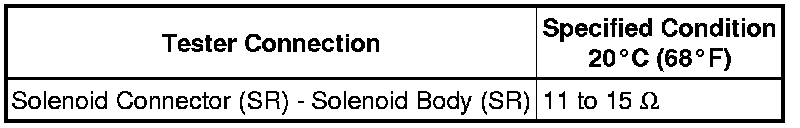

Standard resistance:





(b) Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.

OK:

The solenoid makes an operating noise.

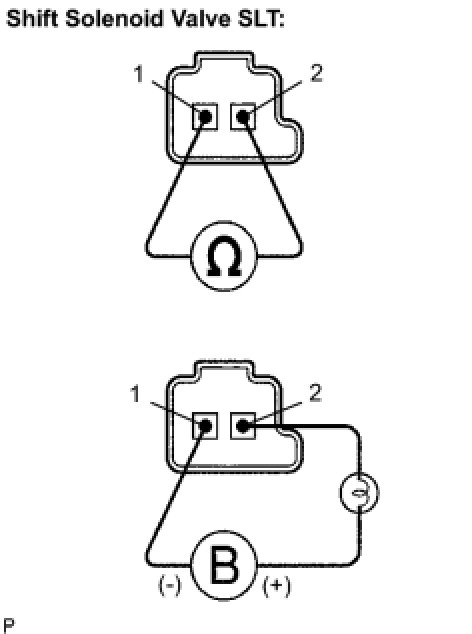

8. INSPECT SHIFT SOLENOID VALVE (SLT)

(a) Measure the resistance according to the value(s) in the table below:





Standard resistance:





(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.

OK:

The solenoid makes an operating noise.

9. INSPECT SHIFT SOLENOID VALVE (SLU)

(a) Measure the resistance according to the value(s) in the table below:





Standard resistance:





(b) Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.

OK:

The solenoid makes an operating noise.
