Removal

SUSPENSION: REAR UPPER NO. 2 CONTROL ARM: REMOVAL

1. REMOVE REAR WHEEL

2. REMOVE DIFFERENTIAL NO.2 SUPPORT PROTECTOR Removal

3. SEPARATE REAR SHOCK ABSORBER WITH COIL SPRING Removal

4. REMOVE REAR UPPER NO.2 CONTROL ARM

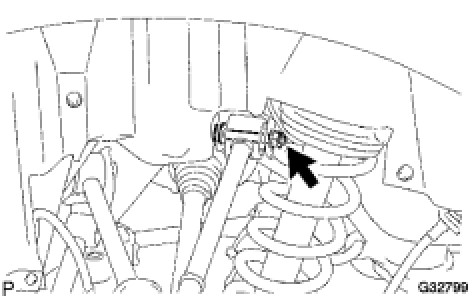

(a) Remove the nut on the axle carrier side.

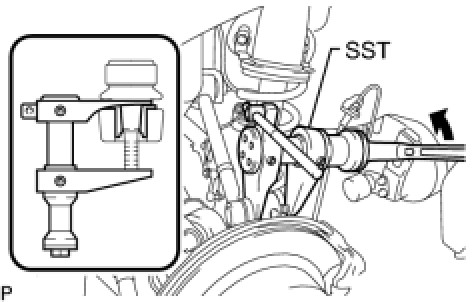

(b) Using SST, separate the rear upper No.2 control arm

NOTICE:
* Securely tie string of the SST to the vehicle.
* Do not damage the dust cover.
* Securely set the SST on the spacer of the axle carrier.
* If the spacer of the axle carrier comes off, replace the axle carrier with a new one.

(c) Remove the bolt, nut, washer, and rear upper No.2 control arm.





HINT
Push the axle carrier downward.
