SEAT BELT: REAR SEAT OUTER BELT ASSEMBLY: INSTALLATION

1. INSTALL REAR SEAT OUTER BELT ASSEMBLY

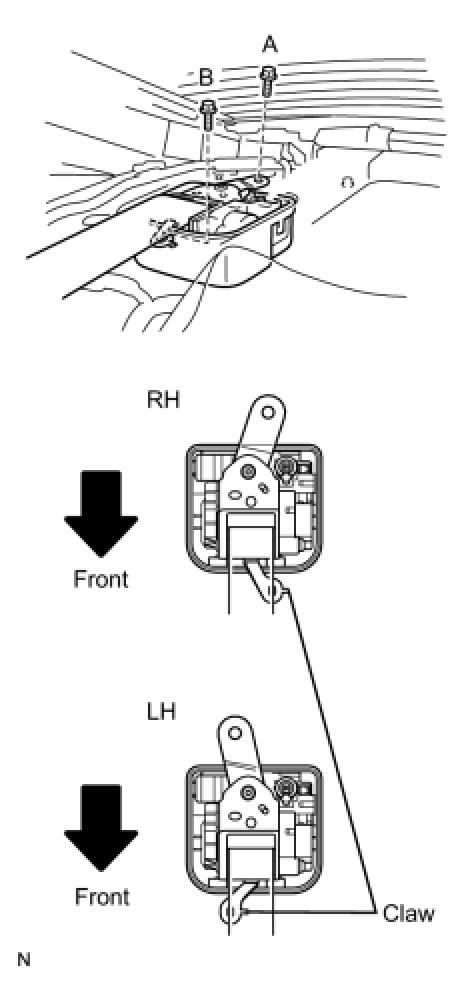

(a) Align the seat belt positioning hole with the claw and install the retractor of the seat belt with the 2 bolts. First install the rear bolt, and then install the front bolt.

Torque : 42 Nm (428 kgf-cm, 31 ft-lbf) for bolt A

Torque : 7.5 Nm (77 kgf-cm, 66 in-lbf) for bolt B

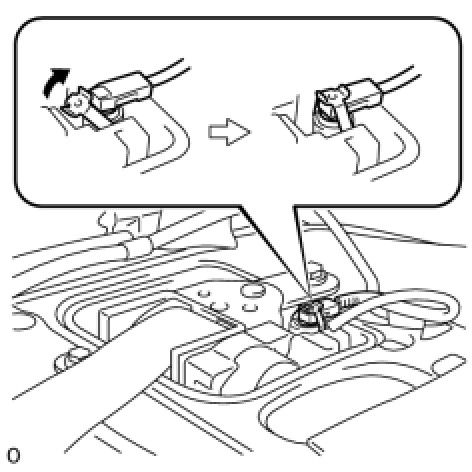

Connect the pretensioner connector, as shown in the illustration.

(b) Connect the tension reducer connector.

2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade) Installation

3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY Installation

4. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH Installation

5. INSTALL REAR SEAT OUTER BELT ANCHOR Installation

6. INSTALL ROOF SIDE GARNISH Installation

7. INSTALL REAR SEAT SIDE GARNISH Installation

8. INSTALL REAR DOOR SCUFF PLATE Installation

9. INSTALL REAR SEATBACK ASSEMBLY Installation

10. INSTALL REAR SEAT HEADREST ASSEMBLY RH AND LH

11. INSTALL REAR SEAT CUSHION ASSEMBLY Installation

12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

13. PERFORM INITIALIZATION

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

(a) Perform initialization Repair Instruction - Initialization.
