Installation

SEAT BELT: CHILD RESTRAINT SEAT TETHER ANCHOR: INSTALLATION

1. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET

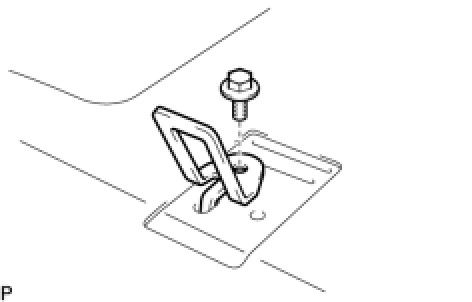

(a) Align the claw with the positioning hole and install the anchor bracket with the bolt.

Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade) Installation

3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY Installation

4. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER

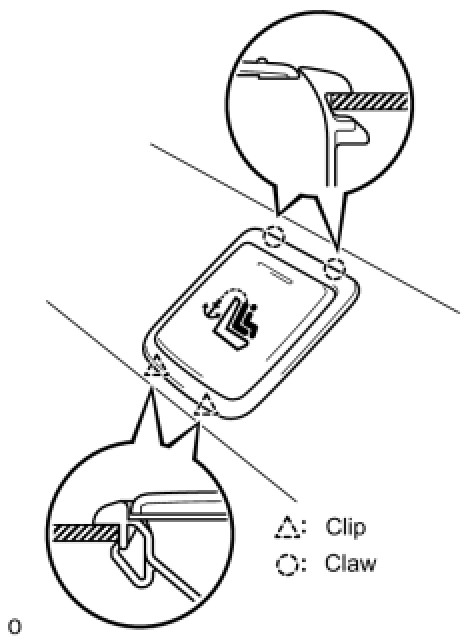

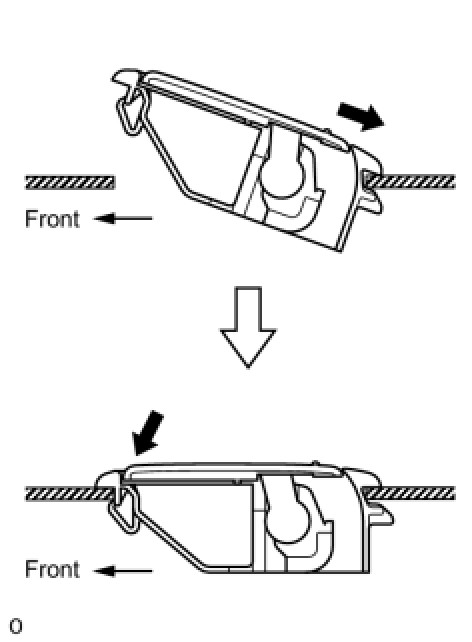

(a) Install the tether anchor cover to the package tray trim panel as shown in the illustration.

5. INSTALL ROOF SIDE GARNISH INNER Installation

6. INSTALL REAR SEAT SIDE GARNISH Installation

7. INSTALL REAR DOOR SCUFF PLATE Installation

8. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH Installation

9. INSTALL REAR SEAT BELT OUTER ANCHOR Installation

10. INSTALL REAR SEATBACK ASSEMBLY Installation

11. INSTALL REAR SEAT HEADREST ASSEMBLY RH & LH

12. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
