Center Mounted Brake Lamp: Testing and Inspection

LIGHTING: HIGH MOUNTED STOP LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

1. CHECK HIGH MOUNTED STOP LIGHT ASSEMBLY

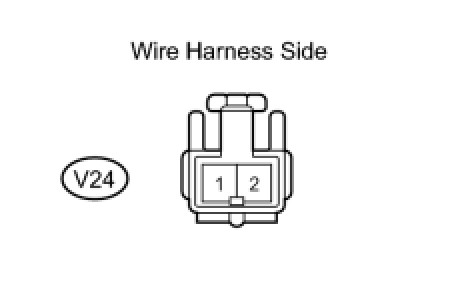

(a) Disconnect the V24 connector.

(b) Connect the voltmeter's positive (+) lead to terminal 1 and the negative (-) lead to terminal 2.

(c) Measure the voltage of the connector.

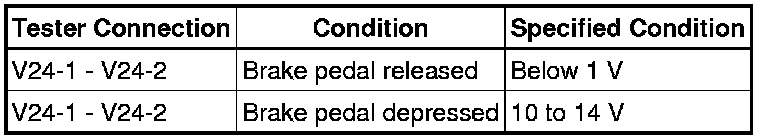

Standard voltage:





If the result is not as specified, replace the light assembly.
