Removal

OTHER SYSTEM: CIGARETTE LIGHTER: REMOVAL

1. REMOVE FRONT CONSOLE UPPER PANEL GARNISH Removal

2. REMOVE CONSOLE UPPER PANEL ASSEMBLY Removal

3. REMOVE CIGARETTE LIGHTER ASSEMBLY

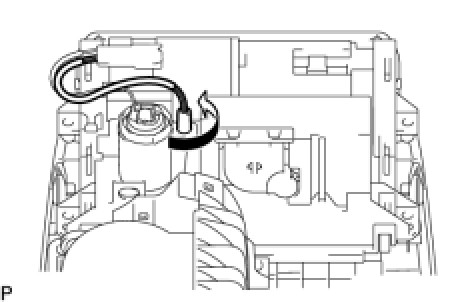

Rotate the socket body in the direction indicated by the arrow mark, and remove the socket body from the cigarette lighter.

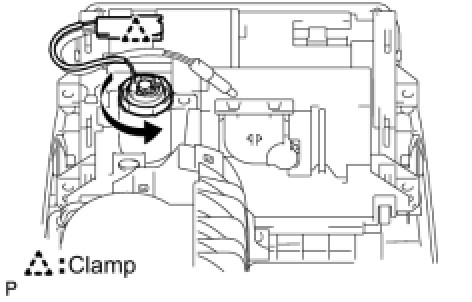

Rotate the ring nut in the direction indicated by the arrow mark, and remove the cigarette lighter from the console panel.
