Disassembly

AIR CONDITIONING: COMPRESSOR (for 2GR-FSE 4WD): DISASSEMBLY

1. REMOVE COOLER BRACKET





(a) Detach the clamp.

(b) Remove the screw and the cooler bracket.

2. REMOVE MAGNET CLUTCH ASSEMBLY





(a) Clamp the cooler compressor in a vise.

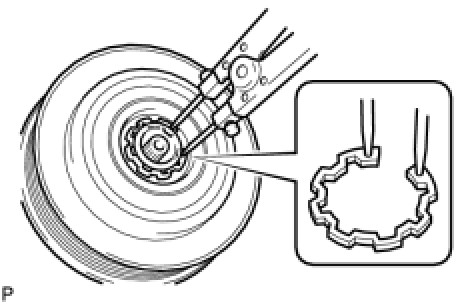

(b) Using SST, hold the magnet clutch hub.

SST : 09985-00260

(c) Remove the bolt, magnet clutch hub and magnet clutch washer(s).

HINT
There is no set number of magnet clutch washers since they are used for adjusting.

(d) Using a snap ring expander, remove the snap ring and the magnet clutch rotor.





NOTICE:
Do not damage the seal cover of the bearing when removing the snap ring.

(e) Disconnect the connector.

(f) Using a snap ring expander, remove the snap ring and magnet clutch stator.
