Removal

AIR CONDITIONING: HEATER GLOW PLUG (for 2GR-FSE): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE V-BANK COVER Removal

3. REMOVE ENGINE REAR COVER

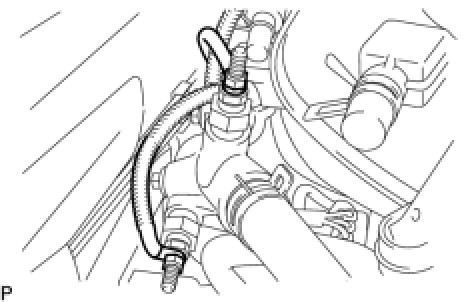

4. DISCONNECT HEATER BLOWER WIRE

(a) Remove the 2 grommets.

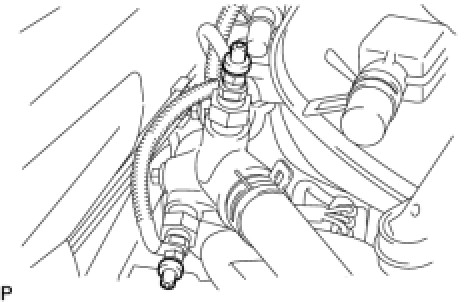

(b) Remove the 2 nuts while using your hands to make sure the terminal directions (angles) of the 2 wires do not change.





(c) Remove the 2 plate washers and disconnect the 2 wires.

HINT
Before removing the 2 plate washers and disconnecting the 2 wires, check the terminal directions (angles) of the 2 wires so that they can be reinstalled in the same direction.

(d) Remove the 2 wave washers.

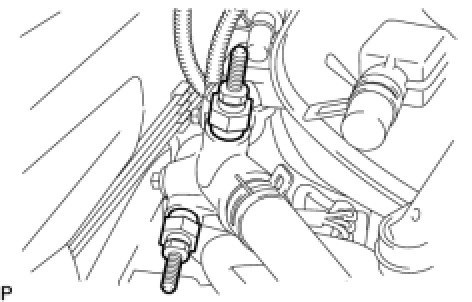

5. REMOVE WATER BY-PASS GLOW PLUG

(a) Remove the glow plug.





HINT
Collect the engine coolant in a container.
