Disassembly

2GR-FSE COOLING: RADIATOR: DISASSEMBLY

1. REMOVE RADIATOR DRAIN COCK PLUG

(a) Remove the drain plug.

(b) Remove the O-ring.

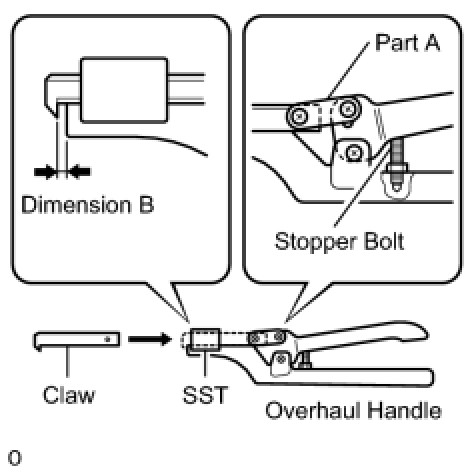

2. ASSEMBLE SST





Install the claw to part A of the overhaul handle as shown in the illustration.

SST : 09230-01010

(a) While squeezing the handle, adjust the stopper bolt so that dimension B is as specified below.

Dimension B:

0.2 to 0.3 mm (0.008 to 0.012 in.)

3. UNCAULK LOCK PLATE





Using SST to release the caulking, squeeze the handle until stopped by the stopper bolt.

SST : 09230-01010

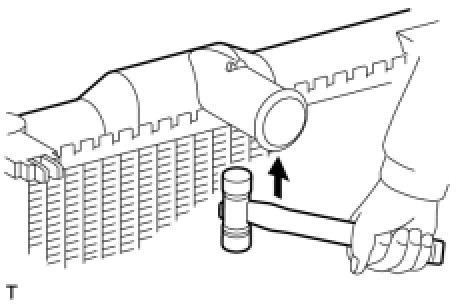

4. REMOVE RADIATOR TANK UPPER AND TANK LOWER





Lightly tap the bracket of the radiator (or radiator hose inlet or outlet) with a plastic-faced hammer and remove the tank.

(a) Remove the O-ring.
