Reassembly

PARKING BRAKE: PARKING BRAKE PEDAL: REASSEMBLY

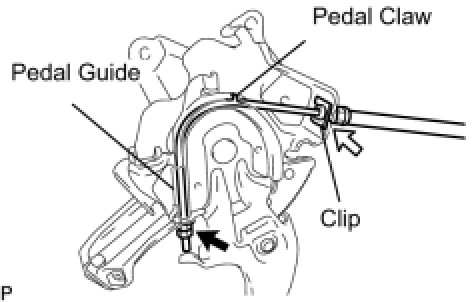

1. INSTALL PARKING BRAKE NO.1 CABLE ASSEMBLY

(a) Pass the parking brake No.1 cable assembly through the parking brake pedal and hold the cable with the clip.





(b) Pass the parking brake cable through the pedal guide. Temporarily tighten the wire adjusting No.1 nut and lock nut.

HINT
Fully tighten the wire adjusting No.1 nut and lock nut when adjusting the parking brake pedal free play.

(c) Fully bend the parking brake pedal claw.

2. INSTALL PARKING BRAKE SWITCH

(a) Install the parking brake switch with the screw.

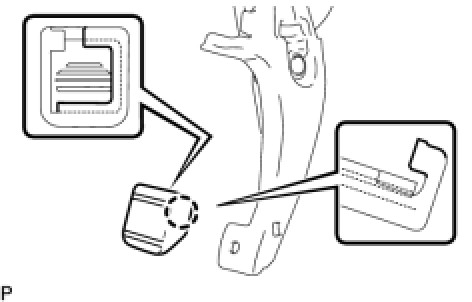

3. INSTALL PARKING PEDAL PAD

(a) Attach the claw and install the parking pedal pad on the parking brake pedal.
